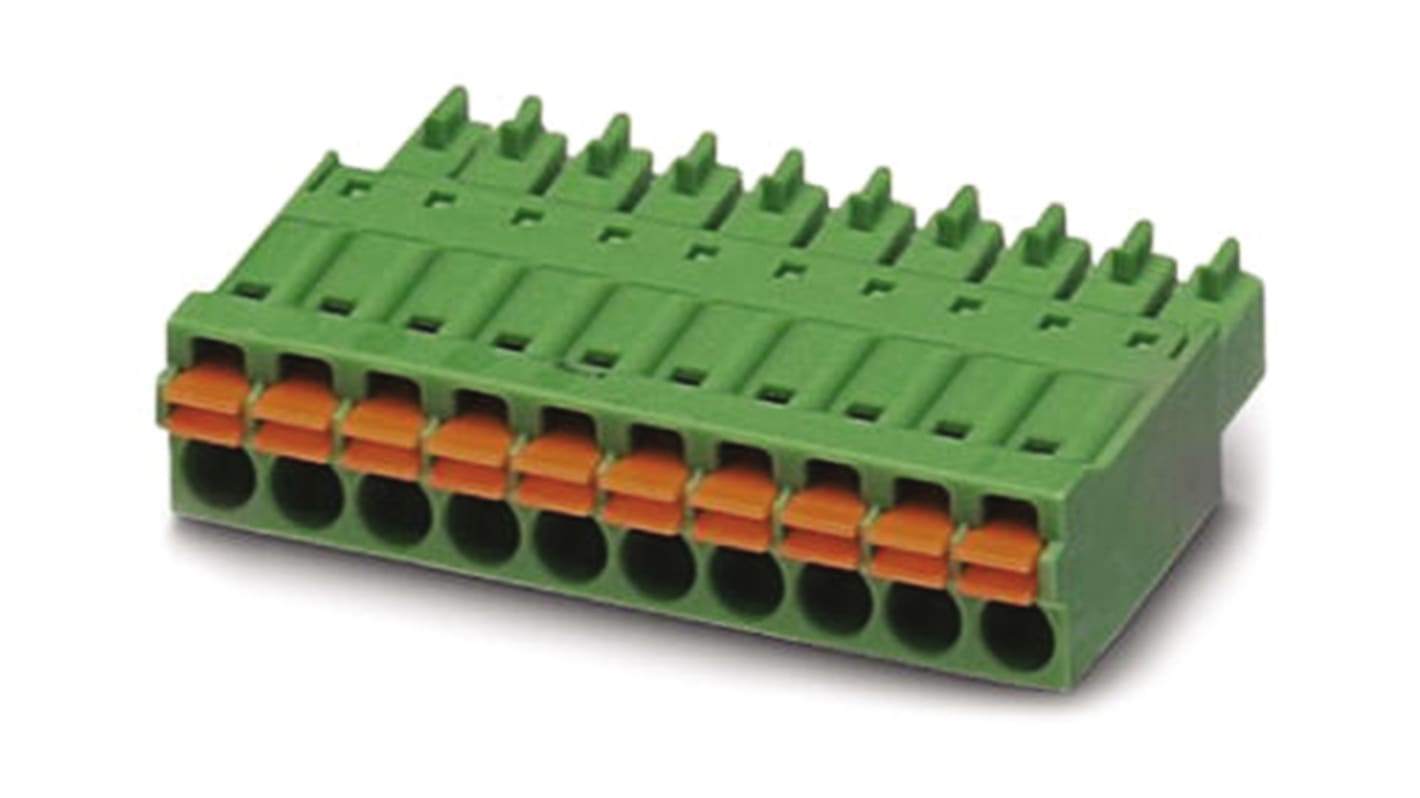

Phoenix Contact, 3.5mm Pitch, FMC 1.5/10-ST-3.5, 10 Way, , Pluggable Terminal Block, Plug, Cable Mount, Spring Cage

This 10-pin PCB (printed circuit board) connector from Phoenix Contact provides a user-friendly electrical connection point for high-powered electronics. Its straightforward design makes it simple to maintain and quick to install.
The miniature unit has a compact pitch, so it takes up a minimal amount of space on your PCB. There's also plenty of room for wiring, so connection is straightforward. Thanks to its spring-cage termination, it can accept leads without the need for specialist tools. This method also protects connections from wear and tear caused by vibration. The component's lightweight polyamide housing is halogen-free and recyclable.
This connector comes in Phoenix Contact's signature green colour, which is your assurance of a quality product. It offers a wide range of PCB packing combinations, enabling it to be used in various upper-spectrum power systems such as solar inverters, frequency inverters and variable frequency drives.

• Current rating of 8 A
• Voltage rating of 320 V
• Female plug type
• Tin material connectors
• Cable mount type
• 10 contacts
• 1 row
• Pitch of 3.5 mm
• Dimensions of 22.9 (length) x 7.8 mm (depth)
