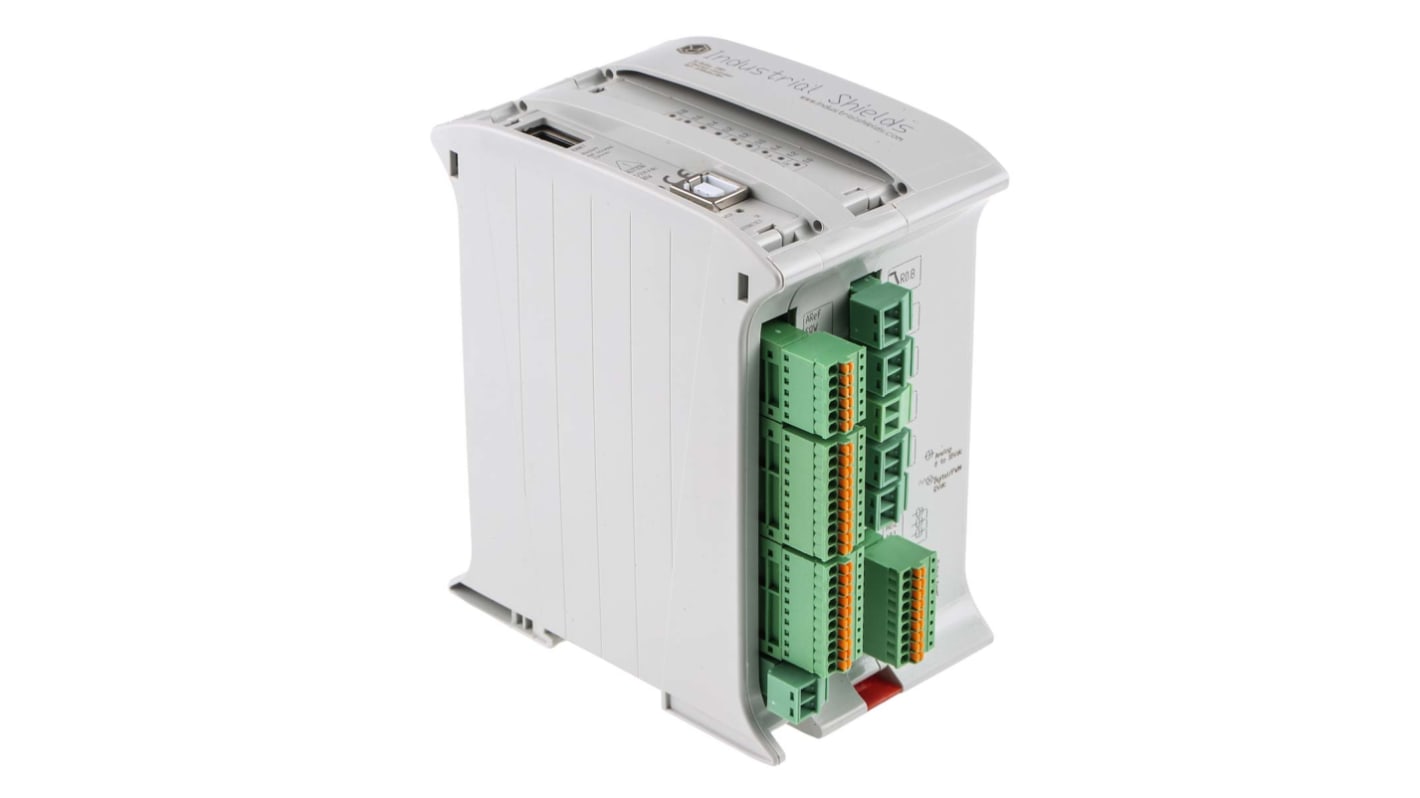

Industrial Shields M-Duino Series PLC CPU, Analogue, Digital, Relay Output, 6-Input, Analogue, Digital Input
- RS 제품 번호:
- 885-0941
- 제조사 부품 번호:
- IS.MD19.base
- 제조업체:
- Industrial Shields
단종
대체품
![Industrial Shields M-Duino Series PLC CPU for Use with Ardunio PLC, 6-Input, Digital/Analog Input](https://media.rs-online.com/t_thumb100/Y2193096-01.jpg)
Industrial Shields M-Duino Series PLC CPU for Use with Ardunio PLC, 6-Input, Digital/Analog Input
₩557,573.925
개당
RS 제품 번호: 219-3096
- RS 제품 번호:
- 885-0941
- 제조사 부품 번호:
- IS.MD19.base
- 제조업체:
- Industrial Shields
참조 문서
- Open PLC and Panel PC - Data Sheet
- Find out more on DESIGNSPARK
- Industrial Shields PLCs and Panel PCs - Brochure
- Industrial Shields - Presentation_UK
- Mduino 19R - Statement Of Conformity_CE
- M-Duino 19R PLC - User Guide
- RS OUR OFFER - Industrial Shields PLC and Panel PC
- Industrial Shields - Case Study Fortabs
제정법과 컴플라이언스
- COO (Country of Origin):
- ES
제품 세부 사항
Industrial Shields PLC CPUs
The Industrial Shields PLC has 7 inputs and 11 relay outputs Modbus networking computer interface CPU. It has a programming capacity of 256kB. M-Duino is a connectable PLC based on open-source hardware (OSH) technology. This PLC can be programmed using the Arduino IDE platform.
It is available with different input/outputs units. It is possible to get the immediate status of all parameters, data inputs and outputs of the PLC through the USB port from the computer. All the components can be configured to work as a master or slave in its master-slave connection via I2C.
It is available with different input/outputs units. It is possible to get the immediate status of all parameters, data inputs and outputs of the PLC through the USB port from the computer. All the components can be configured to work as a master or slave in its master-slave connection via I2C.
Features and Benefits
Programming via USB port
Hardware is realized with an Arduino Leonardo
Safety industrial communications
I2C communication to connect up to 127 elements
Serial port is RS232/RS485
Power supply ranges between 12VDC and 24VDC
DIN rail mounting
Operating temperature ranges between 0°C and 45°C
Communication port types are: Ethernet, I2C, RS232, RS485, SPI, TTL and USB
Hardware is realized with an Arduino Leonardo
Safety industrial communications
I2C communication to connect up to 127 elements
Serial port is RS232/RS485
Power supply ranges between 12VDC and 24VDC
DIN rail mounting
Operating temperature ranges between 0°C and 45°C
Communication port types are: Ethernet, I2C, RS232, RS485, SPI, TTL and USB
Applications
Industrial automation
Robotics
Automobile industry
Robotics
Automobile industry
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
사양
속성 | 값 |
---|---|
Manufacturer Series | M-Duino |
Number of Inputs | 6 |
Output Type | Analogue, Digital, Relay |
Input Type | Analogue, Digital |
Voltage Category | 12 → 24 V dc |
Number of Outputs | 11 |
Network Type | Ethernet, ModBus |
Programming Language Used | Arduino IDE |
Mounting Type | DIN Rail |
Width | 72.5mm |
Minimum Operating Temperature | 0°C |
Number of Communication Ports | 7 |
Maximum Operating Temperature | +45°C |
Depth | 129mm |
Programming Interface | Computer |
Memory | 256 (Flash) kB, 4 (EEPROM) kB, 8 (SRAM) kB, 8 (used by bootloader) kB |
Program Capacity | 256 (8 used by bootloader) kB |
Length | 101mm |
Dimensions | 101 x 72.5 x 129 mm |
Communication Port Type | Ethernet, I2C, RS232, RS485, SPI, TTL, USB |
