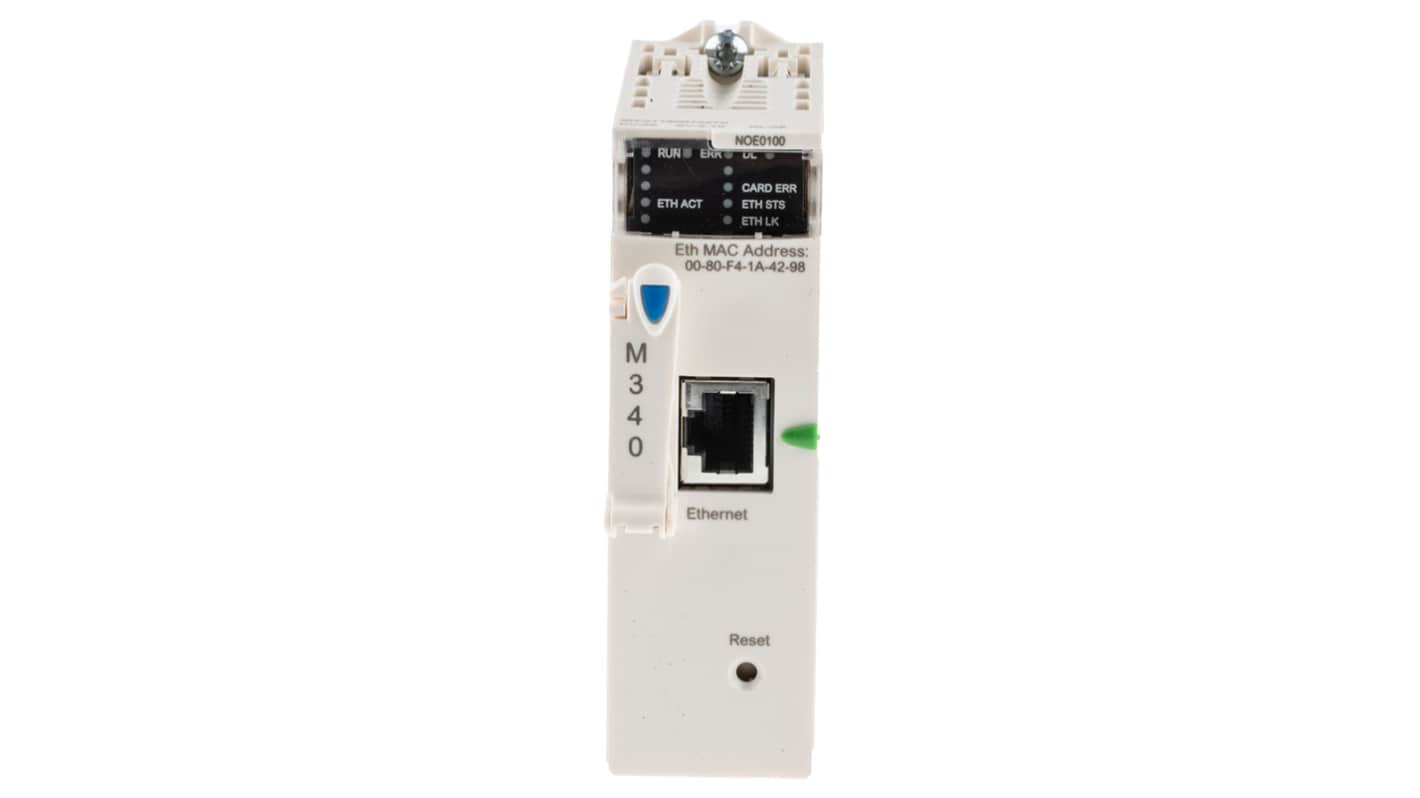

Schneider Electric Modicon X80 Series PLC Expansion Module for Use with Modicon M340

Use this Ethernet PLC expansion module from Schneider Electric to boost the communication capabilities of your industrial setup. Once integrated, the expansion module conveniently configures to your system automatically. Product structures and maintenance, as well as remote diagnostics, are all available instantly, so installation is quick and efficient. It’s designed for use with any browser that supports Java coding, so is widely compatible. An IP20 rating means that the module is touch-proof and resistant to dust or objects over 12mm in size, so there's no risk of electric shocks when you handle it.

• Designed for seamless integration with the Modicon 340 series, so it fits into your existing system
• Flash memory card improves data storage and comes pre-formatted for instant and easy use with the module
• Signalling via LEDs rather than standard bulbs, for a longer service life

• Industrial automation
• Production lines
• Vehicle manufacturing

PLC stands for programmable logic controller. This is a type of specialised computer that supports the control of automated industrial processes, such as the machines and robotic devices found on assembly lines.

Schneider Electric Modicon M340 PLC

Equipped with astounding memory and performances, this featherweight version will inspire your applications with new momentum. Designed to operate in total synergy with other Schneider Electric devices, Modicon M340 a building block towards your total solution.

Performance

Data rate: 20kb/s to 1Mb/s (bus length dependent)
Internal RAM capacity: 4Mb (3584kb of program memory); 256kb of data memory

Compact design

3 communication ports integrated in the processor
Mounting in low depth cabinet (<150mm)
High-density discrete I/O modules with 64 channels in a 32mm wide format

Communicative, with its integrated ports

CANopen machine and installation bus
Ethernet TCP/IP network - Transparent Ready
Modbus serial link or character mode
Remote access via STN, GSM, Radio or ADSL

Expert

Counter modules with ready-to-use functions
Function block library dedicated to motion control. MF(Motion Function Blocks) to the PLCopen standard
Advanced library of process control blocks oriented towards control of machinery

Innovative and Ruggedness

USB port as standard
Embedded webserver
Recipe file management via FTP protocol
“Plug and Load” SD memory card
No batteries
Rack architecture enabling hot swapping of modules during operation (Hot-Swap)
Exceeds the standards in terms of shocks, vibrations, temperature, altitude and withstand to electrical interference.

Ruggedness
