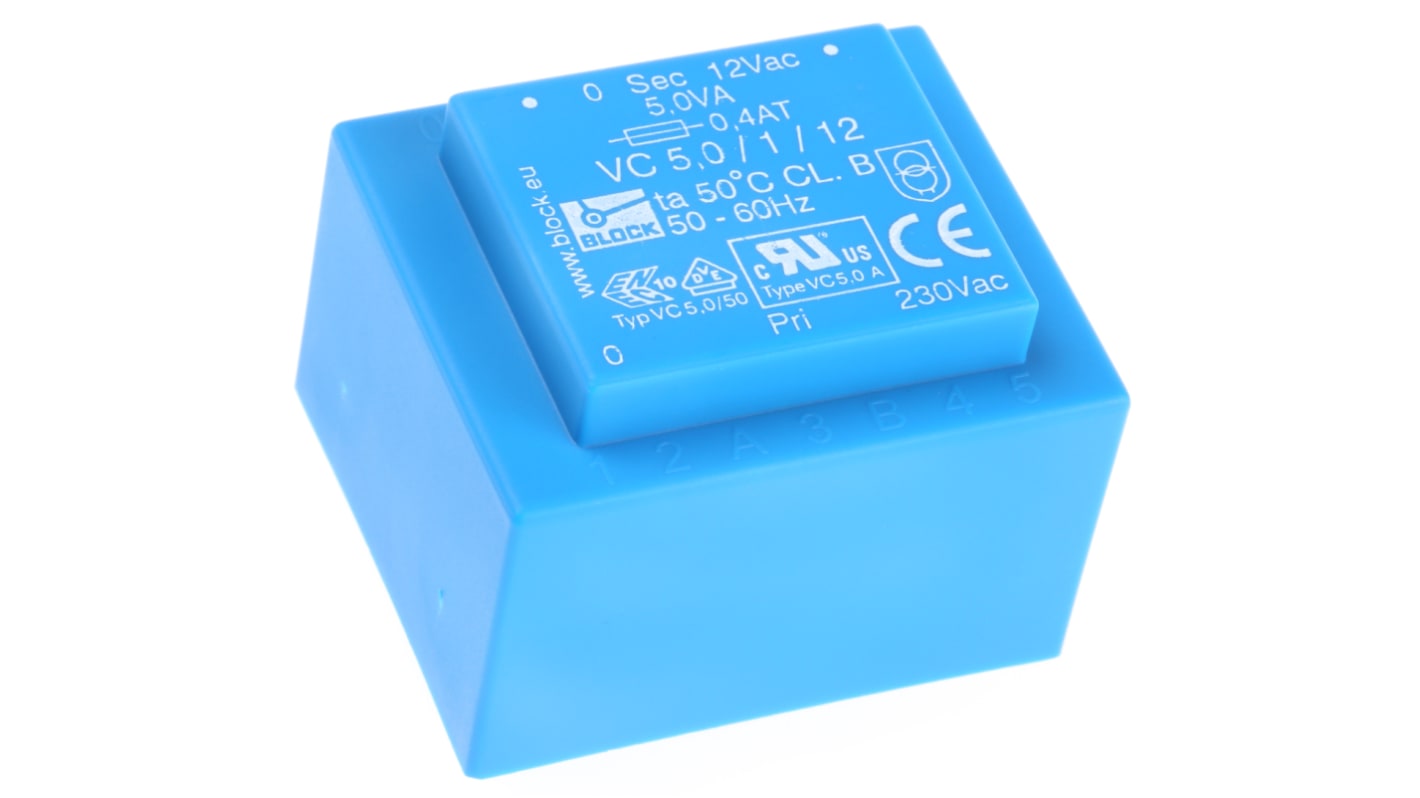

12V ac 1 Output Through Hole PCB Transformer, 5VA
- RS 제품 번호 732-0411
- 제조사 부품 번호 VC 5,0/1/12
- 제조업체 Block
PCB Mount 230Vac Primary VC/VCM Series
Single and twin secondary windings for series or parallel connection
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Note
To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.
Standards
EN 61 558 IEC 61558
Approvals
ENEC, UL recognised
Approvals
VDE; UL
Standards
EN 61 558; IEC 61558
| 속성 | 값 |
|---|---|
| Secondary Voltage Rating | 12V ac |
| Power Rating | 5VA |
| Primary Voltage Rating | 230V ac |
| Number of Outputs | 1 |
| Length | 44mm |
| Width | 37mm |
| Depth | 33mm |
| Dimensions | 44 x 37 x 33mm |
| Weight | 190g |
| Mounting Type | Through Hole |
| Maximum Temperature | +50°C |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
