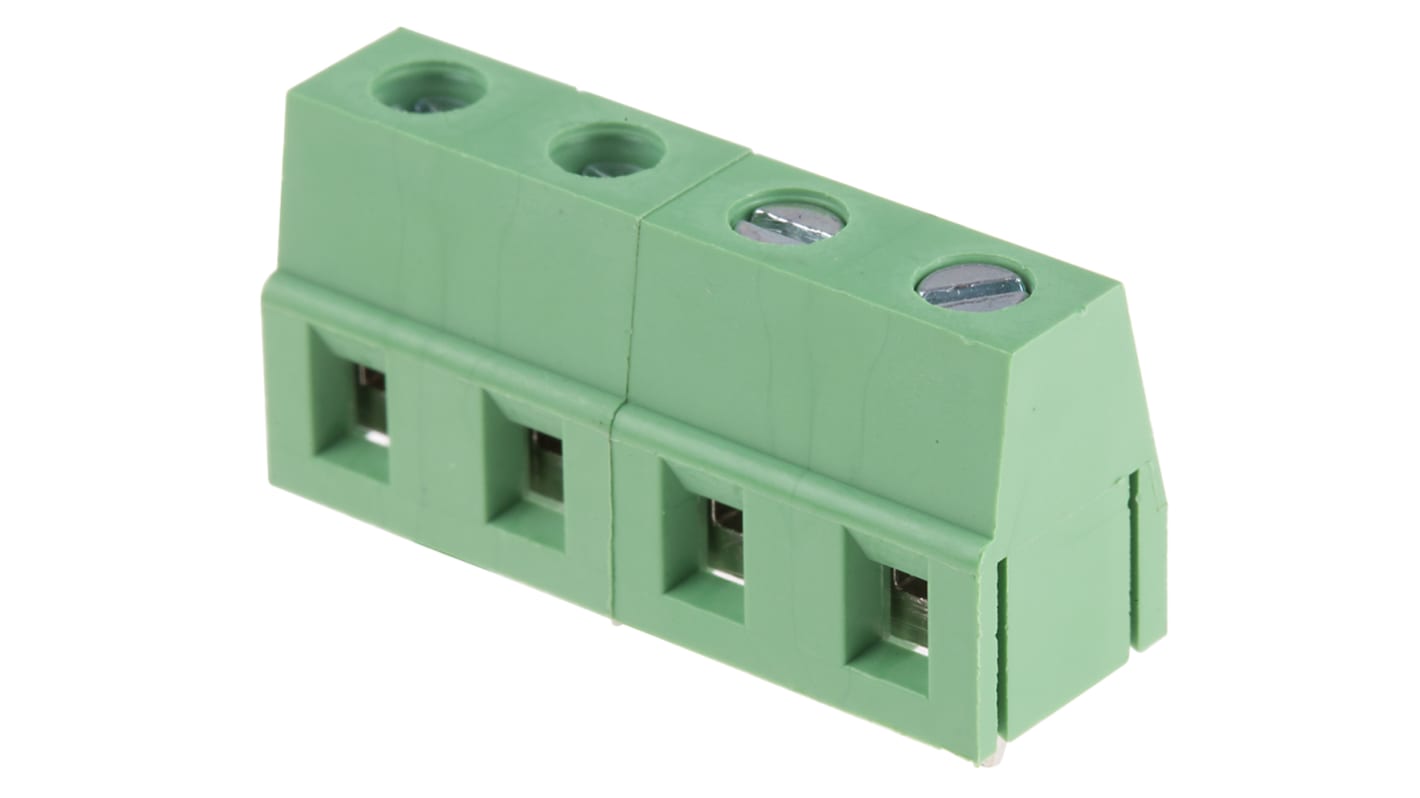

RS PRO PCB Terminal Block, 4-Contact, 7.5mm Pitch, Through Hole Mount, 1-Row, Screw Termination

모든 PCB Terminal Blocks 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 제품 번호:
897-0935
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Number of Contacts

4

Pitch

7.5mm

Number of Rows

1

Mounting Type

Through Hole

Gender

Male

Termination Method

Screw

Type

PCB Terminal Block

Current Rating

10A

Body Orientation

Straight

Colour

Green

Voltage Rating

300 V

Material

Polyamide

Depth

14.3mm

Length

30mm

Width

10.3mm

COO (Country of Origin):
CN

RS 7.5mm Pitch Standard Profile PCB Terminal Blocks


7.5 mm pitch standard profile end stackable PCB terminal blocks with professional rising clamp terminals. Also providing double interlocking mechanism for increased strength and green UL94-V0 flame retardant PA66 housings. These terminal blocks have M2.5 nickel plated stainless steel captive screws, guided pin alignment and accept a wire size range of 0.33-3.3 mm2 (22-12 AWG).
