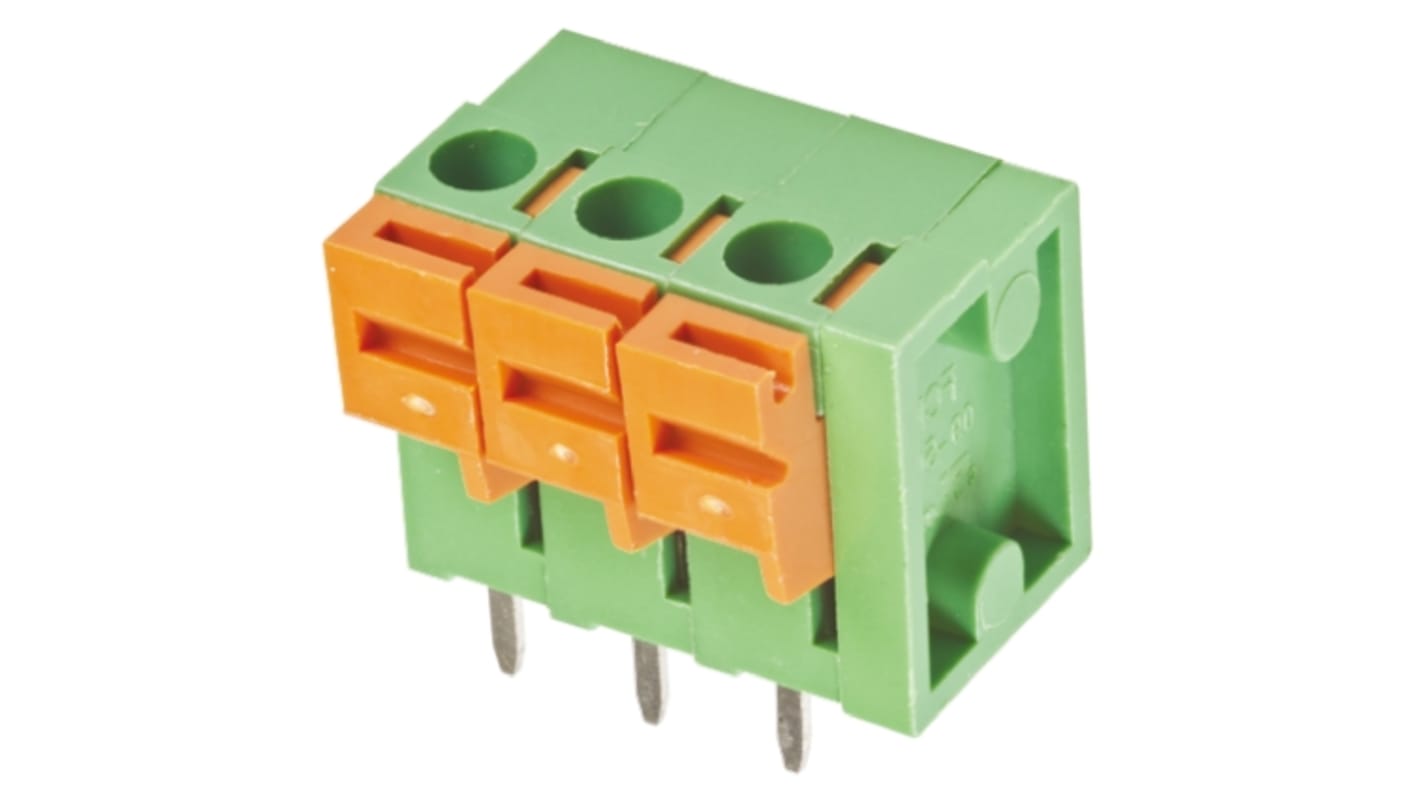

Amphenol Communications Solutions 09-381 Series PCB Terminal Block, 3-Contact, 3.81 mm Pitch, 1 Row, 20020302-D031B01LF
- RS 제품 번호:
- 753-1851
- 제조사 부품 번호:
- 20020302-D031B01LF
- 제조업체:
- Amphenol Communications Solutions
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩8,911.50
재고있음
- 10 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 120 | ₩1,782.30 | ₩8,911.50 |
| 125 - 495 | ₩1,712.10 | ₩8,560.50 |
| 500 + | ₩1,638.00 | ₩8,190.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 753-1851
- 제조사 부품 번호:
- 20020302-D031B01LF
- 제조업체:
- Amphenol Communications Solutions
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Amphenol Communications Solutions | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 3.81mm | |
| Current | 6A | |
| Number of Rows | 1 | |
| Housing Material | Thermoplastic | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 23AWG | |
| Orientation | Vertical | |
| Colour | Green | |
| Wire Connection Method | Push-in | |
| Voltage | 300V | |
| Standards/Approvals | cURus, UL94-V0 | |
| Series | 09-381 | |
| Length | 1.9595mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Amphenol Communications Solutions | ||
Product Type PCB Terminal Block | ||
Number of Contacts 3 | ||
Pitch 3.81mm | ||
Current 6A | ||
Number of Rows 1 | ||
Housing Material Thermoplastic | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 23AWG | ||
Orientation Vertical | ||
Colour Green | ||
Wire Connection Method Push-in | ||
Voltage 300V | ||
Standards/Approvals cURus, UL94-V0 | ||
Series 09-381 | ||
Length 1.9595mm | ||
3.81mm Pitch FCI Terminal Block PCB Fixed, Spring Clamp Vertical
The FCI range of PCB Fixed, Spring Clamp Terminal Blocks combine a high performance contact with a quick and easy installation where the stripped wires are held in place by Stainless Steel springs. The dimensions of the PCB Fixed, Spring Clamp Terminal Blocks make them End-to-End stackable. The body material of these PCB Fixed Spring Clamp Terminal Blocks has a UL94V-0 flammability rating.
3.81mm Pitch FCI Terminal Blocks
FCI’s PCB signal 3.81 mm pitch Terminal Blocks. These 3.81 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.
