WAGO 741 Series PCB Connector, 3-Contact, 7.62 mm Pitch, 3 Row, 741-403
- RS 제품 번호:
- 222-289
- 제조사 부품 번호:
- 741-403
- 제조업체:
- WAGO
Subtotal (1 Box of 55 units)*
₩443,382.96
일시적 품절
- 2026년 4월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩443,382.96 | ₩8,061.44 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 222-289
- 제조사 부품 번호:
- 741-403
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Number of Contacts | 3 | |
| Product Type | PCB Connector | |
| Pitch | 7.62mm | |
| Current | 16A | |
| Number of Rows | 3 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | 0° | |
| Wire Connection Method | Cage Clamp | |
| Colour | Orange | |
| Voltage | 40 V | |
| Series | 741 | |
| Width | 21.74 mm | |
| Standards/Approvals | No | |
| Depth | 12.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Number of Contacts 3 | ||
Product Type PCB Connector | ||
Pitch 7.62mm | ||
Current 16A | ||
Number of Rows 3 | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation 0° | ||
Wire Connection Method Cage Clamp | ||
Colour Orange | ||
Voltage 40 V | ||
Series 741 | ||
Width 21.74 mm | ||
Standards/Approvals No | ||
Depth 12.8mm | ||
- COO (Country of Origin):
- CH

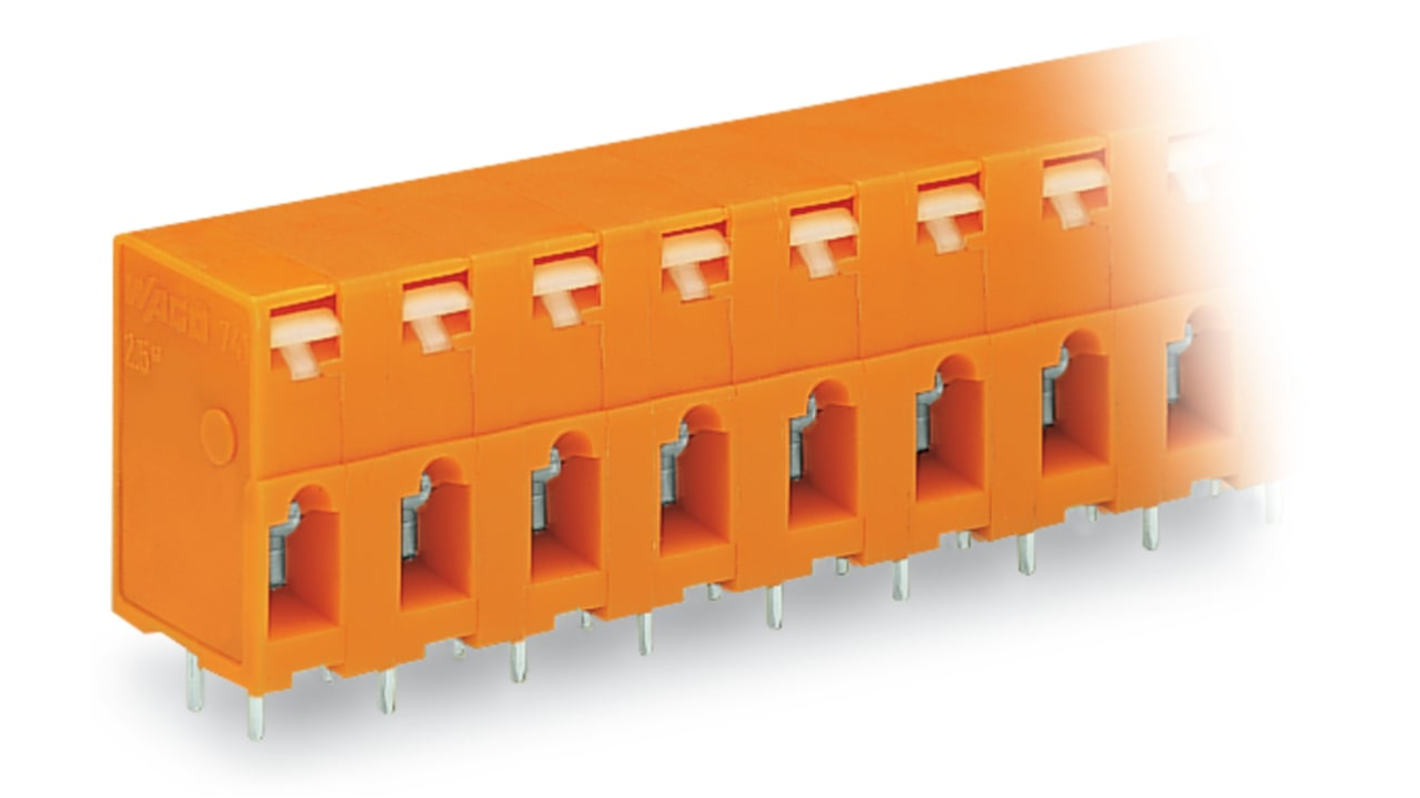

The Wago PCB Terminal Block combines innovation with reliability, designed specifically for push button wiring in various applications. The 3 pole connector is tailored for efficient circuit designs, utilising a unique CAGE CLAMP technology that simplifies conductor connections. Featuring a compact design, it accommodates wire sizes from 0.08 mm² to 2.5 mm², making it versatile for multiple configurations.
Constructed from high quality polyamide ensuring durability under demanding conditions
Complies with IEC and UL standards for enhanced safety and reliability
Provides a pollution degree rating of 3 and an overvoltage category of III for reliable operation
Available in a distinctive orange colour for improved visibility on control panels
