WAGO 256 Series PCB Connector, 10-Contact, 5.08 mm Pitch, 1 Row, 256-410
- RS 제품 번호:
- 220-654
- 제조사 부품 번호:
- 256-410
- 제조업체:
- WAGO
Subtotal (1 Box of 20 units)*
₩549,544.68
일시적 품절
- 2026년 4월 23일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩549,544.68 | ₩27,478.08 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 220-654
- 제조사 부품 번호:
- 256-410
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Number of Contacts | 10 | |
| Product Type | PCB Connector | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 2mm² | |
| Housing Material | Polyamide 66 | |
| Connector Gender | Male | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | 45° | |
| Colour | Grey | |
| Series | 256 | |
| Standards/Approvals | No | |
| Width | 52.9 mm | |
| Depth | 17.6mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Number of Contacts 10 | ||
Product Type PCB Connector | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 2mm² | ||
Housing Material Polyamide 66 | ||
Connector Gender Male | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation 45° | ||
Colour Grey | ||
Series 256 | ||
Standards/Approvals No | ||
Width 52.9 mm | ||
Depth 17.6mm | ||
- COO (Country of Origin):
- CH

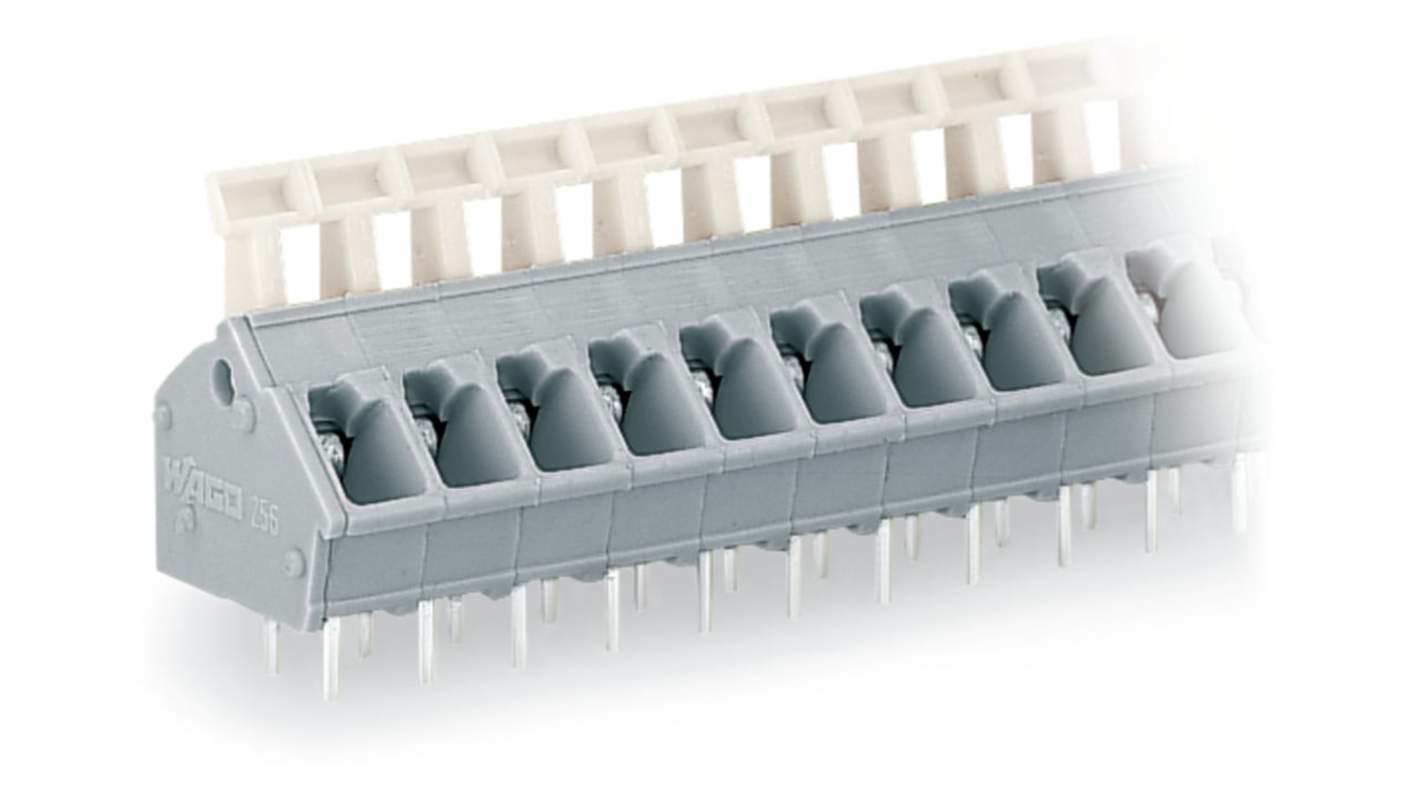

The Wago PCB Terminal Block revolutionises connectivity with its user friendly push button design and CAGE CLAMP connection technology. Tailored for efficiency in both installation and operation, the product ensures a reliable connection thanks to its robust material composition, including polyamide insulation. Its compact dimensions and versatile mounting capabilities make it an ideal solution for various applications, from industrial machinery to consumer electronics. The innovative design allows for easy access and manipulation, perfect for in field wiring tasks.
Convenient push button actuation designed for quick operations
Mixed colour PCB connector strips enhance visual differentiation
Optimised for both solid and fine stranded conductors
Lightweight design aids in structural stability and efficiency
Flammability class rated V0 ensures high safety standards
Customisable options available to suit specific project needs
