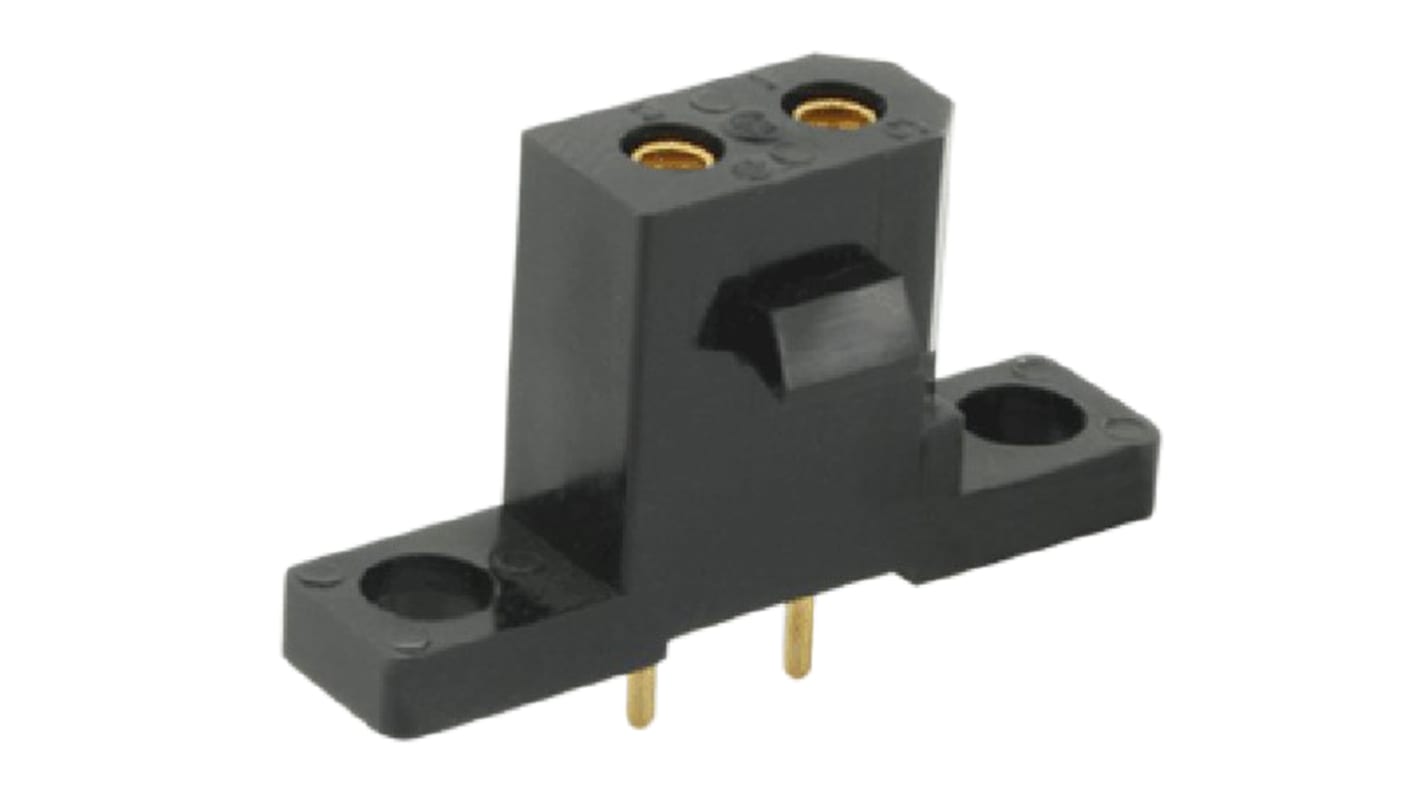

Souriau SMS Series Straight PCB Mount PCB Socket, 2-Contact, 1-Row, 5.08mm Pitch, Solder Termination

RS 제품 번호:: 908-3417
제조사 부품 번호:: SMS2GE3
제조업체:: Souriau Sunbank by Eaton

Souriau SMS Series Straight PCB Mount PCB Socket, 2-Contact, 1-Row, 5.08mm Pitch, Solder Termination

모든 PCB Sockets 열람하기

130 <재고있음> 5-9영업일내 홍콩 발송

추가완료!

장바구니 보기

단가 개당가격(5개가 1팩안에)

₩19,594.864

수량	한팩당	한팩당*
5 - 45	₩19,594.864	₩97,977.77
50 - 245	₩19,104.992	₩95,528.412
250 - 495	₩18,628.92	₩93,141.15
500 - 745	₩18,163.197	₩90,812.535
750 +	₩17,707.823	₩88,540.842
*다른 단위에 대한 가격 표시

RS 제품 번호:: 908-3417
제조사 부품 번호:: SMS2GE3
제조업체:: Souriau Sunbank by Eaton

참조 문서

제정법과 컴플라이언스

COO (Country of Origin):: FR

제품 세부 사항

Souriau SMS Series 5.08mm Quick Mating PCB Connectors

SMS series quick mating 5.08 mm pitch PCB mount wire to board connectors pre-loaded with either pin/socket TRIM TRIO contacts which are either solid machined or stamped and formed. Available from 2 position to 36 position. These SMS series quick mating PCB mount headers also feature discrimination cavities in-between the contact cavities and are available in straight or right angle mounting configurations. All models are highly reliable and excellent quality.

Features & Benefits

• SMSxxGE3 are straight PCB connectors with solid machined female contacts
• SMSxxGE4 are straight PCB connectors with solid machined male contacts
• SMSxxGE6 are right angle PCB connectors with solid machined male contacts
• SMSxxRE3TR29 are straight PCB connectors with stamped and formed female contacts for 3.2mm PCB
• SMSxxRE4TR29 are straight PCB connectors with stamped and formed male contacts for 3.2mm PCB

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Souriau SMS Series Quick Mating Wire to Board Connectors

사양

속성	값
Number of Contacts	2
Number of Rows	1
Pitch	5.08mm
Type	Socket
Mounting Type	PCB Mount
Body Orientation	Straight
Termination Method	Solder
Current Rating	7.5A
Voltage Rating	250 V
Series	SMS
Contact Material	Copper
