Molex 503154 Series Vertical Surface PCB Socket, 20-Contact, 2 Row, 1.5 mm Pitch Surface Mount
- RS 제품 번호:
- 262-3606
- 제조사 부품 번호:
- 5031542090
- 제조업체:
- Molex

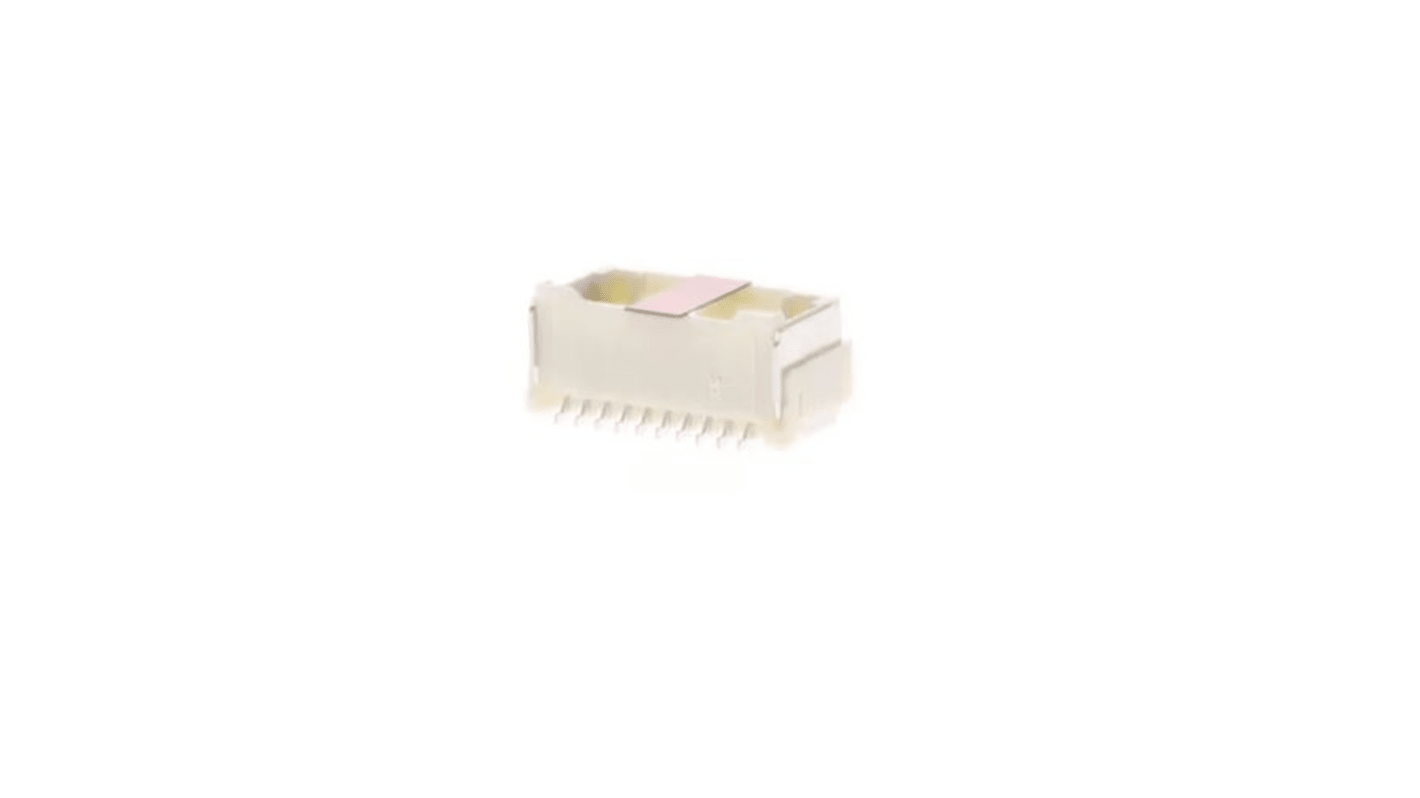

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 reel of 450 units)*
₩1,312,992.00
일시적 품절
- 2026년 9월 28일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 450 + | ₩2,917.76 | ₩1,313,076.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 262-3606
- 제조사 부품 번호:
- 5031542090
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Number of Contacts | 20 | |
| Product Type | PCB Socket | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 2 | |
| Pitch | 1.5mm | |
| Current | 2A | |
| Housing Material | Copper | |
| Termination Type | Surface Mount | |
| Mount Type | Surface | |
| Orientation | Vertical | |
| Voltage | 100 V | |
| Series | 503154 | |
| Row Pitch | 1.5mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL E29179 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Number of Contacts 20 | ||
Product Type PCB Socket | ||
Sub Type PCB Receptacle | ||
Number of Rows 2 | ||
Pitch 1.5mm | ||
Current 2A | ||
Housing Material Copper | ||
Termination Type Surface Mount | ||
Mount Type Surface | ||
Orientation Vertical | ||
Voltage 100 V | ||
Series 503154 | ||
Row Pitch 1.5mm | ||
Minimum Operating Temperature -40°C | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL E29179 | ||
- COO (Country of Origin):
- JP
The Molex 20 circuit PCB socket having current rating of 2 A and voltage rating of 100 V. It is made up of copper alloy material and tin plating.
Beige in color
Not low halogen
