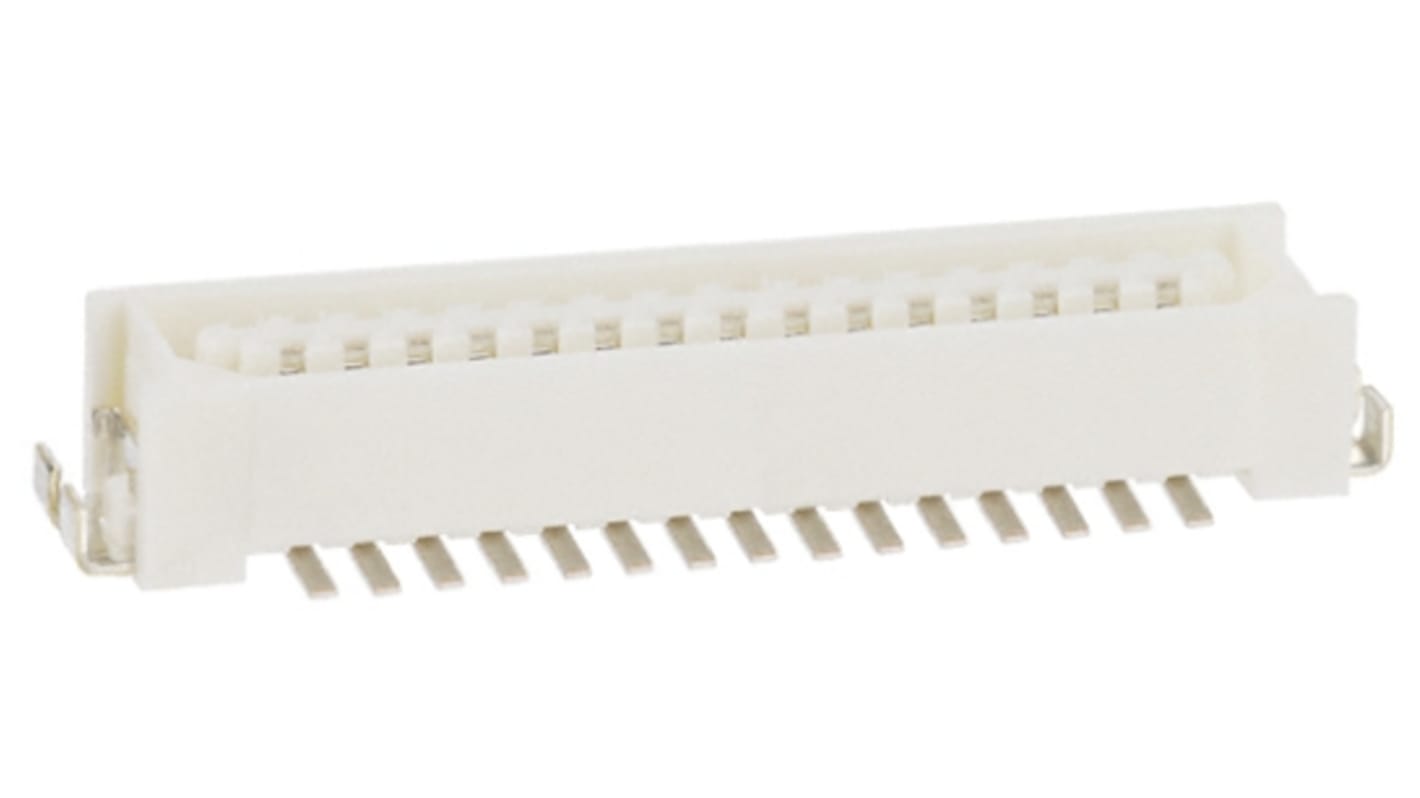

Hirose DF9, 31 Way, 2 Row, Straight PCB Header

  • RS 제품 번호 772-6908
  • 제조사 부품 번호 DF9B-31P-1V(32)
  • 제조업체 Hirose
참조 문서
제정법과 컴플라이언스
ROHS 준수
제품 세부 사항

Hirose DF9 Series 1.0 mm Board to Board Header and Socket Connectors

DF9 Series board to board header and socket connectors with a designed to comply with the VESA (Video Electronics Standards Association) FPDI-1 (Flat Panel Display Interface) standard interface connector for LCD displays. These DF9 Series PCB connectors feature a trapezoidal shaped mating interface to prevent misinsertion. An easy lock mechanism ensures that the connectors are securely mated and provides a tactile click to confirm that mating is complete. Versions of these DF9 PCB header and socket connectors are available with mounting bosses for holding the connector in place during the soldering or manual placement. The SMT socket and header connectors feature metal fittings for a secure attachment to the PCB and to prevent solder joints from peeling off due to mechanical stress

Features and Benefits

Compact design
Complies with the VESA FPDI-1 standard interface connector for LCD displays
Trapezoidal shaped mating interface to prevent misinsertion
4.3 mm stacking height
Easy lock mechanism for secure mating
Mounting bosses for holding connector in place during soldering process
Metal fittings on SMT versions for secure PCB attachment and to prevent solder peel

Applications

These DF9 Series header and socket connectors ideal for use in LCD displays on portable equipment, POS terminals, measurement devices and other hand held devices.

1.0mm SMT Board to Board Connector - Hirose DF9

SMT Board to Board connector range, 1mm contact pitch,Compliant with VESA FPDI-1 Standard Interface Connector,Mis-Insertion Prevention,Easy Look Mechanism,Smooth Insertion and Extraction

사양
속성
Series DF9
Pitch 1mm
Number of Contacts 31
Number of Rows 2
Body Orientation Straight
Mounting Type Surface Mount
Connector System Board to Board
Termination Method Solder
Contact Material Copper Alloy
Contact Plating Tin
Current Rating 500mA
715 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (In a Pack of 5)
942.40
(exc. VAT)
수량
한(1)개당
한(1)팩당*
5 - 70
₩942.40
₩4,708.90
75 - 245
₩908.30
₩4,541.50
250 - 495
₩874.20
₩4,372.55
500 - 1245
₩841.65
₩4,206.70
1250 +
₩807.55
₩4,039.30
*다른 단위에 대한 가격 표시
