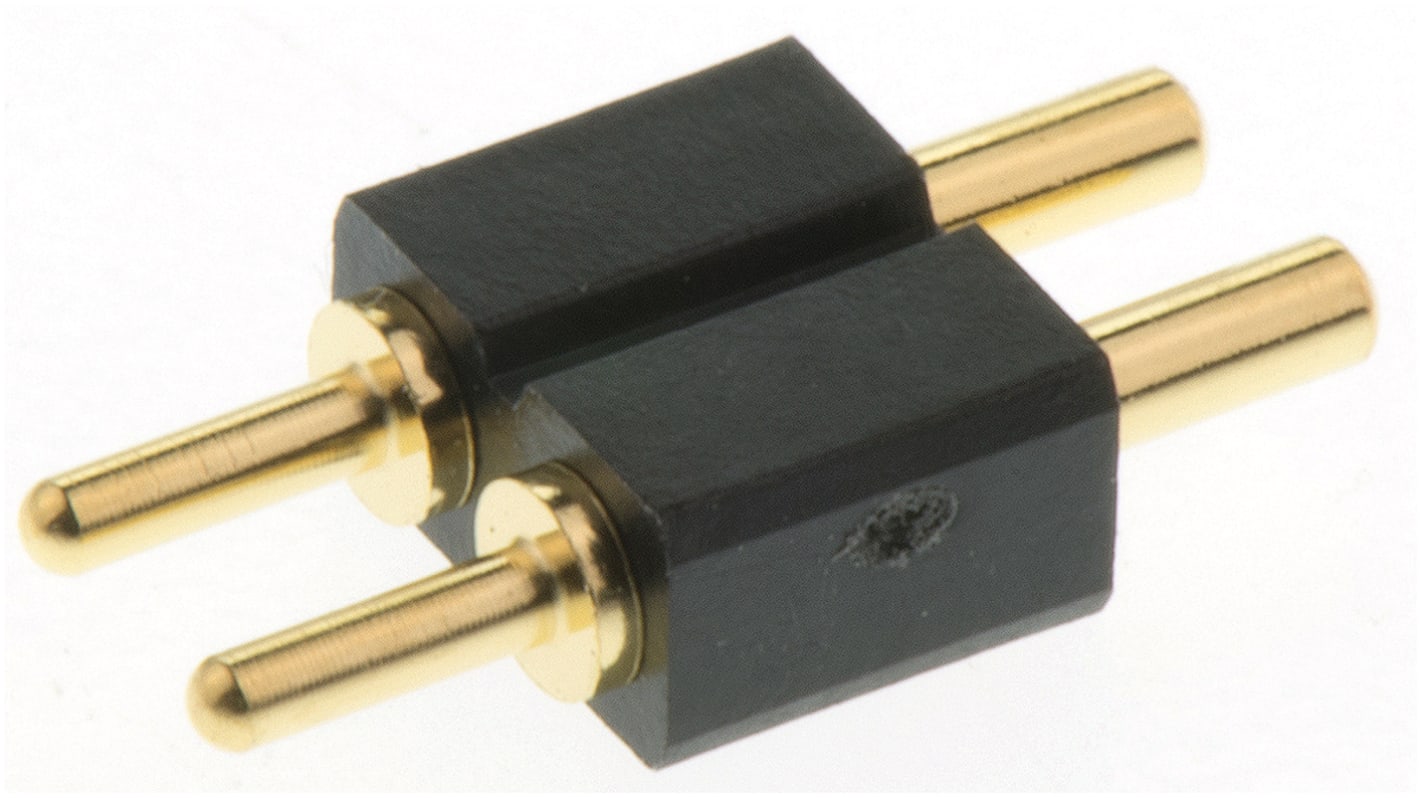

Preci-Dip, 2 Way, 1 Row, Straight Spring Loaded Connector

  • RS 제품 번호 702-0161
  • 제조사 부품 번호 811-S1-002-10-017101
  • 제조업체 Preci-Dip
참조 문서
제정법과 컴플라이언스
ROHS 준수
COO (Country of Origin): CH
제품 세부 사항

2.54 mm SIL Spring-Loaded Contacts, Through Hole

These Preci-dip SIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with through hole mounting into the PCB.

The Height dimension gives the initial height of the spring-loaded contacts
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm

Note

For counterpart SMD SIL Pad Connectors see stock number 702-0360 (straight) or 702-5126 (parallel) typical

Standards

UL 94V-0

Preci-dip Spring-Loaded Connectors

A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.

사양
속성
Pitch 2.54mm
Number of Contacts 2
Number of Rows 1
Body Orientation Straight
Mounting Type Through Hole
Termination Method Solder
Contact Material Brass
Contact Plating Gold
Current Rating 3.5A
500 <재고있음> 5-9영업일내 홍콩 발송
단가 Each
Was ₩2,534.25
1,520.55
(exc. VAT)
수량
한(1)개당
1 - 24
₩1,520.55
25 - 74
₩1,444.60
75 - 199
₩1,364.00
200 - 399
₩1,278.75
400 +
₩1,233.80
