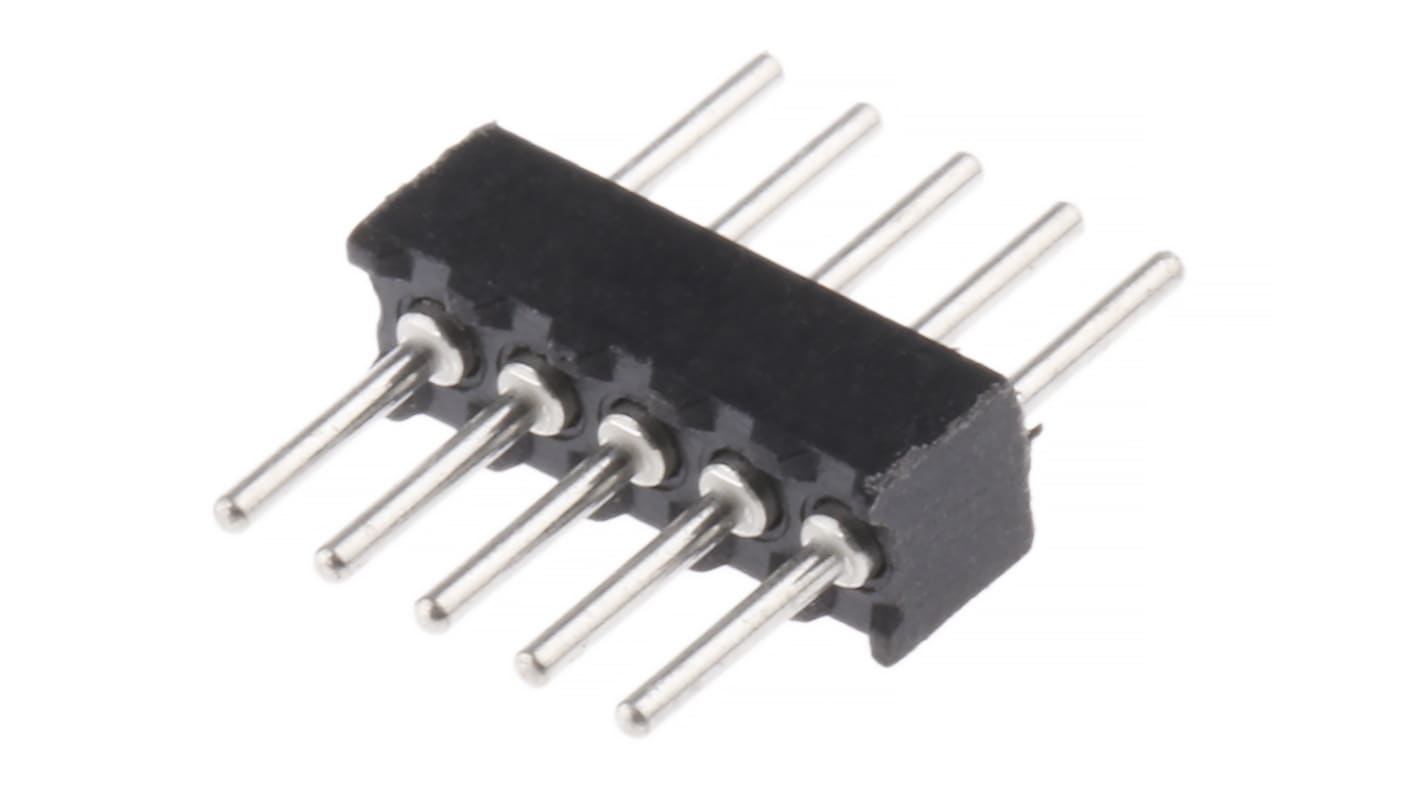

Preci-Dip, 5 Way, 1 Row, Straight Pin Header
- RS 제품 번호:
- 702-0124P
- 제조사 부품 번호:
- 850-80-005-10-001101
- 제조업체:
- Preci-Dip
모든 PCB Headers 열람하기
330 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (Supplied in a Bag)
₩1,359.75
| 수량 | 한팩당 |
| 125 - 370 | ₩1,359.75 |
| 375 - 995 | ₩1,340.50 |
| 1000 - 1995 | ₩1,321.25 |
| 2000 + | ₩1,302.00 |
포장 옵션
- RS 제품 번호:
- 702-0124P
- 제조사 부품 번호:
- 850-80-005-10-001101
- 제조업체:
- Preci-Dip
- COO (Country of Origin):
- CH
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
1.27 mm IC Pin Connectors Ø 0.41 mm pin
These Swiss Preci-dip IC Ultraminiature PCB Pin Connectors are solder tail Through Hole or SMD perpendicular mount headers.
The SIL straight Through Hole headers have a Body height of 2.2 mm and Tail length of 2.9 mm
The DIL straight Through Hole headers have a Body height of 2.1 mm and Tail length of 3 mm
The SMD perpendicular mount headers are Gull-Wing type
All have Brass Tin plated terminations
The DIL straight Through Hole headers have a Body height of 2.1 mm and Tail length of 3 mm
The SMD perpendicular mount headers are Gull-Wing type
All have Brass Tin plated terminations
Standards
UL 94V-0
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
| 속성 | 값 |
| Pitch | 1.27mm |
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Brass |
| Current Rating | 1.0A |
