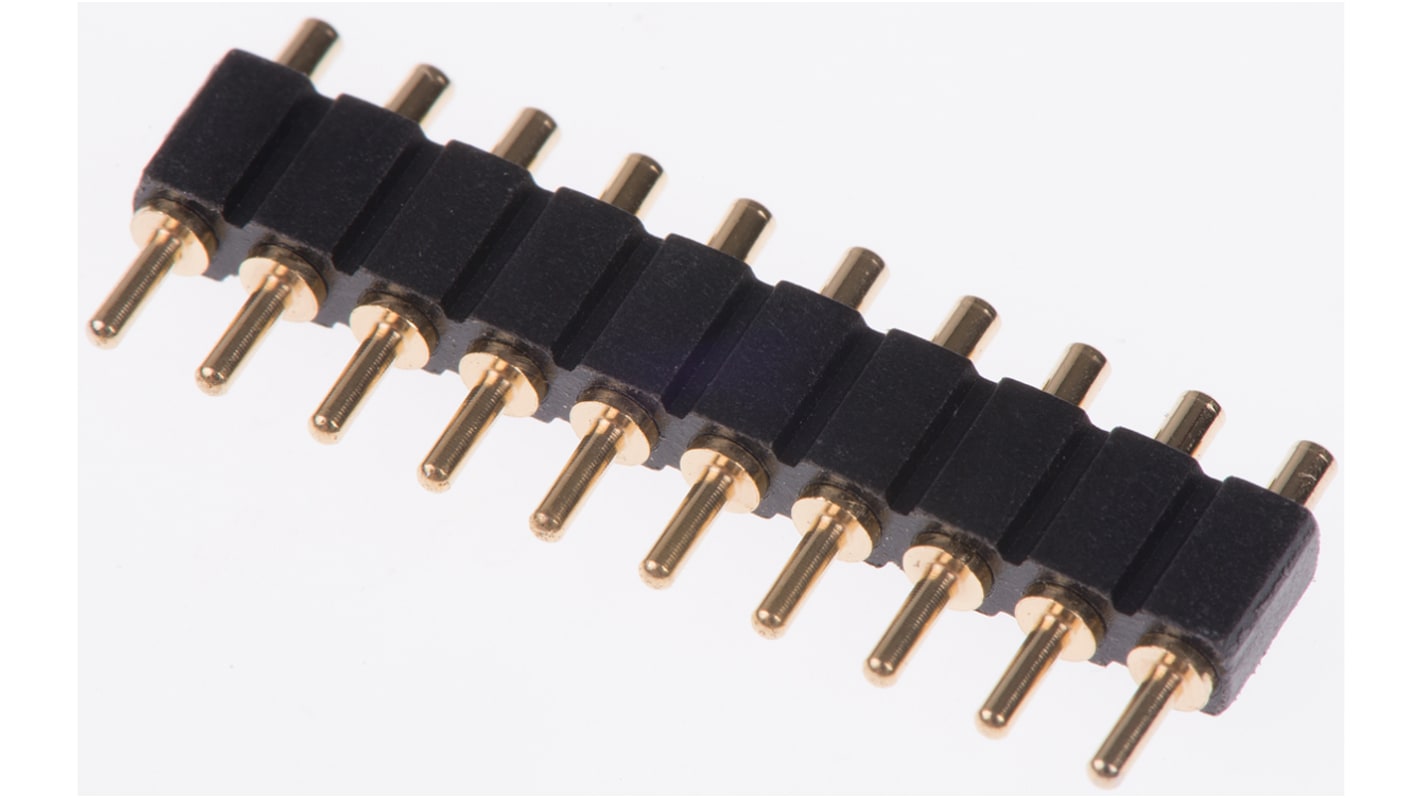

Preci-Dip, 10 Way, 1 Row, Straight Spring Loaded Connector
- RS 제품 번호:
- 702-0076P
- 제조사 부품 번호:
- 811-S1-010-10-015101
- 제조업체:
- Preci-Dip
모든 PCB Headers 열람하기
178 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (Supplied in a Box)
₩9,205.00
| 수량 | 한팩당 |
| 25 - 74 | ₩9,205.00 |
| 75 - 199 | ₩8,939.00 |
| 200 - 399 | ₩8,729.00 |
| 400 + | ₩8,538.25 |
포장 옵션
- RS 제품 번호:
- 702-0076P
- 제조사 부품 번호:
- 811-S1-010-10-015101
- 제조업체:
- Preci-Dip
- COO (Country of Origin):
- CH
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항
2.54 mm SIL Spring-Loaded Contacts, Through Hole
These Preci-dip SIL 813-S1 Series low resistance modular connectors have spring-loaded contacts (SLC) with through hole mounting into the PCB.
The Height dimension gives the initial height of the spring-loaded contacts
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
The plastic body height is 4 mm
The plunger stroke length is 1.4 mm
Note
Standards
UL 94V-0
Preci-dip Spring-Loaded Connectors
A perfect alternative to conventional connection solutions. The electrical multipoint connection between the mobile piston and the clip guarantees low, stable electrical resistance values without micro-discontinuities, even when the piston is moving or vibrating, thus assuring maximum reliability.
사양
| 속성 | 값 |
| Pitch | 2.54mm |
| Number of Contacts | 10 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 3.5A |
