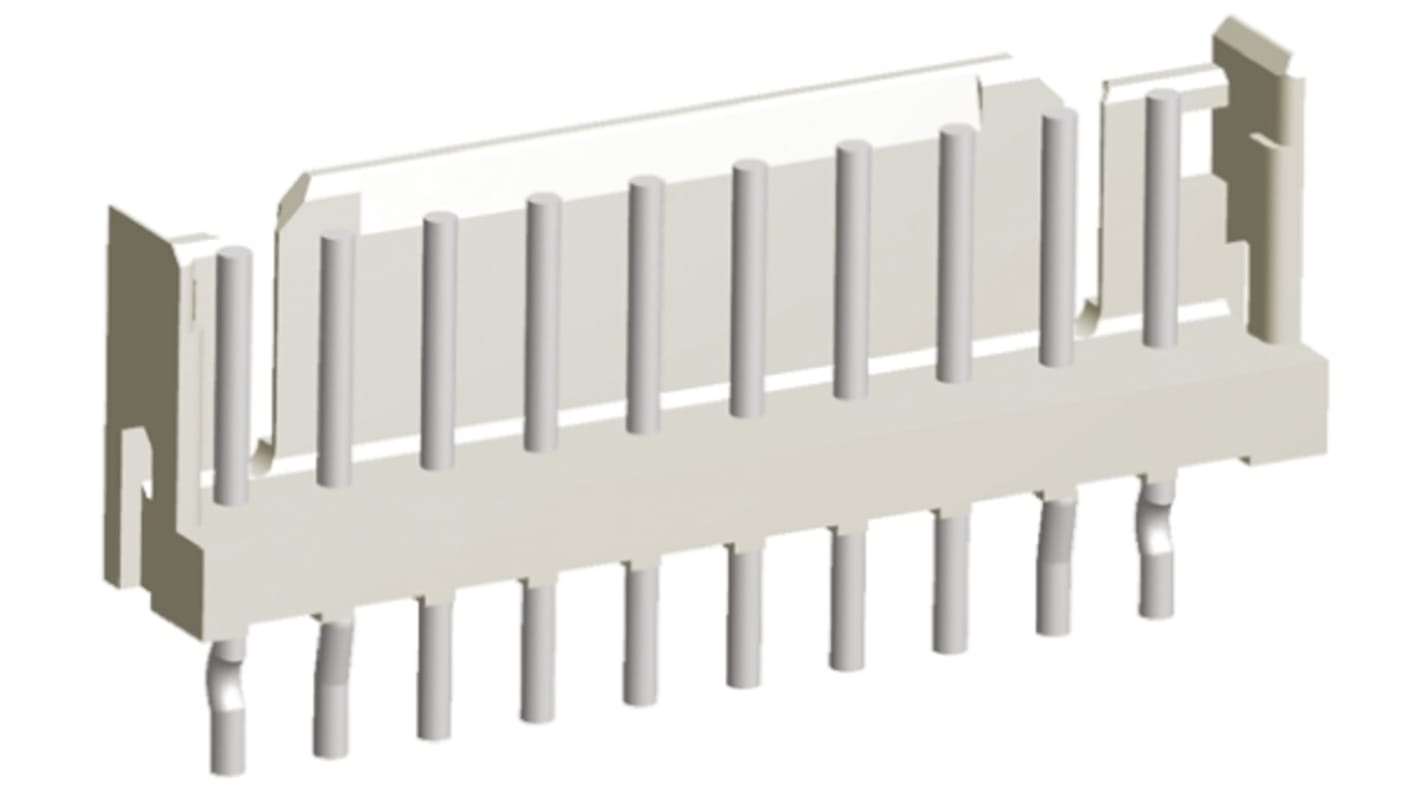

TE Connectivity AMP CT, 10 Way, 1 Row, Straight PCB Header

  • RS 제품 번호 680-1008
  • 제조사 부품 번호 1-292161-0
  • 제조업체 TE Connectivity
참조 문서
제정법과 컴플라이언스
ROHS 준수
COO (Country of Origin): CN
제품 세부 사항

TE Connectivity AMP CT 2 mm Standard Type PCB Headers

AMP CT 2 mm PCB headers with a miniature design and single walled shrouding. These AMP CT headers have polarization and mating retention features for an accurate and secure connection to the mating cable connector. The solder legs of these AMP CT headers have a kinked design enabling secure self-retention to the PCB. These AMP CT 2 mm PCB headers are available with vertical or right angle mounting configurations.

Features and Benefits

• Miniature design
• Polarization and mating retention features
• Kinked solder legs for secure self-retention to PCB

Applications

These AMP CT 2 mm connectors are suitable for use in a wide range of applications and have proven wire harness making capability. Applications include business equipment, industrial machines, PCs, printers, C-TV, audio and Air Conditioning.

TE Connectivity 2.00mm CT Interconnection System

AMP CT 2 mm miniature interconnection system for use in wire to board and wire to wire applications with proven wire harness capability. The AMP CT 2 mm connector system consists of boxed and shrouded PCB headers and mating crimp or MT (Mass Terminated) cable mounting housings. The MT housings are loaded with IDC contacts.

사양
속성
Series AMP CT
Pitch 2mm
Number of Contacts 10
Number of Rows 1
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Wire to Board
Termination Method Solder
Contact Material Brass
Contact Plating Tin
Current Rating 2A
210 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (In a Pack of 10)
747.10
(exc. VAT)
수량
한(1)개당
한(1)팩당*
10 - 240
₩747.10
₩7,474.10
250 - 990
₩709.90
₩7,091.25
1000 - 2490
₩615.35
₩6,158.15
2500 - 4990
₩613.80
₩6,145.75
5000 +
₩613.80
₩6,133.35
