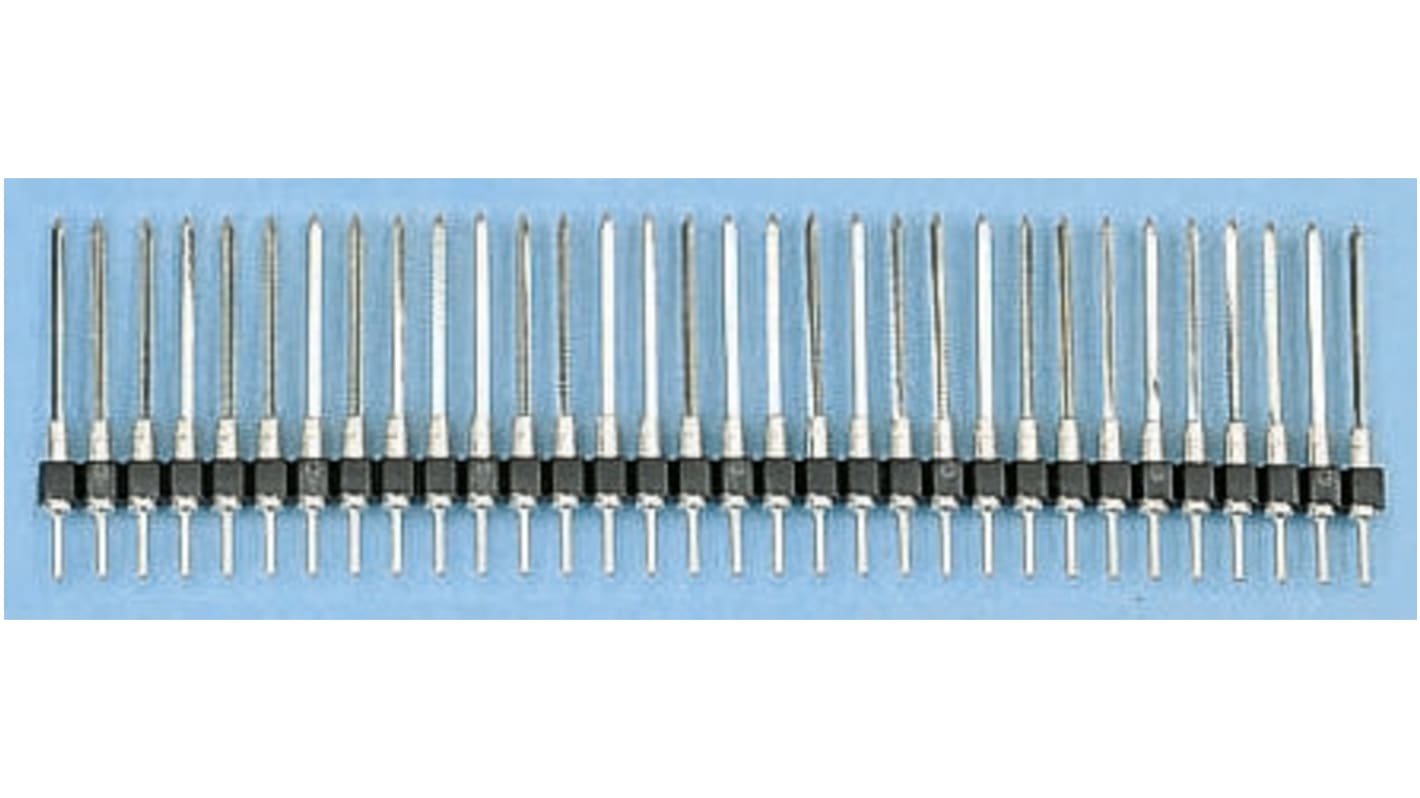

E-TEC SIB Series Straight Through Hole PCB Header, 32-Contact, 1 Row, 2.54 mm Pitch Solder
- RS 제품 번호:
- 549-4804
- 제조사 부품 번호:
- SIB-132-S078-99P. WW
- 제조업체:
- E-TEC
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩217,666.40
일시적 품절
- 2026년 3월 10일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 240 | ₩21,766.64 | ₩217,673.92 |
| 250 - 740 | ₩21,114.28 | ₩211,142.80 |
| 750 - 1990 | ₩20,461.92 | ₩204,611.68 |
| 2000 - 3990 | ₩20,025.76 | ₩200,257.60 |
| 4000 + | ₩19,591.48 | ₩195,907.28 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 549-4804
- 제조사 부품 번호:
- SIB-132-S078-99P. WW
- 제조업체:
- E-TEC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | E-TEC | |
| Number of Contacts | 32 | |
| Product Type | PCB Header | |
| Sub Type | Wire-to-Board | |
| Number of Rows | 1 | |
| Current | 1A | |
| Pitch | 2.54mm | |
| Termination Type | Solder | |
| Housing Material | Plastic | |
| Mount Type | Through Hole | |
| Orientation | Straight | |
| Connector System | Board-to-Board | |
| Stacking Height | 2.54mm | |
| Voltage | 500 V | |
| Series | SIB | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 125°C | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 E-TEC | ||
Number of Contacts 32 | ||
Product Type PCB Header | ||
Sub Type Wire-to-Board | ||
Number of Rows 1 | ||
Current 1A | ||
Pitch 2.54mm | ||
Termination Type Solder | ||
Housing Material Plastic | ||
Mount Type Through Hole | ||
Orientation Straight | ||
Connector System Board-to-Board | ||
Stacking Height 2.54mm | ||
Voltage 500 V | ||
Series SIB | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 125°C | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
Standards/Approvals No | ||
32-contact male-male divisible strips
32-contact wrap divisible strips for testing or interconnecting PCBs.
2.54mm PCB Connector RS Range
A large variety of connector options, to cover the majority of board-to-board, bussing and programming requirements.
