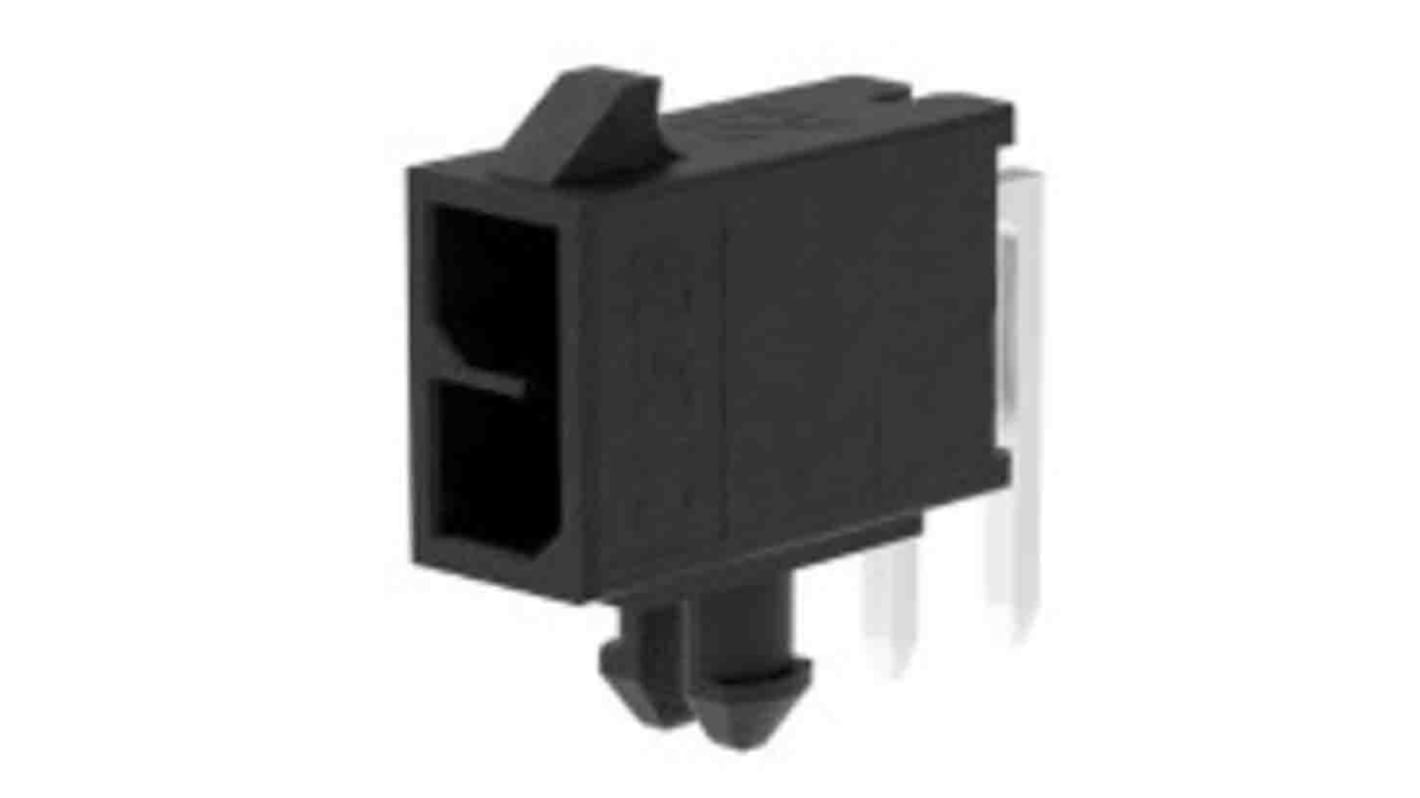

Molex Micro-Fit+ Series Right Angle Through Hole PCB Header, 2 Contact(s), 3.0mm Pitch, 2 Row(s), Shrouded
- RS 제품 번호:
- 205-1056
- 제조사 부품 번호:
- 212528-0200
- 제조업체:
- Molex
265 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(5개가 1팩안에)
₩1,573.109
수량 | 한팩당 | 한팩당* |
5 - 45 | ₩1,573.109 | ₩7,868.994 |
50 - 120 | ₩1,542.061 | ₩7,712.028 |
125 - 245 | ₩1,511.012 | ₩7,558.512 |
250 + | ₩1,481.689 | ₩7,406.721 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 205-1056
- 제조사 부품 번호:
- 212528-0200
- 제조업체:
- Molex
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
The Molex Micro-Fit+ connector is a wire-to-board system which offers a 3.00mm pitch, a higher-current rating of 12.5A and superior design options for flexibility and efficient assembly. It is used in routers, appliances and charging stations.
Fully isolated contacts on each side of the interface
Prevents mis-mating
Prevents mis-mating
different than standard Micro-Fit 3.0
Enhanced TPA design
V-0/Glow Wire combination resin
Reflow options available
Reduced Mating Force by 40%
Smaller PCB footprint
Fully polarized housings
Enhanced TPA design
V-0/Glow Wire combination resin
Reflow options available
Reduced Mating Force by 40%
Smaller PCB footprint
Fully polarized housings
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Series | Micro-Fit+ |
Pitch | 3.0mm |
Number of Contacts | 2 |
Number of Rows | 2 |
Body Orientation | Right Angle |
Shrouded/Unshrouded | Shrouded |
Mounting Type | Through Hole |
