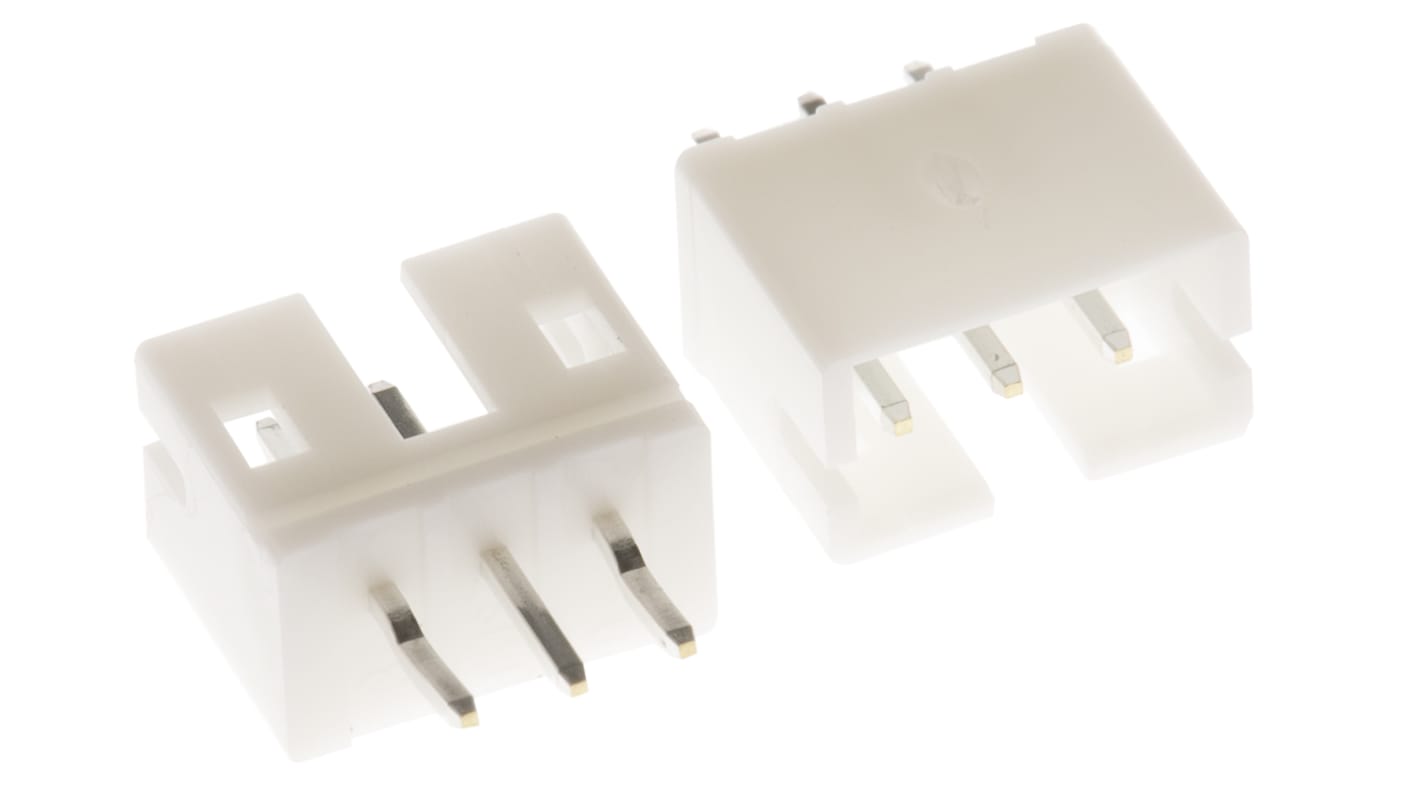

JST PH Series Straight Through Hole PCB Header, 3 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded
- RS 제품 번호:
- 172-4899
- 제조사 부품 번호:
- B3B-PH-K-S(LF)(SN)
- 제조업체:
- JST
4000 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(1000개가 1박스안에)
₩219.062
| 수량 | 한팩당 | Per Box* |
| 1000 - 1000 | ₩219.062 | ₩218,889.81 |
| 2000 - 3000 | ₩213.888 | ₩213,542.62 |
| 4000 + | ₩210.438 | ₩210,265.31 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 172-4899
- 제조사 부품 번호:
- B3B-PH-K-S(LF)(SN)
- 제조업체:
- JST
제정법과 컴플라이언스
- COO (Country of Origin):
- MY
제품 세부 사항
JST PH series Shrouded Through Hole Headers
A range shrouded headers for the JST PH series of low-profile 2.0mm pitch wire-to-board connectors. These compact through-hole mounting headers are ideal for high density PCB connections and offer high reliability at low cost. Both top-entry (straight) and side-entry (right-angle) types are available.
2.0mm Wire-to-Board Connector, JST PH Series
사양
속성 | 값 |
|---|---|
| Series | PH |
| Pitch | 2.0mm |
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Tin |
| Contact Material | Brass |
| Current Rating | 2.0A |
| Series Number | B3B |
| Voltage Rating | 100.0 V |
