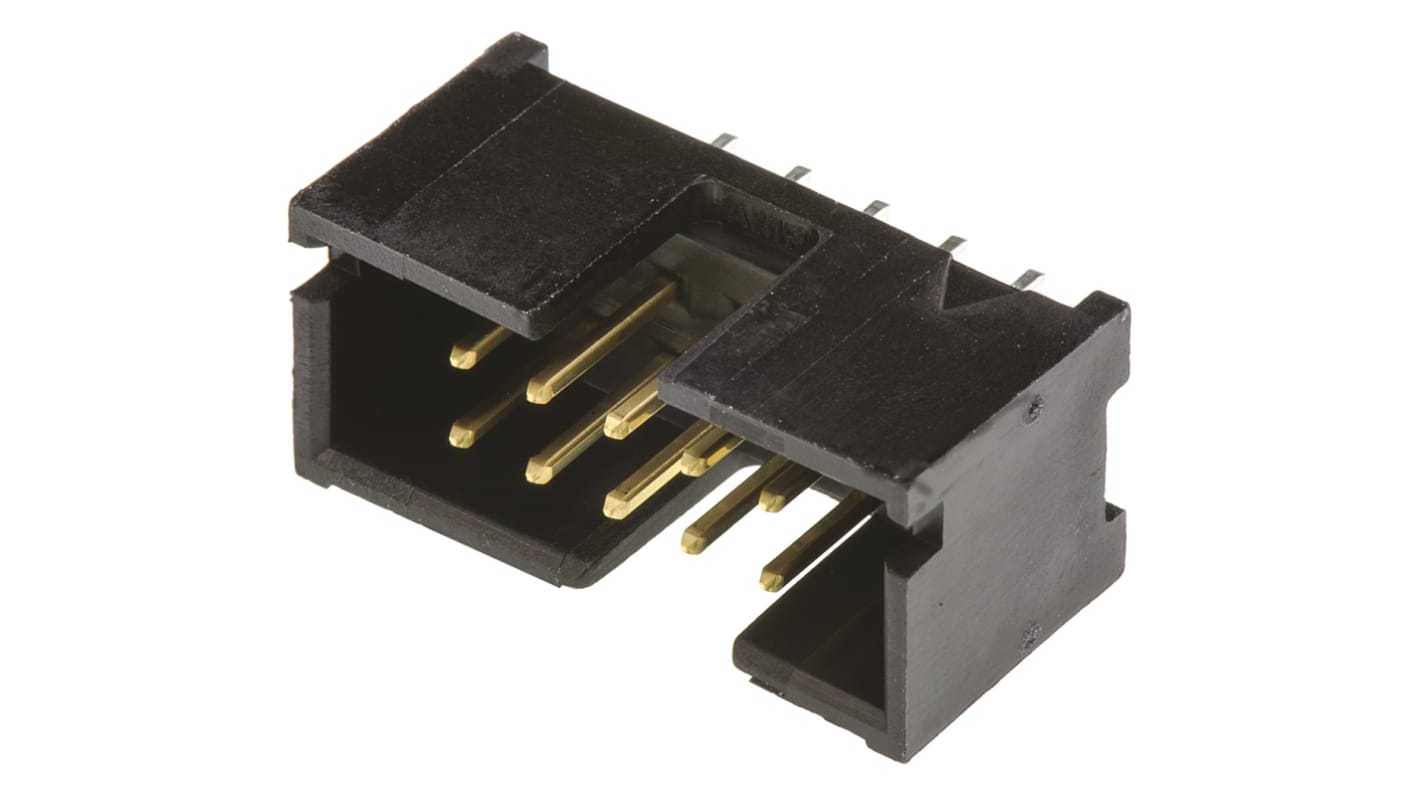

TE Connectivity AMP-LATCH, 10 Way, 2 Row, Straight PCB Header

  • RS 제품 번호 164-1650
  • 제조사 부품 번호 5103308-1
  • 제조업체 TE Connectivity
참조 문서
제정법과 컴플라이언스
ROHS 준수
COO (Country of Origin): US
제품 세부 사항

TE Connectivity AMP-LATCH 2.54mm PCB Headers, Centre and Dual Polarized

AMP-LATCH PCB header connectors with a 2.54 x 2.54 mm centreline and a low profile design. These AMP-LATCH headers have a centre polarizing slot and double bar polarization slots for accurate mating with the IDC ribbon cable connector. The housings are made from flame retardant 94V-0 rated thermoplastic and feature board standoffs to allow excess flux removal from the PCB. Versions of these AMP-LATCH low profile headers feature kinked soldertails for a secure connection to the PCB

Features and Benefits

• Low Profile design
• Centre and dual polarization slots
• Flame retardant 94V-0 thermoplastic housings
• Board standoffs
• Versions available with kinked solder tails

Applications

These AMP-LATCH PCB headers are suitable for use in a wide range of applications. Applications include, PCs, business equipment, medical equipment, storage, networking, industrial controls, appliances and electrical testing

사양
속성
Series AMP-LATCH
Pitch 2.54mm
Number of Contacts 10
Number of Rows 2
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Wire to Board
Termination Method Solder
Contact Material Copper Alloy
Current Rating 1A
3625 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (In a Tube of 125)
685.10
(exc. VAT)
수량
한(1)개당
Per Tube*
125 +
₩685.10
₩85,715.00
*다른 단위에 대한 가격 표시
