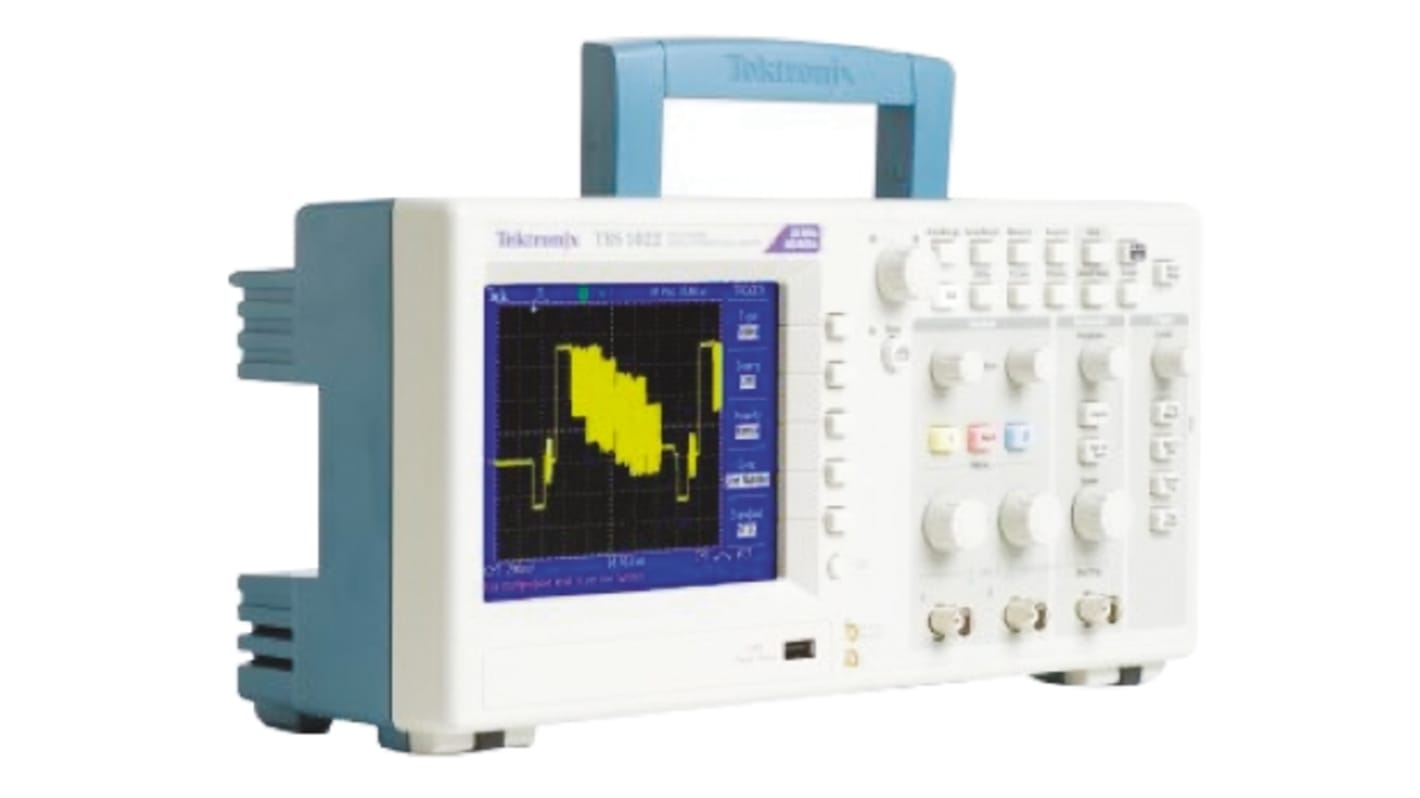

Tektronix TBS1000 Series TBS1064 Oscilloscope, Digital Storage, 4 Channels, 60MHz
- RS 제품 번호 786-5306
- 제조사 부품 번호 TBS1064
- 제조업체 Tektronix
Tektronix TBS1000 Series
The Tektronix TBS1000 Series of entry-level oscilloscopes gives engineers, the education sector and enthusiasts a value-for-money, reliable and fully featured instrument for general purpose test applications. There is huge potential is for companies to fit out their entire engineering and technical support teams with these powerful diagnostic tools. Buyers in education can put an oscilloscope on every workstation. And enthusiasts can get to know the world of Tektronix products and performance. The Tektronix TBS1000 Series offers a good choice of bandwidths. It delivers high performance (1 GS/s or 500 MS/s sample rates) with excellent accuracy (3% DC gain accuracy down to 2 mV). A new waveform data logging feature enables operators to save up to eight hours of triggered waveforms to a USB flash drive. TBS1000 waveform limit testing allows the operator to monitor signal changes and output pass/fail results. The TBS1000 user interface is intuitive to operate and comes with a full set of the most frequently used measurement types and analysis functions.
Features & Benefits
Advanced triggers including Pulse Width Trigger and Line-selectable Video Trigger
Automated measurements (16) and FFT Analysis for simplified waveform analysis
Built-in waveform limit testing
Automated, extended data logging feature
Autoset and signal auto-ranging
Built-in context-sensitive Help
Probe check wizard
Multiple-language user interface
Active TFT colour display 5.7 in (144 mm)
Front-panel USB host port and rear-panel USB device port
Small footprint and light weight
Note
Compatible probes include: current, A621 ( 851-218 ) A622 ( 851-224 ) P6021A ( 781-0813 ) TCP2020 ( 796-6705 ); passive, P2220 ( 481-0823 ) TPP0101 ( 715-8733 ) TPP0201 ( 715-8743 ); differential - high voltage, P5200A ( 734-5029 ) P5205A ( 734-5026 ). Accessories available include: TekProbe power supply 1103 ( 796-6733 ); soft carrying case AC2100 ( 481-0845 ); hard carrying case HCTEK4321 ( 613-1510 ).
Tektronix Oscilloscope
The Tektronix 60MHz oscilloscope offers a colour display of 5.7inch WVGA (800X480 pixels) Active TFT. It has 4 analogue channels. It provides you with affordable performance in a compact design. Packed with standard features - including USB connectivity, 16 automated measurements, limit testing, data logging and a context-sensitive help menu. The waveform limit testing allows the operator to monitor signal changes and output pass/fail results. The TBS1000 user interface is intuitive to operate and comes with a full set of the most frequently used measurement types and analysis functions. The Tektronix TBS1000 Series of entry-level oscilloscopes gives engineers, the education sector and enthusiasts a value-for-money, reliable and fully featured instrument for general purpose test applications.Note:Compatible probes include: current, A621 ( 851-218 ) A622 ( 851-224 ) P6021A ( 781-0813 ) TCP2020 ( 796-6705 )
passive, P2220 ( 481-0823 ) TPP0101 ( 715-8733 ) TPP0201 ( 715-8743 )
differential - high voltage, P5200A ( 734-5029 ) P5205A ( 734-5026 ). Accessories available include: TekProbe power supply 1103 ( 796-6733 )
soft carrying case AC2100 ( 481-0845 )
hard carrying case HCTEK4321 ( 613-1510 ).Note:Includes an Education Resource CD containing a broad range of laboratory exercises, instructor's guides and primers covering the uses of oscilloscopes and probes.Supplied with:TPP0101 100MHz passive probe, power cord, Certificate of Calibration, installation and safety manual, user manuals on CD, the Open Choice® PC communications software.
Features and Benefits
2.5k point record length on all channels Advanced triggers including pulse width trigger and line-selectable video trigger Auto set and signal auto-ranging Bandwidth is 60MHz Front-panel USB host port and rear-panel USB device port Includes Tektronix Open Choice® software for connecting your bench Input impedance of 1Mohm Multiple-language user interface Probe check wizard Sample rate is 1GSa/s Small footprint and lightweight USB 2.0 device port on the rear panel for easy connection to a PC or direct printing to a Pict Bridge®-compatible printer USB 2.0 host port on the front panel for quick and easy data storage
Applications
Audio and video recording equipment Designing Research & Development Testing in manufacturing Testing of signals voltage in radio broadcasting equipment Testing signal voltage in-circuit debugging
Certifications
Australian EMC Framework CSA22.2 No. 61010-1:2004 approved EN 61326-2-1 Class A compatible EN61010-1:2001 IEC61010-1:2001 UL61010-1:2004 approved
Note
Includes an Education Resource CD containing a broad range of laboratory exercises, instructor's guides and primers covering the uses of oscilloscopes and probes
Supplied with
TPP0101 100MHz passive probe, power cord, Certificate of Calibration, installation and safety manual, user manuals on CD, OpenChoice® PC communications software
Tektronix TBS1000 Series Oscilloscopes
| 속성 | 값 |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 60MHz |
| Oscilloscope Type | Digital Storage |
| Series | TBS1000 |
| Power Source | Mains |
| Interface | USB |
| Display Type | TFT LCD |
| Minimum Vertical Sensitivity | 2mV/div |
| Maximum Vertical Sensitivity | 5V/div |
| Minimum Time Base | 5ns/div |
| Screen Size | 5.7in |
| Sample Rate Random | 1 Gsps |
| Model Number p | TBS1064 |
| Safety Category Level | CAT II |
| Plug Type | Type C - European Plug, Type G - British 3-pin, Type J - Swiss 3-pin |
| Safety Category Voltage | 300V |
| Vertical Resolution | 8 bit |
| Safety Category | CAT II 300 V |
