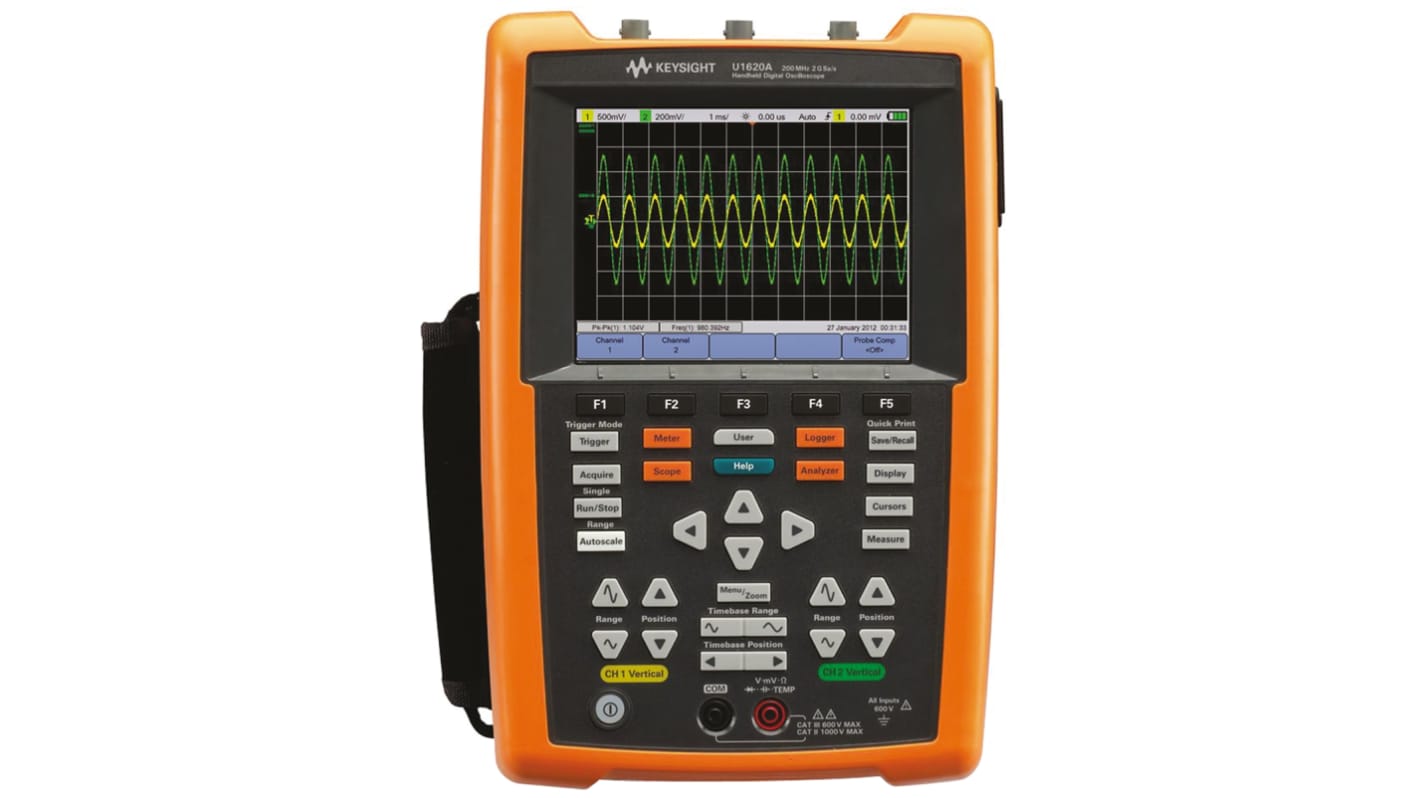

Keysight Technologies U1620A U1600 Series Digital Handheld Oscilloscope, 2 Analogue Channels, 200MHz
- RS 제품 번호:
- 751-2248
- 제조사 부품 번호:
- U1620A
- 제조업체:
- Keysight Technologies
개 04/07/2024(일/월/년)에 홍콩에 입고되며, 그 후 1-2 영업일 이내에 발송.
추가완료!
단가 개당
₩12,360,754.143
수량 | 한팩당 |
1 + | ₩12,360,754.143 |
- RS 제품 번호:
- 751-2248
- 제조사 부품 번호:
- U1620A
- 제조업체:
- Keysight Technologies
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- MY
제품 세부 사항
Keysight Technologies Oscilloscope
The Keysight Technologies 200MHz handheld oscilloscope offers the world's first VGA display handheld oscilloscopes with 3 selectable viewing modes that are indoor, outdoor and night vision. It has 2 analogue channels. The handheld oscilloscope has a floating measurement capability with two CAT III 600 V isolated channels. It captures more waveforms from signals such as pulse width modulated circuit, in a rush, transient, and motor start-up sequences. The benchtop-like display and dual window zoom allow you to easily identify problem areas and zoom in for more detailed analysis. Now, you can view signals in detail and detect glitches easily.
Supplied with Quick start guide, power adapter, Li-Ion battery pack, USB cable, test lead, 10:1 probe (2 sets)
Supplied with Quick start guide, power adapter, Li-Ion battery pack, USB cable, test lead, 10:1 probe (2 sets)
Features and Benefits
Bandwidth is 200MHz
Sample rate is 1GSa/s
Maximum waveform memory depth 2Mpts/channel (interleave)
Input impedance of 1Mohm
5.7in VGA TFT LCD display with 3 selectable viewing modes (indoor, outdoor and night vision)
10,000 resolution on DMM display
Data logging capability to PC
Channel-to-channel isolation with CAT III 600 V safety ratings
10 selectable languages on the User Interface (UI) system
9 languages help and user interface
USB device and host IO connectivity
Field changeable battery
Sample rate is 1GSa/s
Maximum waveform memory depth 2Mpts/channel (interleave)
Input impedance of 1Mohm
5.7in VGA TFT LCD display with 3 selectable viewing modes (indoor, outdoor and night vision)
10,000 resolution on DMM display
Data logging capability to PC
Channel-to-channel isolation with CAT III 600 V safety ratings
10 selectable languages on the User Interface (UI) system
9 languages help and user interface
USB device and host IO connectivity
Field changeable battery
Certifications
IEC 61000/EN 61000 compatible
ANSI/UL approved
CAN/CSA approved
ANSI/UL approved
CAN/CSA approved
사양
속성 | 값 |
---|---|
Bandwidth | 200MHz |
Number of Analogue Channels | 2 |
Digital/Analogue | Digital |
Oscilloscope Type | Handheld |
Series | U1600 |
Power Source | Battery, Mains |
Interface | CAN, LIN, USB |
Display Type | LCD |
Minimum Vertical Sensitivity | 2mV/div |
Maximum Vertical Sensitivity | 50V/div |
Minimum Time Base | 2ns/div |
Screen Size | 5.7in |
Sample Rate Random | 1 Gsps, 2 Gsps |
Dimensions | 183 x 65 x 270mm |
Weight | 2.5kg |
Battery Life | 3 h |
Battery Type | Rechargeable Lithium-Ion |
Maximum Time Base | 50s/div |
Record Length | 2M points/ch |
Vertical Resolution | 8 bit |
Rise Time | 1.75ns |
Safety Category | CAT III 600V |
