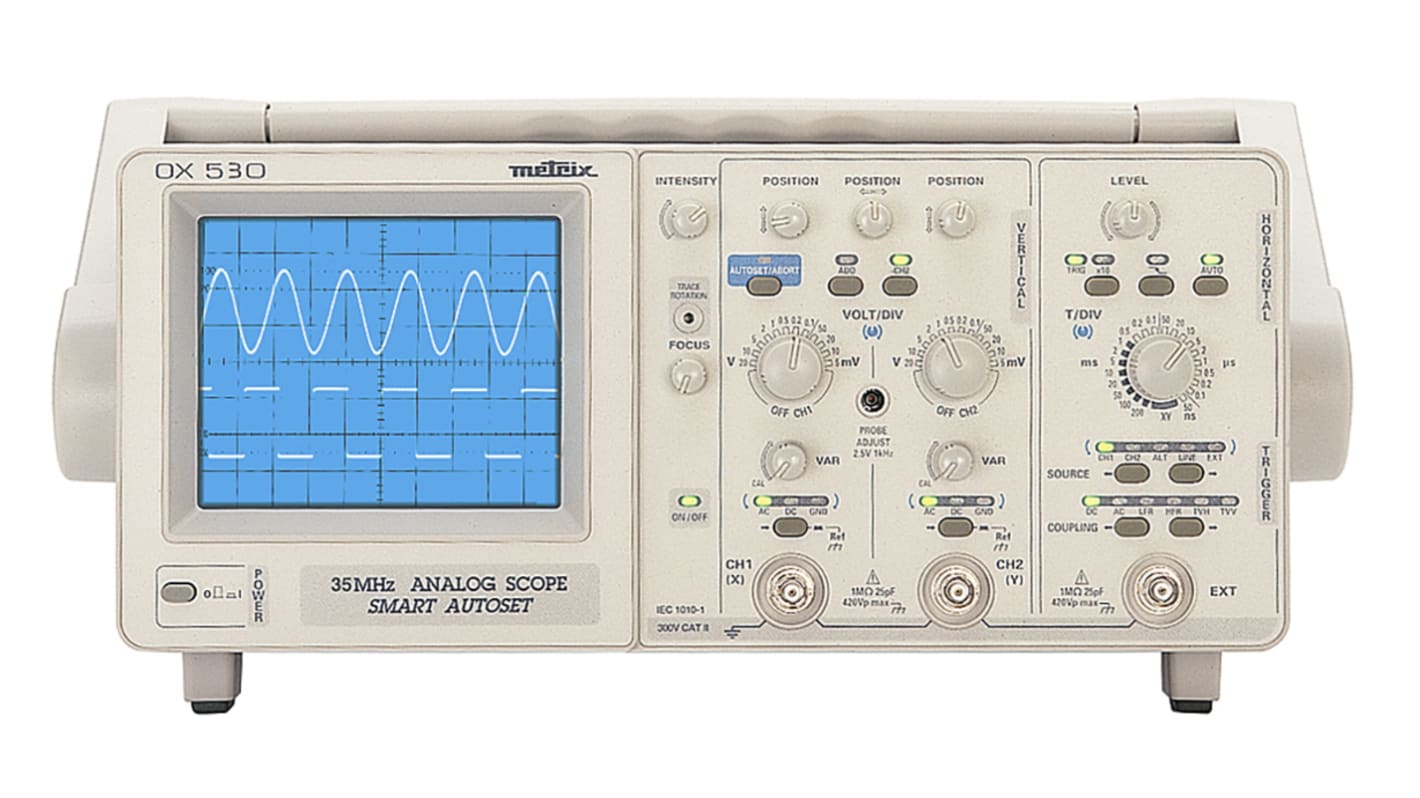

Metrix OX530 Analogue Oscilloscope, 35MHz
- RS 제품 번호:
- 512-5097
- 제조사 부품 번호:
- OX0530
- 제조업체:
- Metrix
단종
- RS 제품 번호:
- 512-5097
- 제조사 부품 번호:
- OX0530
- 제조업체:
- Metrix
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- FR
제품 세부 사항
OX 530 2 x 35 MHz analogue oscilloscope
The OX 530 oscilloscope is a simple, economical instrument that is both complete and modern.
The SMART AUTOSET, ALT and CHOP modes are automatic.
Its trace and contrast quality is excellent.
In addition, the electronic switching and surface-mount technology increase its reliability.
Bandwidth 30 / 35 MHz.
2 channels.
Sensitivity 5 mV/div. → 20 V/div.
Scanning speed of 10 ns/div. → 200 ms/div.
Settings saved.
User choices controlled by microprocessor.
LED display of selections.
The SMART AUTOSET, ALT and CHOP modes are automatic.
Its trace and contrast quality is excellent.
In addition, the electronic switching and surface-mount technology increase its reliability.
Bandwidth 30 / 35 MHz.
2 channels.
Sensitivity 5 mV/div. → 20 V/div.
Scanning speed of 10 ns/div. → 200 ms/div.
Settings saved.
User choices controlled by microprocessor.
LED display of selections.
사양
속성 | 값 |
|---|---|
| Bandwidth | 35MHz |
| Oscilloscope Type | Analogue |
| Power Source | Mains |
| Minimum Vertical Sensitivity | 5mV/div |
| Maximum Vertical Sensitivity | 20V/div |
| Weight | 5.5kg |
| Input Impedance | 1 MΩ |
| Height | 163mm |
| Dimensions | 435 x 330 x 163mm |
| Input Capacitance | 25 pF |
| Length | 435mm |
| Safety Category Voltage | 400 V |
| Safety Category | CAT II 400 V |
