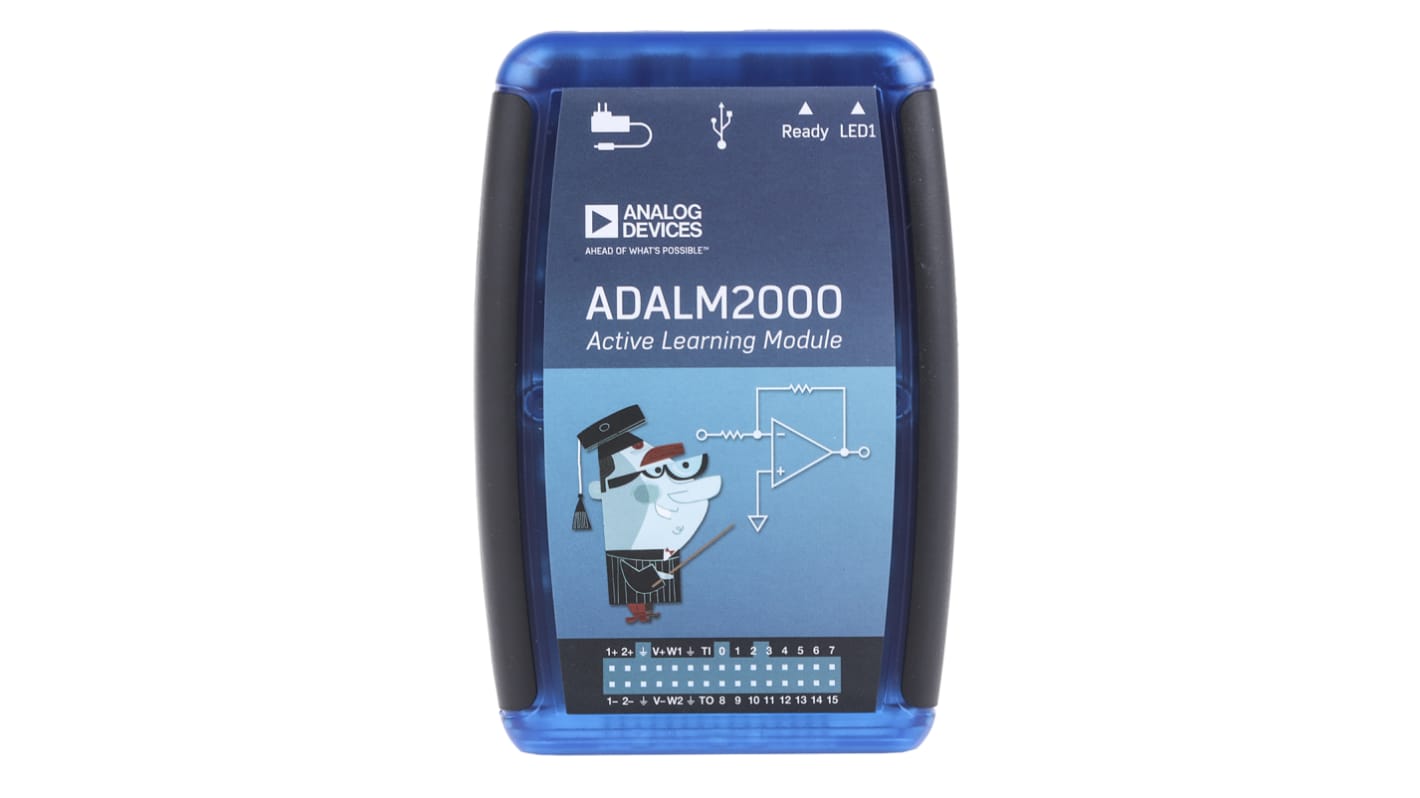

    Analog Devices ADALM2000 PC Based Oscilloscope

    RS 제품 번호:
    139-1726
    제조사 부품 번호:
    ADALM2000
    제조업체:
    Analog Devices
    Analog Devices
    모든 Oscilloscopes 열람하기
    일시 품절-문의: krenquiry@rs-components.com
    Add to Basket
    수량

    본 제품은 백오더/선주문 진행으로는 불가한 상황입니다.

    죄송합니다만, 본 제품에 대한 재고가 없으며, 현재는 백오더/선주문 진행이 불가합니다.

    추가완료!

    단가 Each

    ₩486,379.15

    수량한팩당
    1 +₩486,379.15
    RS 제품 번호:
    139-1726
    제조사 부품 번호:
    ADALM2000
    제조업체:
    Analog Devices
    COO (Country of Origin):
    CN

    제정법과 컴플라이언스

    COO (Country of Origin):
    CN

    제품 세부 사항

    Analog devices Oscilloscope Module


    The Analog Devices PC based oscilloscope is an active learning module which is a USB-powered software-defined instrument intended to work with Analog Devices' ’Scopy’ graphical application software running on a PC. With 12-bit ADCs and DACs running at 100 MSPS, the M2K brings the power of high-performance lab equipment to the palm of your hand, enabling electrical engineering students and hobbyists to explore signals and systems into the tens of MHz without the cost and bulk associated with traditional lab gear. The ADALM2000 is completely self-contained and entirely USB powered with the default firmware.
    Being several instruments in one small unit, PC-based oscilloscopes are lighter and more portable than traditional test equipment. A field engineer can thereby carry a complete electronics lab loaded onto a notebook computer.
    PC Based Instruments:
    Compact and portable
    Can provide a large and detailed colour display on your PC monitor
    Simultaneous views of scope, spectrum analyser and meter modes
    The analogue intensity and digital colour display modes
    Signal storage is limited only by the PC's memory


    Features and Benefits


    16-channel digital logic analyser
    16-channel pattern generator
    16-channel virtual digital I/O
    Digital Bus Analysers (SPI, I²C, UART, Parallel)
    Network analyser providing Bode, Nyquist and Nichols transfer diagrams
    Single-channel voltmeter (AC, DC, ±20V)
    Spectrum Analyser with power spectrum and spectral measurements
    Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS)
    Two programmable power supplies (0 to +5V and 0 to -5V)
    Two-channel arbitrary function generator
    Two-channel USB digital oscilloscope


    Applications


    Audio and video recording equipment
    Designing
    Research & Development
    Testing in manufacturing
    Testing of signals voltage in radio broadcasting equipment
    Testing signal voltage in-circuit debugging



    사양

    속성
    Bandwidth25MHz
    Digital/AnalogueAnalogue
    Oscilloscope TypePC Based
    Power SourceUSB
