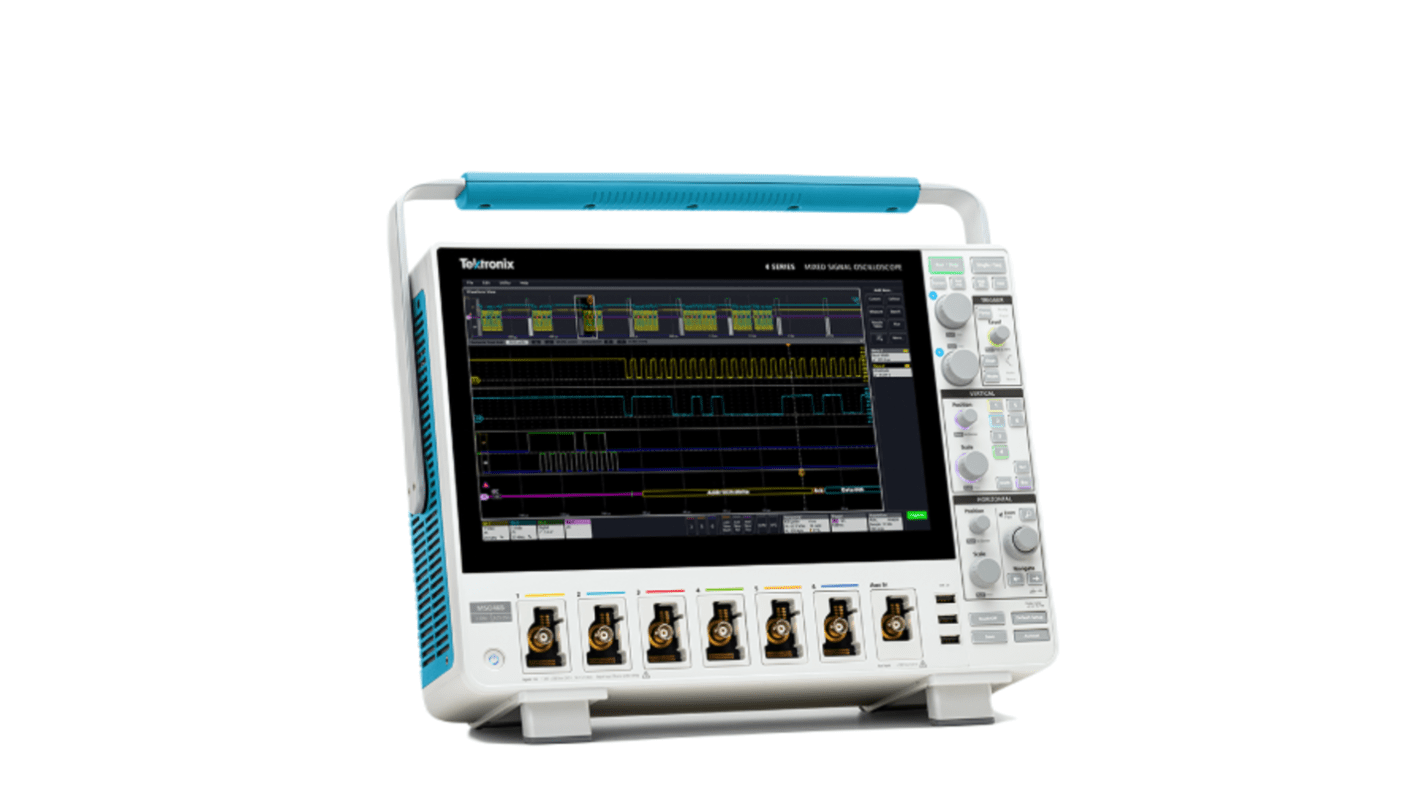

Tektronix MSO44B 4-BW Series, 1 GHz Mixed Signal Oscilloscope, 8 Channels
- RS 제품 번호:
- 328-095
- 제조사 부품 번호:
- MSO44B 4-BW 1000 MSO44BR3
- 제조업체:
- Tektronix
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 328-095
- 제조사 부품 번호:
- MSO44B 4-BW 1000 MSO44BR3
- 제조업체:
- Tektronix
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Tektronix | |
| Product Type | Oscilloscope | |
| Bandwidth | 1GHz | |
| Number of Channels | 8 | |
| Oscilloscope Type | Mixed Signal | |
| Oscilloscope Form | Mixed Signal | |
| Memory Depth | 62.5Mpts | |
| Screen Size | 13.4 in | |
| Series | MSO44B 4-BW | |
| Depth | 155mm | |
| Width | 405mm | |
| Standards/Approvals | RoHS | |
| Height | 287.1mm | |
| Maximum Time Base | 1000s/div | |
| Display Type | Capacitive Touch Display | |
| Vertical Resolution | 16 bit | |
| Maximum Vertical Sensitivity | 10V/div | |
| Waveform Refresh Rate | 500000wfms/s | |
| Minimum Time Base | 200ps/div | |
| 모두 선택 | ||
|---|---|---|
브랜드 Tektronix | ||
Product Type Oscilloscope | ||
Bandwidth 1GHz | ||
Number of Channels 8 | ||
Oscilloscope Type Mixed Signal | ||
Oscilloscope Form Mixed Signal | ||
Memory Depth 62.5Mpts | ||
Screen Size 13.4 in | ||
Series MSO44B 4-BW | ||
Depth 155mm | ||
Width 405mm | ||
Standards/Approvals RoHS | ||
Height 287.1mm | ||
Maximum Time Base 1000s/div | ||
Display Type Capacitive Touch Display | ||
Vertical Resolution 16 bit | ||
Maximum Vertical Sensitivity 10V/div | ||
Waveform Refresh Rate 500000wfms/s | ||
Minimum Time Base 200ps/div | ||
- COO (Country of Origin):
- CN
The Tektronix 4 Series Mixed Signal Oscilloscope sets a new standard for performance, analysis capabilities, and overall user experience in bench oscilloscopes. It is Ideal for debugging and validating embedded systems and power converters. The second generation of this instrument incorporates a new processing platform, more than doubling its responsiveness and significantly accelerating measurements and data transfers with full support for remote operation and control. Its high resolution 12 bit sampling ensures precise measurements on a higher contrast 13.3 inch HD display.
4 FlexChannel inputs
Waveform capture rate more than 500000 waveforms/s
31.25 Mpoints standard Record length
Real time 6.25 GS/s sample rate
Synchronized and multi channel spectrum analysis
