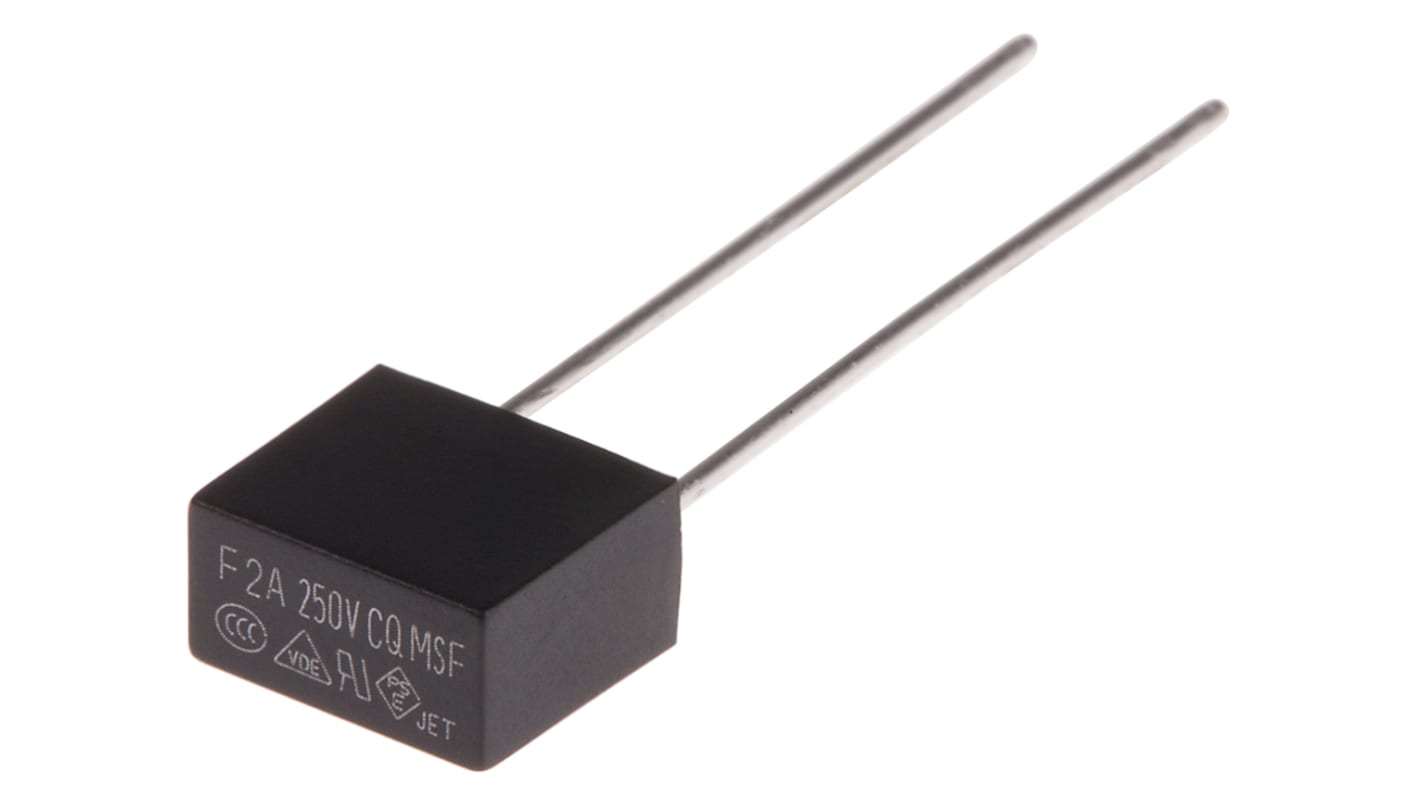

RS PROPC Board Non Resettable Fuse, Radial 2A, 250V
- RS 제품 번호:
- 767-5128
- 제조업체:
- RS PRO
2460 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당가격(10개가 1팩안에)
₩738.257
| 수량 | 한팩당 | 한팩당* |
| 10 - 40 | ₩738.257 | ₩7,382.572 |
| 50 + | ₩607.165 | ₩6,075.098 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 767-5128
- 제조업체:
- RS PRO
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항
RS Fast Acting TE5 Fuses
RS fast acting TE5 fuses are a convenient and reliable solution to a vast array of application requirements.
PCB Wire Ended
All fuses have Thermoplaste Polyamide bodies
사양
속성 | 값 |
|---|---|
| Current Rating | 2A |
| Lead Orientation | Radial |
| Voltage Rating | 250V |
| Fuse Speed | F |
| Body Material | Thermoplastic |
| Body Length | 8.35mm |
| Body Width | 4.3mm |
| Body Height | 7.7mm |
| Wire Length | 22mm |
| Wire Pitch | 5.08mm |
| Breaking Capacity at Maximum Voltage Rating | 35 A @ 250 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Wire Diameter | 0.62mm |
