Subtotal (1 unit)*
₩648,938.40
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 + | ₩648,938.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 212-322
- 제조사 부품 번호:
- TM1SHTCC4
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Temperature & Humidity Sensor | |
| Device Type | Probe | |
| Mount Type | Wall Mount | |
| Height | 122mm | |
| Length | 50.5mm | |
| Width | 100mm | |
| Weight | 0.14kg | |
| Terminal Type | Screw Clamp | |
| Maximum Supply Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Series | TM1SH | |
| IP Rating | IP65 | |
| Standards/Approvals | CE cULus EAC UKCA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Temperature & Humidity Sensor | ||
Device Type Probe | ||
Mount Type Wall Mount | ||
Height 122mm | ||
Length 50.5mm | ||
Width 100mm | ||
Weight 0.14kg | ||
Terminal Type Screw Clamp | ||
Maximum Supply Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Series TM1SH | ||
IP Rating IP65 | ||
Standards/Approvals CE cULus EAC UKCA | ||
- COO (Country of Origin):
- CN

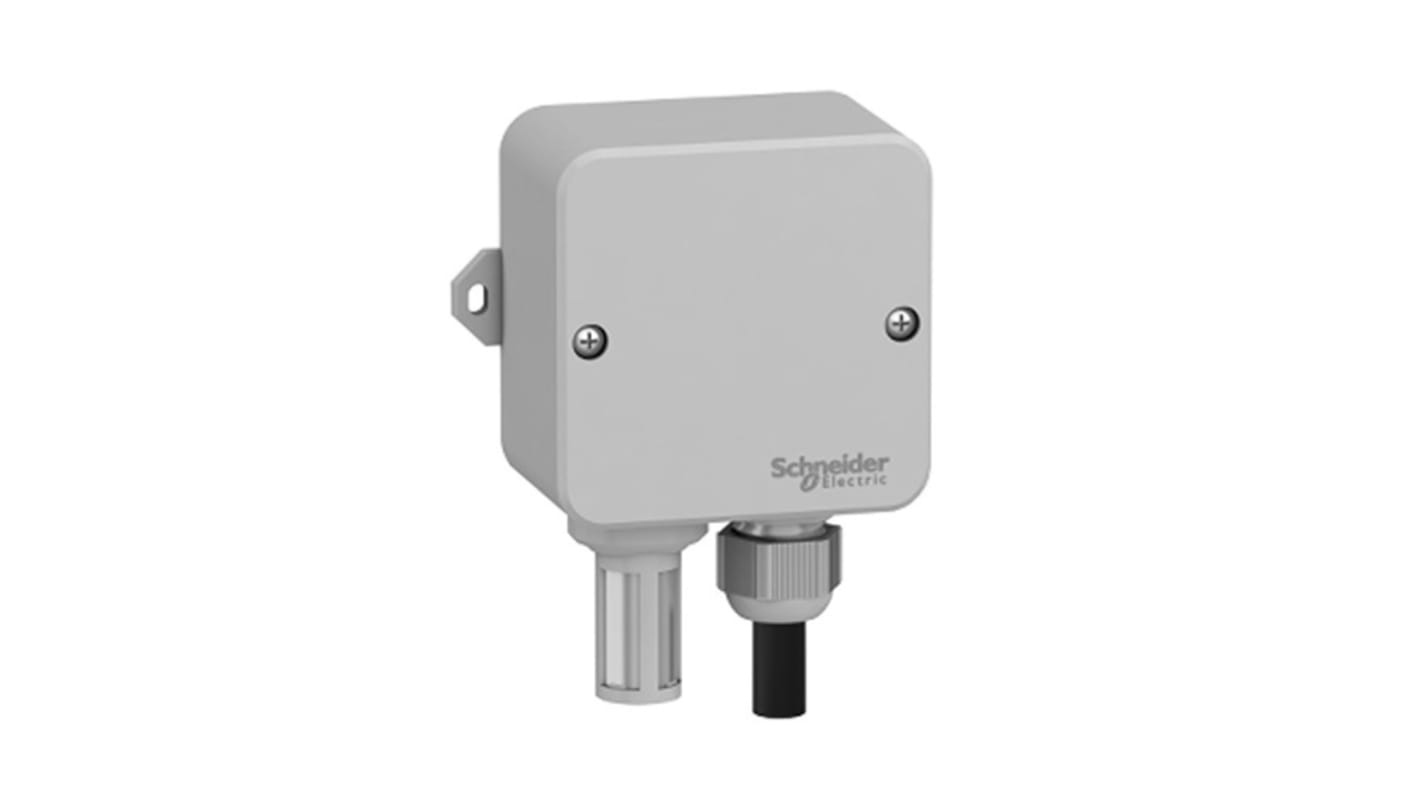

The Schneider Electric Humidity and Temperature Sensor with 4 to 20 mA output is wall mounted and comes with a mounting box. It operates with a rated supply voltage of 9 to 28 V AC or 9 to 40 V DC, with a maximum power consumption of 50 mA. This sensor is ideal for monitoring temperature and humidity in various applications.
Humidity control
Screw clamp terminals
