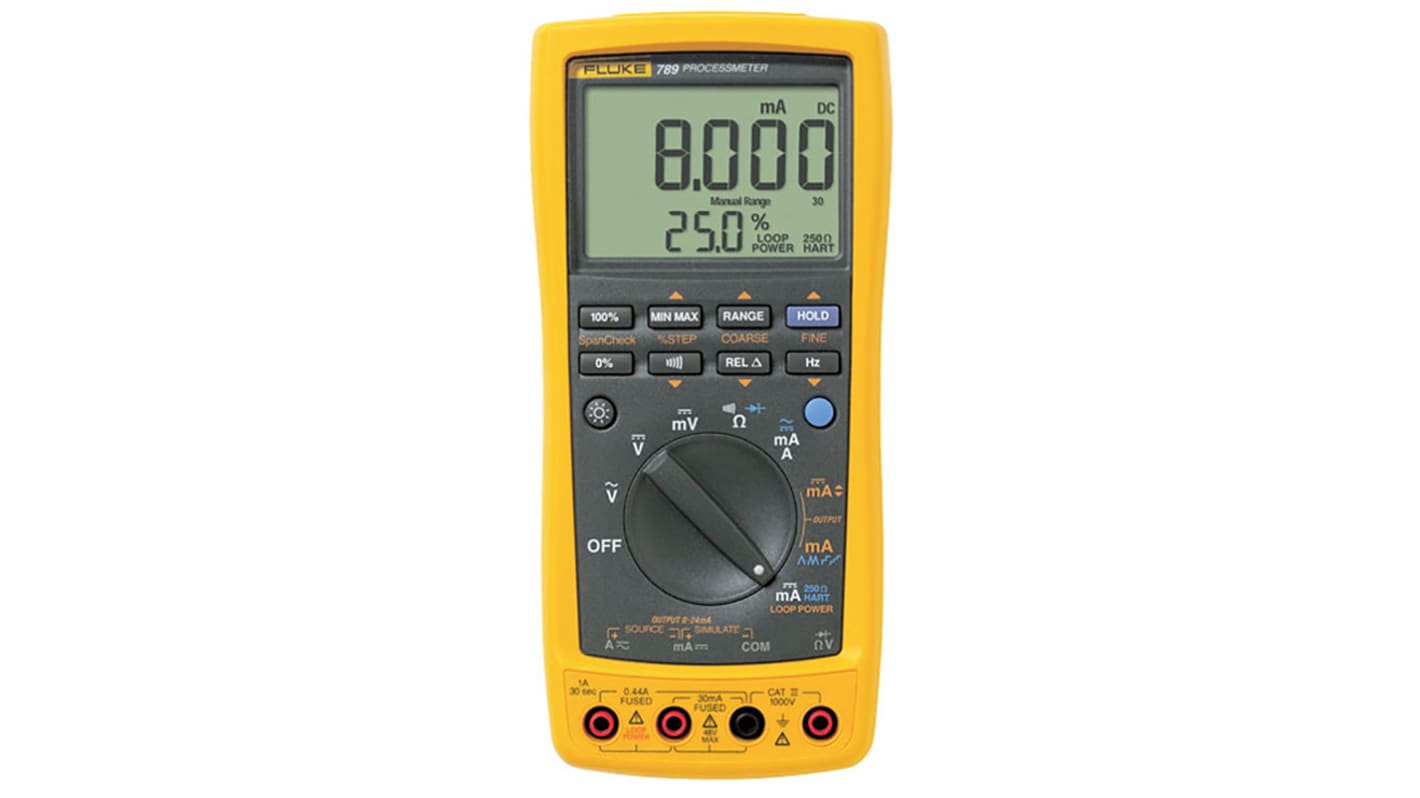

Fluke 789 Multi-Function Calibrator, 30 mA, 1000V ac 50 mm 203 mm 100mm

RS 제품 번호:: 447-7707
Distrelec 제품 번호:: 176-49-395
제조사 부품 번호:: FLUKE-789
제조업체:: Fluke

Fluke 789 Multi-Function Calibrator, 30 mA, 1000V ac 50 mm 203 mm 100mm

Subtotal (1 unit)*

₩2,040,480.00

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 +	₩2,040,480.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 447-7707
Distrelec 제품 번호:: 176-49-395
제조사 부품 번호:: FLUKE-789
제조업체:: Fluke

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Fluke
	Maximum Voltage Measurement	1000V ac
	Product Type	Multi-Function Calibrator
	Accuracy	± 0.02 % + 2 LSD
	Port Connections	HART
	Battery Life	140h
	Maximum Current Measurement	30mA
	Battery Type	AA
	Power Source	Battery
	Safety Category Level	CAT IV, CAT III
	Safety Category Voltage	600, 1000V
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	55°C
	Width	100mm
	Hazardous Area Certification	No
	Weight	610g
	Standards/Approvals	IEC 61010-1
	Length	203mm
	Height	50mm
	Model Number	789
	Resolution	1 mA

	모두 선택
	브랜드 Fluke
	Maximum Voltage Measurement 1000V ac
	Product Type Multi-Function Calibrator
	Accuracy ± 0.02 % + 2 LSD
	Port Connections HART
	Battery Life 140h
	Maximum Current Measurement 30mA
	Battery Type AA
	Power Source Battery
	Safety Category Level CAT IV, CAT III
	Safety Category Voltage 600, 1000V
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 55°C
	Width 100mm
	Hazardous Area Certification No
	Weight 610g
	Standards/Approvals IEC 61010-1
	Length 203mm
	Height 50mm
	Model Number 789
	Resolution 1 mA

COO (Country of Origin):: US

Fluke Multi-Function Calibrator, 0.02% Accuracy, 1000V Maximum Voltage Measurement - FLUKE-789

This multi-function calibrator combines the measurement capabilities of a true‑rms digital multimeter with mA loop sourcing and simulation for field and workshop use. It is designed for technicians working on current loop control and electrical measurements, offering battery operation, HART connectivity and rugged safety ratings suited to demanding industrial environments.

Features & Benefits

• 0.02%+2 accuracy for precise calibration tasks
• 1000V true‑rms measurement enabling high‑voltage diagnostics
• 30mA measurement range with 1mA resolution for loop checks
• AA battery power delivering 140h measurement runtime
• CAT IV600V/CAT III1000V safety rating for industrial locations
• HART port support with 24V loop power for transmitter maintenance

Applications

• Suitable for commissioning and calibrating 4–20mA control loops
• Ideal for on-site HART transmitter configuration and testing
• Used for voltage and current diagnostics in automation panels
• Can be used for periodic calibration of loop-powered sensors
• Used with field controllers during process instrumentation troubleshooting

What input power options are provided for sourcing currents?

It can source up to 20.000mA from internal AA batteries and simulate up to 20.000mA using an external 15–48V loop supply, both able to overrange to 24.000mA.

How does the device cope with varied ambient temperatures?

Operational limits span -20°C to 55°C with a specified temperature coefficient of 0.05xaccuracy per °C outside 18–28°C.

What protection and approvals support use in industrial sites?

The instrument meets IEC61010‑1 safety standards and is rated CAT IV600V/CAT III1000V with Pollution Degree2 specifications.

What measurement modes and display behaviours aid troubleshooting?

It provides simultaneous mA and percentage‑of‑scale readouts, min/max/average/hold/relative modes, and true‑rms AC measurement to 1000V.

What output drive and compliance are available for loop supplies?

Internal output offers 24V compliance or 1200Ω drive at 20mA, while the 24V loop supply delivers greater than 24V into 250Ω at 20mA.

Supplied with

AC175 alligator clips, AA 1.5 V alkaline batteries (x4, installed), TL71 safety-designed test lead set
