Datasheet - PRC30-NIST

COO (Country of Origin):: TW

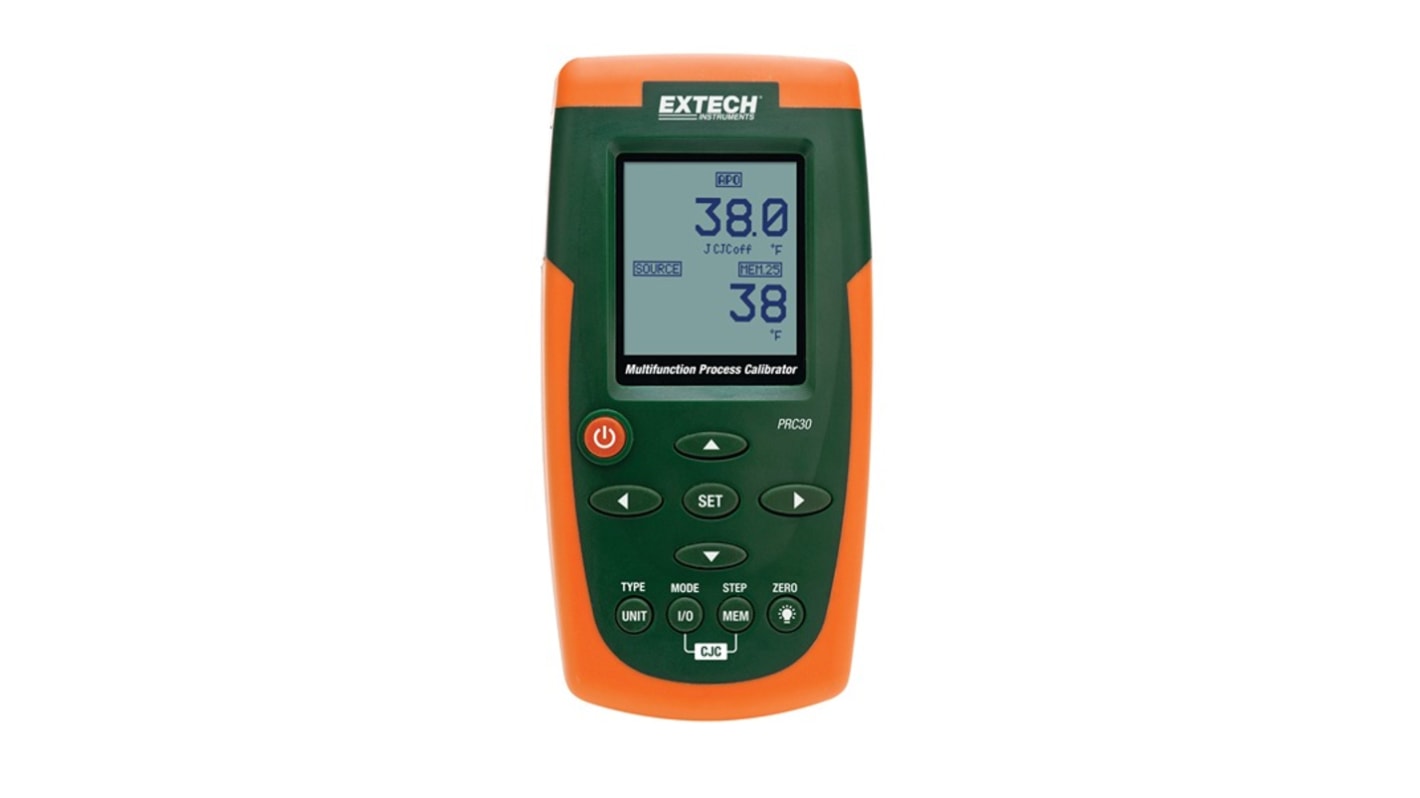

The FLIR Multifunction Process Calibrator is a precision sourcing and measurement device designed for thermocouples, mA, mV, and V devices. It is ideal for lab and field calibration, temperature control troubleshooting, process device calibration and simulation, field test and service, and bench research and development.

Palm sized double molded housing with a large dot matrix backlit LCD for easy viewing
High accuracy calibration function simulates precise thermocouple outputs for calibrating various devices
24V Loop Power for powering external devices
Zero adjustment and auto zero when power on and changing modes for efficiency
Standard banana I/O ports for convenient connectivity
Large battery bank for extended work cycle and continuous work cycle with external power adapter included

모두 선택	제품 정보	값
	브랜드	Extech
	Maximum Voltage Measurement	20V
	Maximum Current Measurement	50mA
	Dimensions	6.3 x 3.2 x 1.7in
	Model Number p	PRC30-NIST

	모두 선택
	브랜드 Extech
	Maximum Voltage Measurement 20V
	Maximum Current Measurement 50mA
	Dimensions 6.3 x 3.2 x 1.7in
	Model Number p PRC30-NIST

Extech PRC30-NIST Multi Function Calibrator, 50mA, 20V, 6.3 x 3.2 x 1.7in
