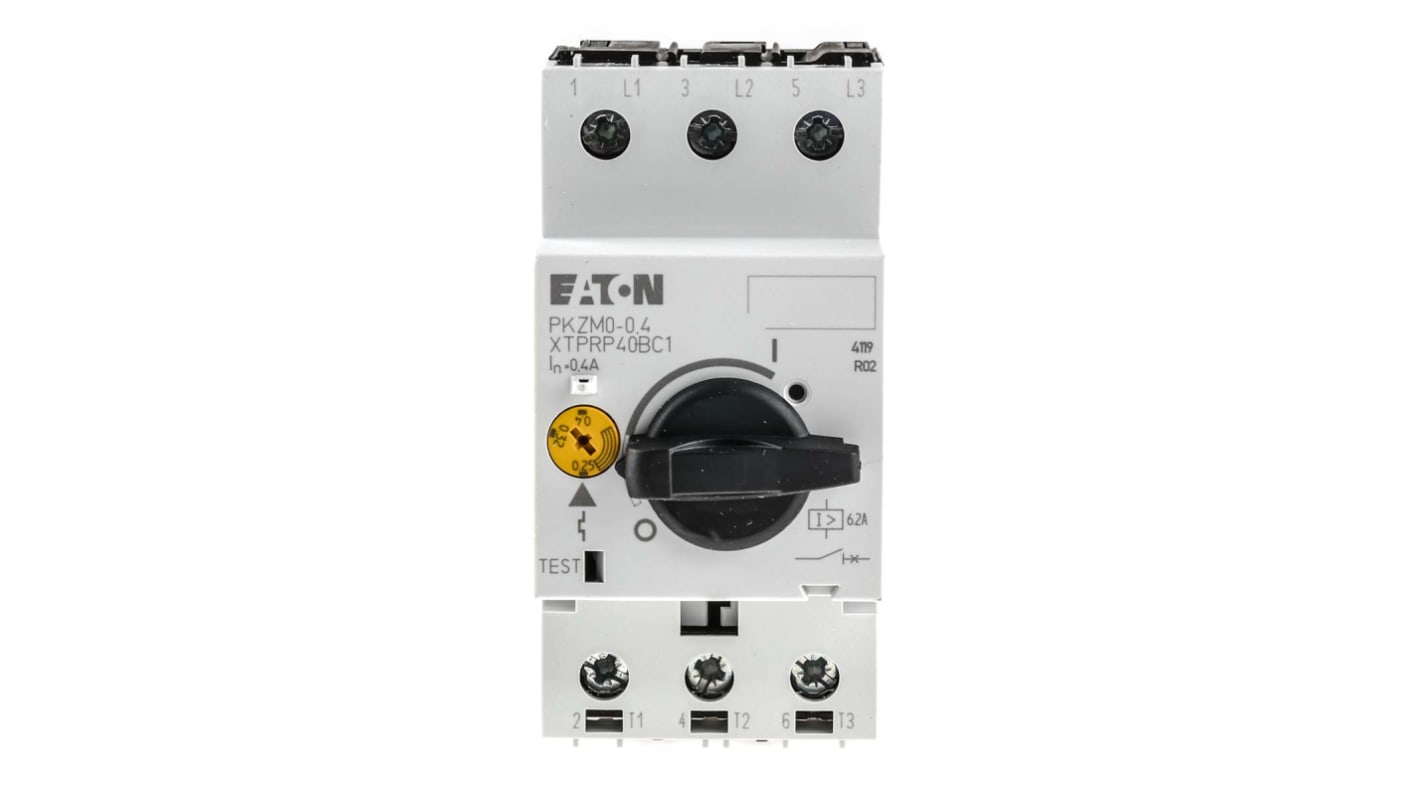

Eaton 0.25 → 0.4 A Motor Protection Circuit Breaker, 690 V ac
- RS 제품 번호:
- 818-126
- 제조사 부품 번호:
- 072732 PKZM0-0,4
- 제조업체:
- Eaton
가격 개당**
₩145,090.40
18 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
---|---|
1 + | ₩145,090.40 |
**다른 단위에 대한 가격 표시
- RS 제품 번호:
- 818-126
- 제조사 부품 번호:
- 072732 PKZM0-0,4
- 제조업체:
- Eaton
- COO (Country of Origin):
- DE
PKZM0 Rotary Switch Operated MPCB
Modular Motor Protective Circuit Breakers designed for use with add-on contactor modules and accessories which provide isolation, short circuit and thermal protection. The units are DIN-rail mounting and part of the xStart family of control gear products, and a range of connection and wiring accessories are available to speed up assembly work and minimise wiring errors.,Various enclosure options are available, see PKZM Enclosures range.
Features & Benefits
Rated operating voltage 690Vac
Operating temperature range -25°C to +55°C
Temperature compensated range -5°C to +40°C
Adjustable current trip level, 0.6 – 1.0 x nominal rating
Short-circuit trip level (fixed) 14x nominal rating
Single-phase-failure sensitivity to IEC60947-4-1
Dimensions 195 x 45 x 77 (HxWxD) mm
Rotary switch operation with padlockable handle option, see accessories
On/Off/Tripped indication may be locked in the "off" position with handle
Operating temperature range -25°C to +55°C
Temperature compensated range -5°C to +40°C
Adjustable current trip level, 0.6 – 1.0 x nominal rating
Short-circuit trip level (fixed) 14x nominal rating
Single-phase-failure sensitivity to IEC60947-4-1
Dimensions 195 x 45 x 77 (HxWxD) mm
Rotary switch operation with padlockable handle option, see accessories
On/Off/Tripped indication may be locked in the "off" position with handle
How do I select the right Motor Protection Circuit Breaker?
MPCBs are more critical now than ever. Most infrastructures now rely on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation and cooling. These systems are vital in ensuring business continues as usual, therefore must be protected against overcurrent's, thermal overloads and similar problems.
To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.
Standards
IEC (EN60) 947-1 general, 947-2 Circuit breakers, 1-4 switch disconnectors, 1-5 Motor starters, 1-6 Electrical equipment of machines
Approvals
UL, CSA, LROS, GL
Eaton Motor Protection Circuit Breaker, 0.25 to 0.4A Current Rating, 690V AC Supply - PKZM 0 Series - 072732 PKZM0-0,4
Manage and protect your electrical motor with this motor protection circuit breaker from Eaton. It acts as an intermediary between devices to safeguard against faults like short circuits, high voltage overloads and relay shutdowns. This means less interruption to your processes and reduced downtime. For extra protection, the unit can also detect phase failures. As it's resistant to mechanical shock and suitable for use in hazardous areas where explosive atmospheres may be present, this breaker is a safe choice for demanding environments. You can use it in heating, cooling and ventilation applications in industrial and commercial environments.
Features & Benefits
• Screw terminals hold wiring securely, so there's little chance of conductors accidentally working loose
• Long mechanical lifespan of up to 6 million operations for consistent reliability throughout its service life
• Turn button actuator that's simple to control manually
• Protected against direct contact when actuated from the front for operator safety
• Long mechanical lifespan of up to 6 million operations for consistent reliability throughout its service life
• Turn button actuator that's simple to control manually
• Protected against direct contact when actuated from the front for operator safety
Why does this motor protection circuit breaker have a test function?
This circuit breaker's test setting lets you check that the device is in good working order in a controlled setting before installing it in a live situation where you depend on it for safety.
속성 | 값 |
---|---|
Current Rating | 0.25 → 0.4 A |
Motor Protection Component | Circuit Breaker |
Supply Voltage | 690 V ac |
Series | PKZM 0 |
Overall Length | 93mm |
Overall Width | 45mm |
Overall Depth | 76mm |
Minimum Operating Temperature | -25°C |
Voltage Rating | 690 V ac |
Maximum Operating Temperature | +55°C |
Number of Poles | 3P |
Terminal Type | Screw |
Breaking Capacity | 60 kA |
