Siemens 0.1 kW Servo Drive, 200/240 V, 1 Phase, 3.1 A

RS 제품 번호:: 211-6983
Distrelec 제품 번호:: 302-64-241
제조사 부품 번호:: 6SL3210-5HB10-1UF0
제조업체:: Siemens

Siemens 0.1 kW Servo Drive, 200/240 V, 1 Phase, 3.1 A

사용할 수 없음

RS는 더 이상 이 제품을 입고하지 않습니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

Siemens 0.1 kW Motor Controller, 200/240 V, 3 Phase, 1.4 A, Motor Management Function

RS 제품 번호: 447-050

개당

₩1,313,392.44

RS 제품 번호:: 211-6983
Distrelec 제품 번호:: 302-64-241
제조사 부품 번호:: 6SL3210-5HB10-1UF0
제조업체:: Siemens

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siemens
	Number of Phases	1
	Product Type	Servo Drive
	Supply Voltage	200/240 V
	Output Voltage	240 V
	Current Rating	3.1 A
	Power Rating	0.1kW
	Overall Length	170mm
	Overall Width	45mm
	Overall Depth	172.4 mm
	IP Rating	IP20
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	EAC
	Distrelec Product Id	30264241

	모두 선택
	브랜드 Siemens
	Number of Phases 1
	Product Type Servo Drive
	Supply Voltage 200/240 V
	Output Voltage 240 V
	Current Rating 3.1 A
	Power Rating 0.1kW
	Overall Length 170mm
	Overall Width 45mm
	Overall Depth 172.4 mm
	IP Rating IP20
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Standards/Approvals EAC
	Distrelec Product Id 30264241

COO (Country of Origin):: CN

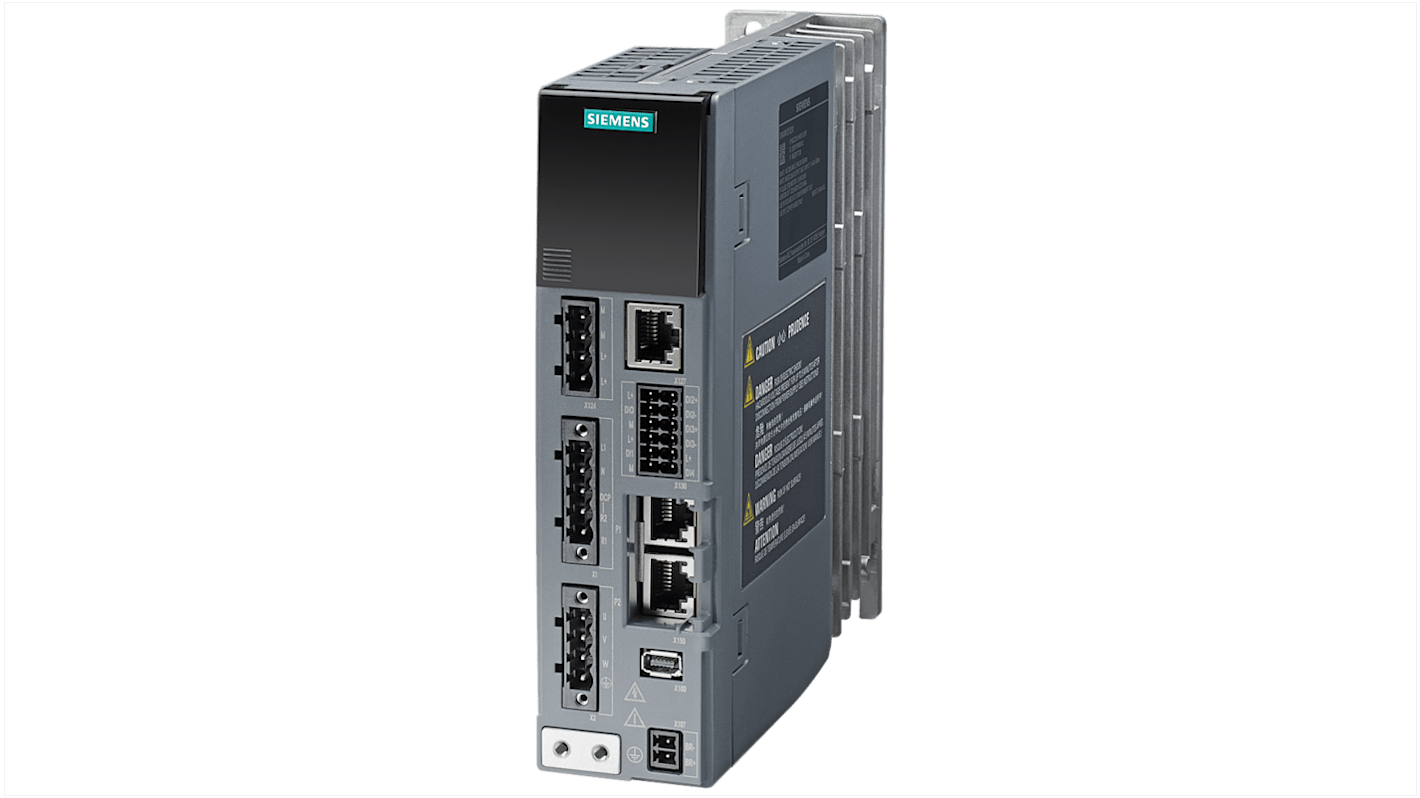

Siemens Servo Drive, 1.4A Current Rating, 0.1kW Power Rating - 6SL3210-5HB10-1UF0

This servo drive is a compact, high-performance solution for various industrial automation applications. Designed for optimised mechanical control, it operates within a stringent temperature range of 0°C to +50°C. The device measures 170mm in length, 45mm in width, and has a depth of 172.4mm, making it suitable for limited installation spaces.

Features & Benefits

• Operates on a single-phase supply voltage of 200 to 240 V

• Delivers a rated power of 0.1kW for efficient performance

• Supports fast communication through PROFINET connectivity

• Max output frequency for precise control is up to 550Hz

• Features convection cooling for effective thermal management

• Compact dimensions facilitate installation in tight spaces

Applications

• Used for controlling high-performance servo motors in machinery

• Ideal for automation systems requiring reliable power regulation

• Suitable for vertical wall mounting in crowded environments

• Effective in systems requiring precise and responsive operation

What maximum current can the servo drive handle during operation?

The device has a rated current of 1.4A, with a maximum output current of 3.1A, ensuring robust performance under demanding conditions.

How does the drive manage cooling during operation?

It utilises convection cooling to maintain optimal operating temperatures, ensuring reliability across its service range.

What are the requirements for installation altitude?

The drive is designed for installation at altitudes up to 1,000m, making it versatile for various applications.

Can external filters be connected to the servo drive?

Yes, it supports an external filter connection, allowing for a maximum motor cable length of 50m to enhance system flexibility.
