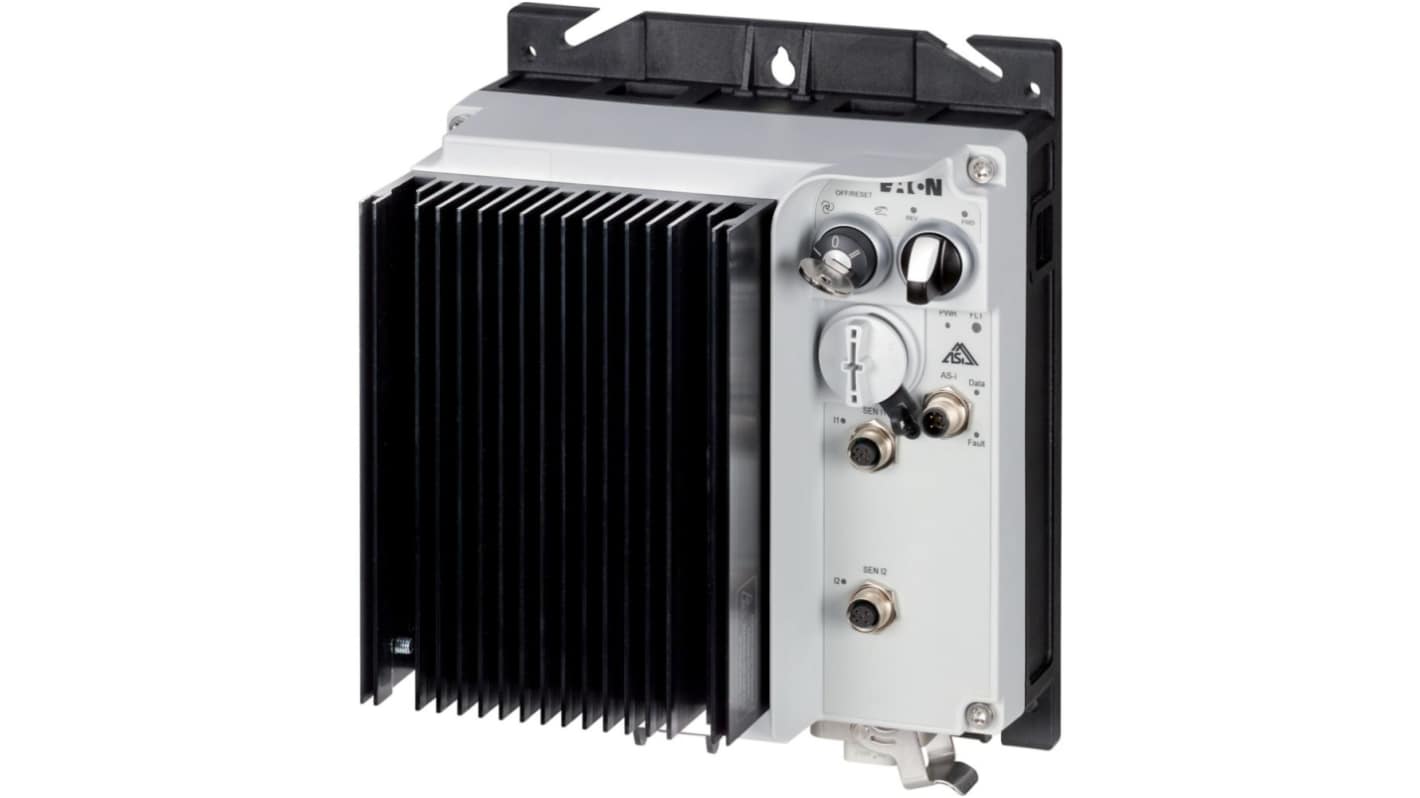

Eaton 0.75 kW Motor Controller, 400/480 V ac, 3 Phase, 2.4 A, Speed Controller Function
- RS 제품 번호:
- 253-063
- 제조사 부품 번호:
- 198543 RASP5-2402A31-5120000S1
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩2,633,748.40
일시적 품절
- 2026년 1월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,633,748.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 253-063
- 제조사 부품 번호:
- 198543 RASP5-2402A31-5120000S1
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Motor Controller | |
| Number of Phases | 3 | |
| Control Function | Speed Controller | |
| Output Voltage | 500 V | |
| Supply Voltage | 400/480 V ac | |
| Current Rating | 2.4 A | |
| Power Rating | 0.75kW | |
| Overall Length | 157mm | |
| Overall Width | 220mm | |
| Overall Depth | 270 mm | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | UL approval CE IEC/EN 61800-5-1 RoHS UL 61800-5-1 | |
| Series | Moeller | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Motor Controller | ||
Number of Phases 3 | ||
Control Function Speed Controller | ||
Output Voltage 500 V | ||
Supply Voltage 400/480 V ac | ||
Current Rating 2.4 A | ||
Power Rating 0.75kW | ||
Overall Length 157mm | ||
Overall Width 220mm | ||
Overall Depth 270 mm | ||
IP Rating IP65 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals UL approval CE IEC/EN 61800-5-1 RoHS UL 61800-5-1 | ||
Series Moeller | ||
- COO (Country of Origin):
- GB
The Eaton Speed controller, designed for efficiency and reliability, is a perfect solution for a variety of industrial and commercial applications. Featuring advanced sensor less vector control technology, this device provides superior performance in managing motor operations. With a robust design and flexible connectivity options, it accommodates multiple configurations and requirements.
Energy efficient design maximises performance while reducing overall consumption
Key switch positions allow for easy monitoring and manual operation adjustments
Support for multiple sensor inputs improves safety and operational control
Lightweight construction simplifies installation in constrained spaces
Advanced overload protection features ensure safe operation under varying load conditions
