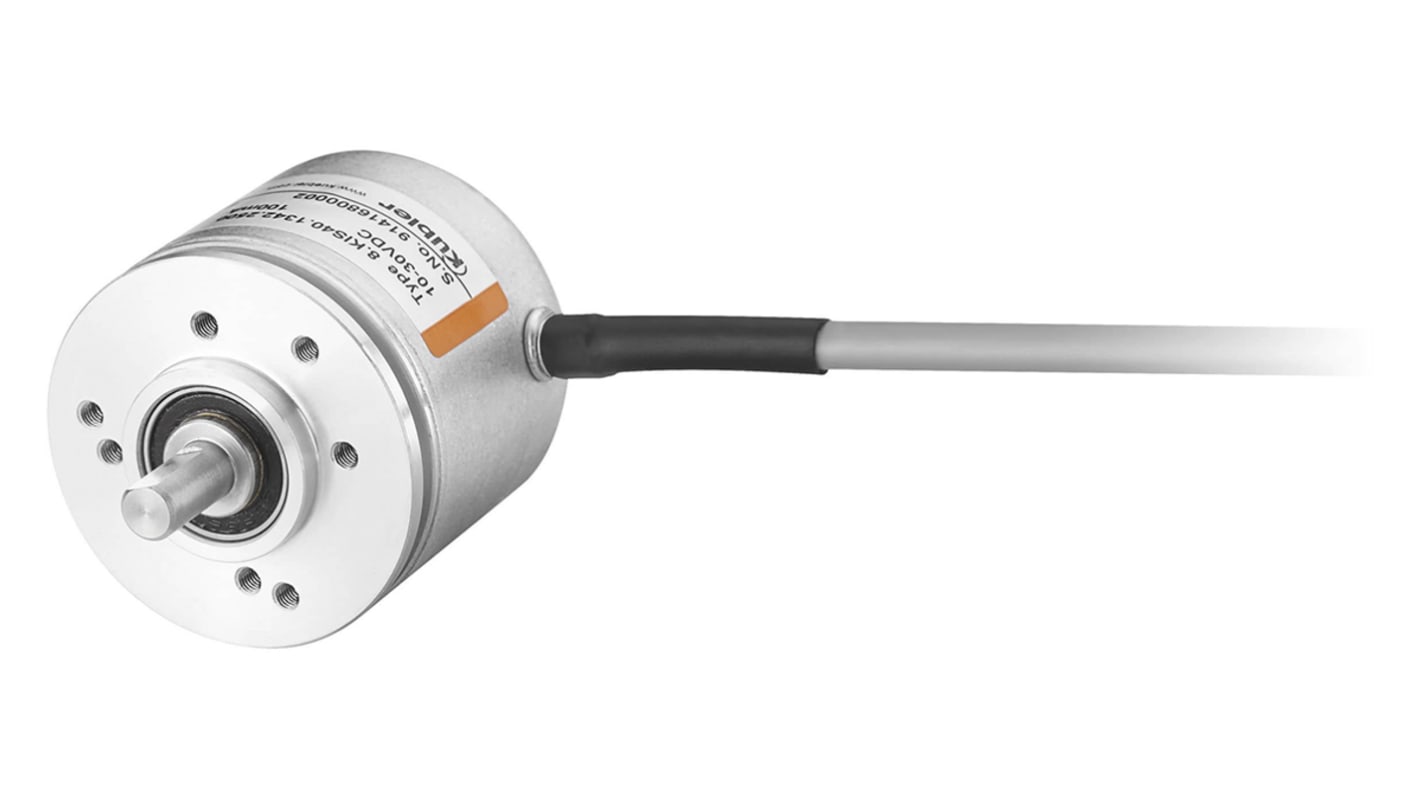

Kübler KIS40 Series Incremental Incremental Encoder, 500 ppr, RS422 Signal, Solid Type, 6mm Shaft
- RS 제품 번호:
- 918-9082
- 제조사 부품 번호:
- 8.KIS40.1362.0500
- 제조업체:
- Kübler
- RS 제품 번호:
- 918-9082
- 제조사 부품 번호:
- 8.KIS40.1362.0500
- 제조업체:
- Kübler
참조 문서
제정법과 컴플라이언스
제품 세부 사항
KIS40 Incremental Encoder
Professional range of Kubler incremental encoders from the KIS40 series. The encoders have optical technology that has been designed for high-cost effectiveness. Resolutions of up to 2500 Pulses per revolutions available. The encoders are ideal for tight mounting spaces and small machines and appliances.
Radial Cable
Push-Pull or RS422 output circuit
Push-Pull or RS422 output circuit
사양
속성 | 값 |
|---|---|
| Encoder Technology | Incremental |
| Series | KIS40 |
| Pulses Per Revolution | 500 |
| Output Signal Type | RS422 |
| Shaft Type | Solid |
| Shaft Diameter | 6mm |
| Supply Voltage | 5 V dc |
| IP Rating | IP64 |
| Interface | RS422 |
| Overall Width | 40mm |
| Overall Depth | 61.3mm |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Synchro Flange |
| Maximum Operating Temperature | +70°C |
| Switching Frequency | 250 (Pulse) kHz |
| Current Rating | 90 mA |
