대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩201,630.00
재고있음
- 63 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 - 4 | ₩201,630.00 |
| 5 + | ₩165,947.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 909-4209
- 제조업체:
- RS PRO
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Encoder Technology | Linear Measuring | |
| Stroke | 50mm | |
| IP Rating | IP65 | |
| Overall Height | 8.6mm | |
| Overall Width | 28.1mm | |
| Overall Depth | 77mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Encoder Technology Linear Measuring | ||
Stroke 50mm | ||
IP Rating IP65 | ||
Overall Height 8.6mm | ||
Overall Width 28.1mm | ||
Overall Depth 77mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||

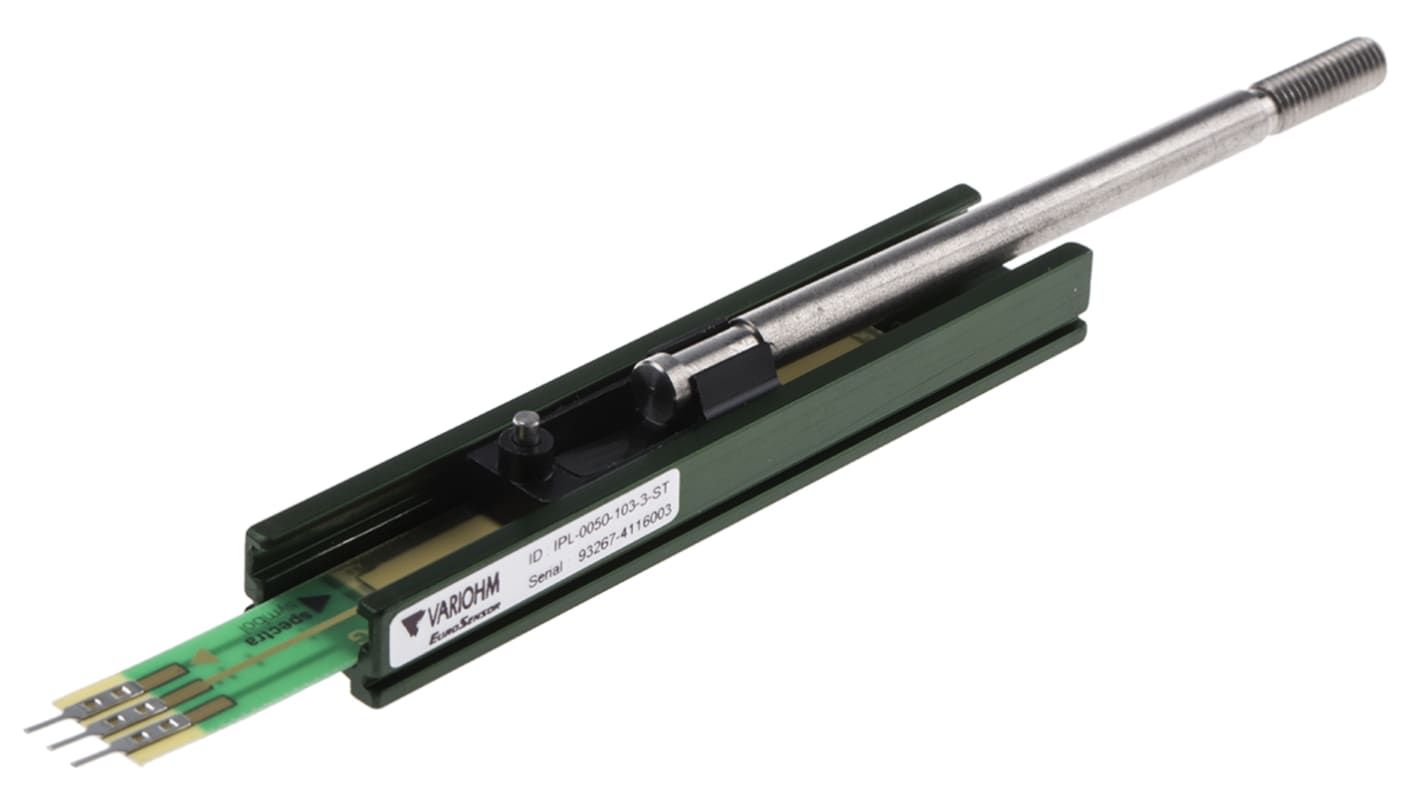

RS PRO Linear Transducer
This linear position sensor from RS PRO is designed to provide accurate positional measurements of linear motion control devices. It's typically used in factory automation setups, assembly lines and conveying mechanisms.
The unit uses a sealed membrane linear potentiometer set up, so it's compact, lightweight and easy to maintain. It's also highly accurate and can measure repeatedly without losing sensitivity. It features supportive housing that makes it easy to mount onto any device.
This unit has been stringently tested for quality and reliability. It can withstand a wide operating temperature range of -40°C to +85°C, making it suitable for harsh industrial setups. Plus, it has an Ingress Protection (IP) rating of IP65, meaning it's resistant to dust and low-pressure waterjets.
The unit uses a sealed membrane linear potentiometer set up, so it's compact, lightweight and easy to maintain. It's also highly accurate and can measure repeatedly without losing sensitivity. It features supportive housing that makes it easy to mount onto any device.
This unit has been stringently tested for quality and reliability. It can withstand a wide operating temperature range of -40°C to +85°C, making it suitable for harsh industrial setups. Plus, it has an Ingress Protection (IP) rating of IP65, meaning it's resistant to dust and low-pressure waterjets.
Features and Benefits
• Electrical travel of 50 mm
• Ingress Protection (IP) rating of IP65
• Operating temperature range of -40°C to +85°C
• Overall depth of 77 mm
• Overall height of 8.6 mm
• Overall width of 28.1 mm
• Resistance of 10 kΩ
• Starting force of 3 N (Newtons)
• Stroke of 50 mm
• Ingress Protection (IP) rating of IP65
• Operating temperature range of -40°C to +85°C
• Overall depth of 77 mm
• Overall height of 8.6 mm
• Overall width of 28.1 mm
• Resistance of 10 kΩ
• Starting force of 3 N (Newtons)
• Stroke of 50 mm
