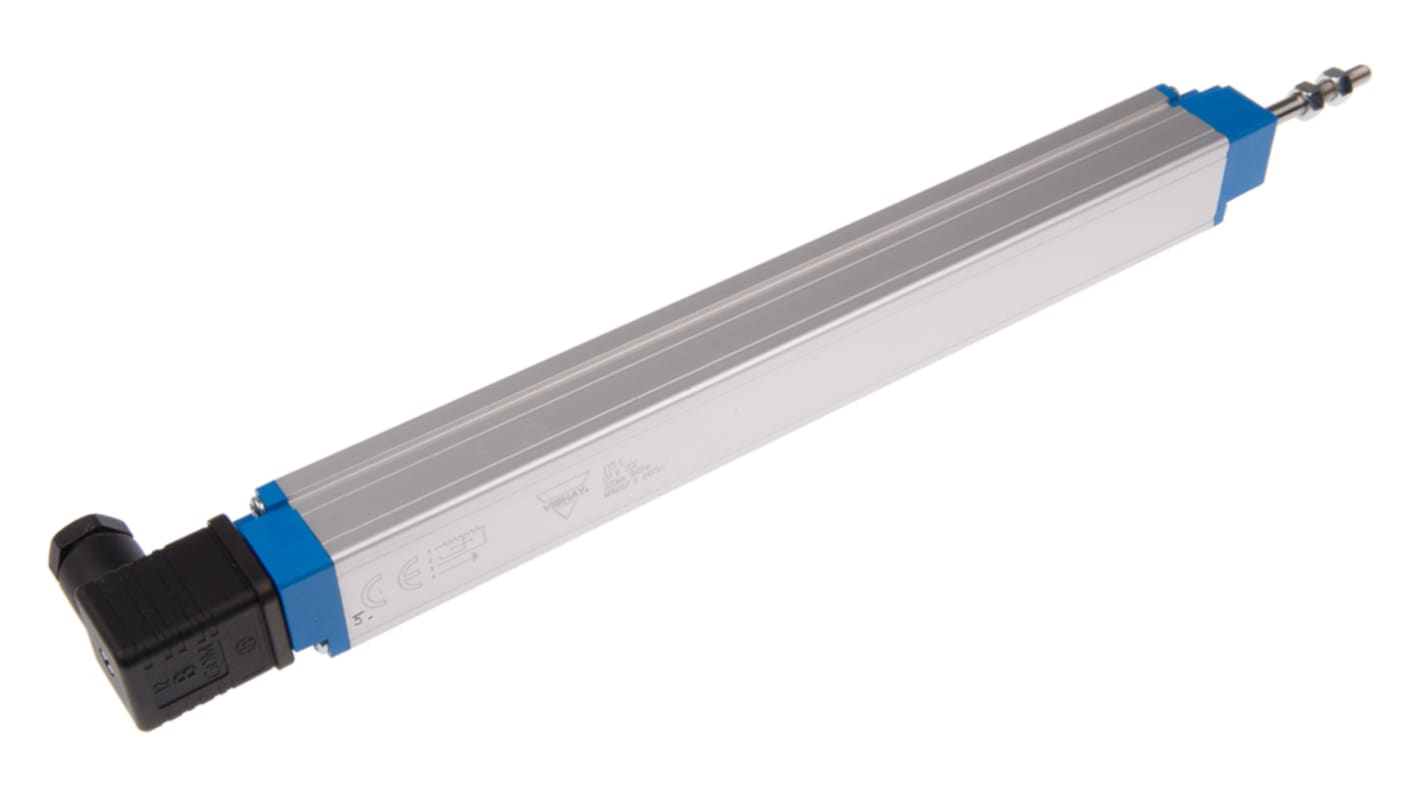

Vishay Sfernice REC 115L Series Slide movement sensors for cylinder position servo control Universal model covering applications using references W06002, W06007 and W06008 (ball joint option for the first two of these) Plastic track technology Measuring accuracy unaffected by temperature thanks to voltage division mode of operation High level of accuracy and extremely long service life DIN 43650 hydraulic connector outputs, mounted via moveable brackets (supplied with transducer) A DIN 43650 hydraulic connector will be required, see data sheet for connection details
The Vishay REC 115 L series, conductive plastic precision linear transducer has measurement range up to 1000 mm with high accuracy.
Measurement range 25 mm to 1000 mm High accuracy ± 1 % down to ± 0.025 % Excellent repeatability Essentially infinite resolution Non sensitive to temperature variations
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
