- RS 제품 번호:
- 712-5421
- 제조사 부품 번호:
- DFS60B-S1PK10000
- 제조업체:
- Sick
- RS 제품 번호:
- 712-5421
- 제조사 부품 번호:
- DFS60B-S1PK10000
- 제조업체:
- Sick
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

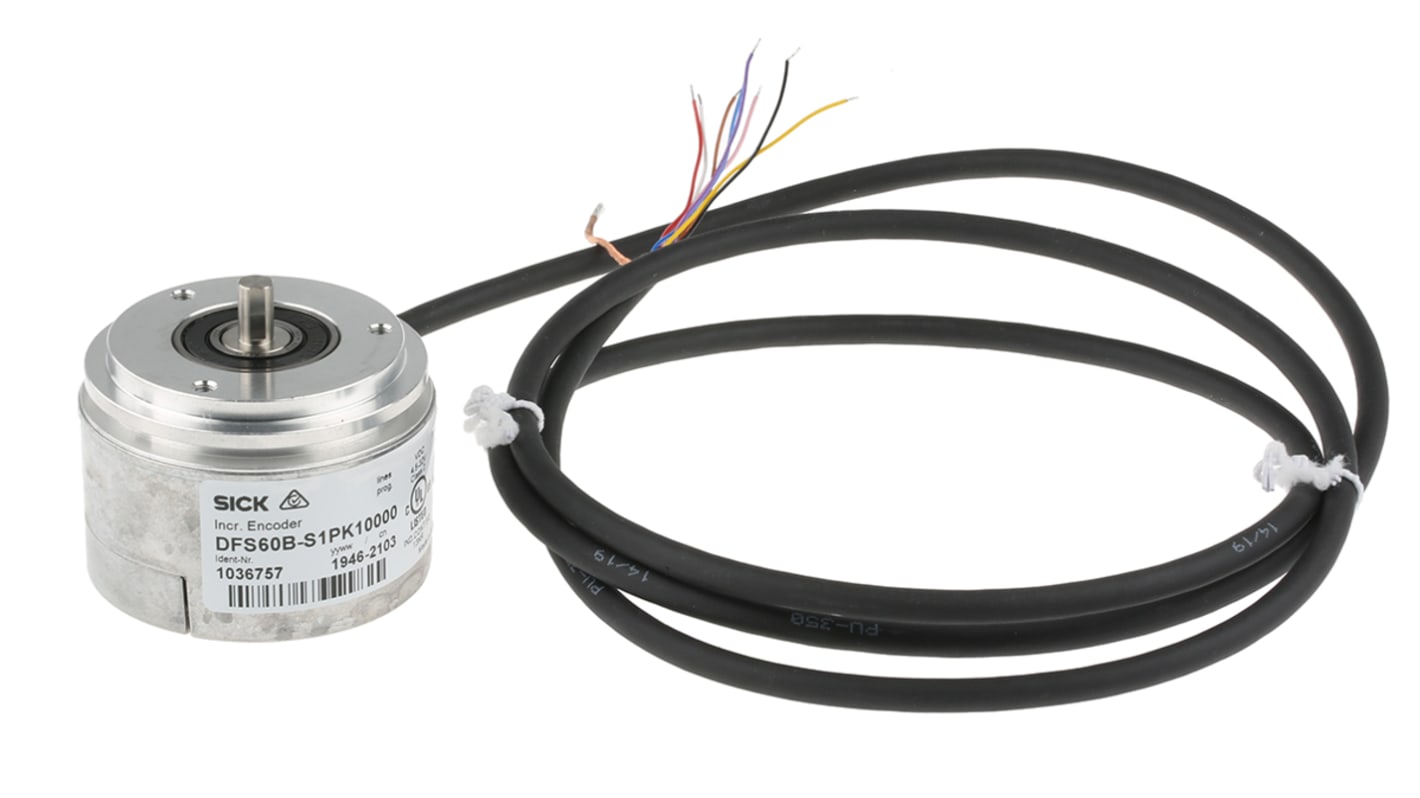

Servo Flange - 6mm Shaft
SICK STEGMANN High-resolution Incremental Encoders
The DFS60 programmable incremental encoders can be programmed to produce any ppr from 1 to 10000. In addition , the output signals are software selectable: TTL/RS422 or HTL/Push-pull, making the DFS60 a truly universal incremental encoder. The programming tool consists of a USB lead and Windows XP/Vista/7 compatible software, designed for ease of use, enabling on site programming in seconds.
Any PPR can be programmed from 1 - 10000
Programmable output levels TTL (RS422) or HTL (Push-pull)
Solid shaft or hollow shaft design
Electronic adjustment of zero pulse width and position
Sealed to IP65
Highly robust due to metal code disc
Wide temperature range -30 → +100 °C
A flexible, reliable encoder for multi-purpose use
Programmable output levels TTL (RS422) or HTL (Push-pull)
Solid shaft or hollow shaft design
Electronic adjustment of zero pulse width and position
Sealed to IP65
Highly robust due to metal code disc
Wide temperature range -30 → +100 °C
A flexible, reliable encoder for multi-purpose use
사양
속성 | 값 |
---|---|
Encoder Technology | Incremental |
Pulses Per Revolution | 10000 |
Output Signal Type | HTL, TTL |
Shaft Type | Solid |
Shaft Diameter | 6mm |
Supply Voltage | 5 → 32 V dc |
IP Rating | IP65, IP67 |
Overall Height | 43.1mm |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
Switching Frequency | 600 kHz |
