Gefran Linear Measuring Linear Transducer
- RS 제품 번호:
- 283-0522
- 제조사 부품 번호:
- LT-M-0200-S 0000X000X00
- 제조업체:
- Gefran
3 <재고있음> 5-9영업일내 홍콩 발송
16 <재고있음> 5-9영업일내 홍콩 발송
단가 개당
₩382,753.585
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩382,753.585 |
| 10 - 49 | ₩367,443.373 |
| 50 + | ₩352,133.16 |
- RS 제품 번호:
- 283-0522
- 제조사 부품 번호:
- LT-M-0200-S 0000X000X00
- 제조업체:
- Gefran
참조 문서
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- IT
제품 세부 사항

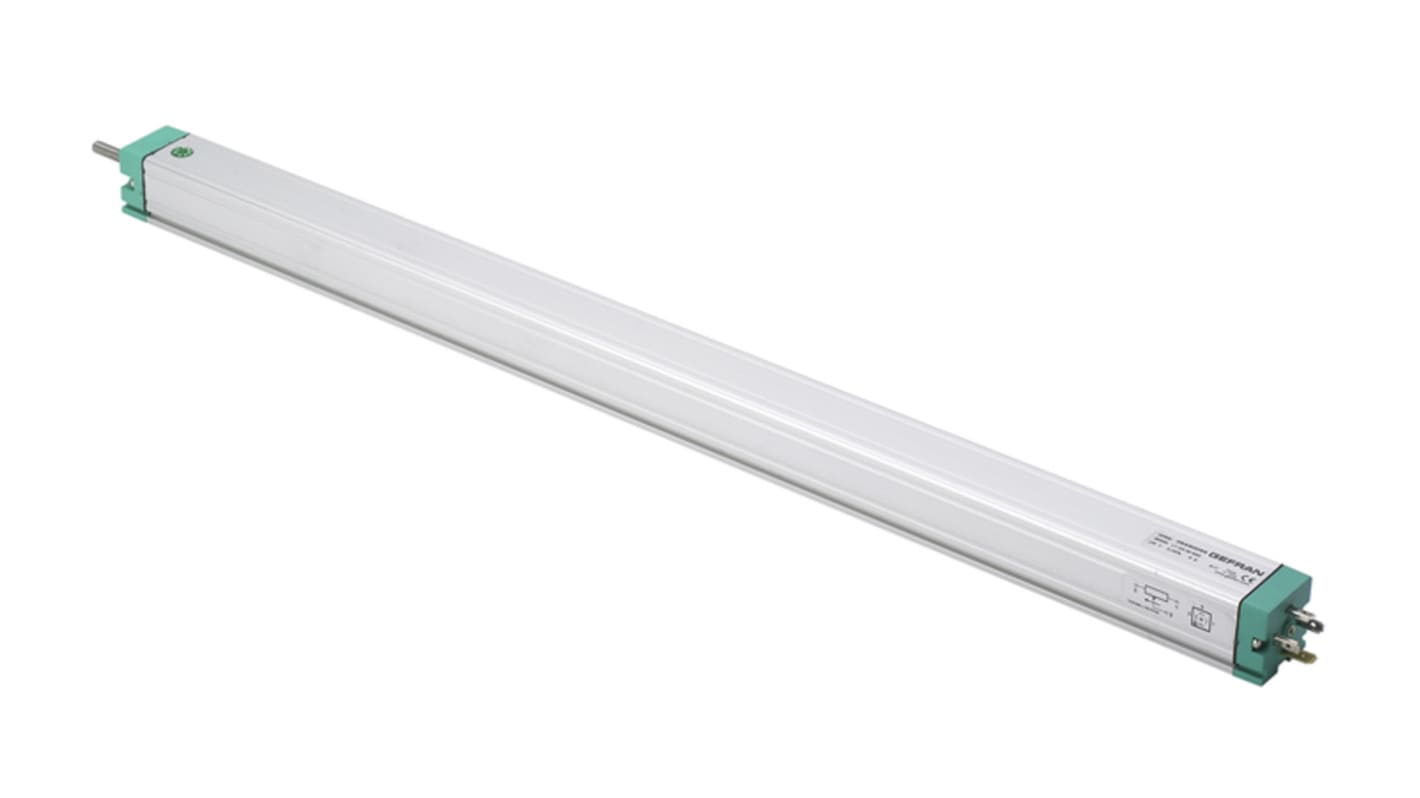

Gefran LT series linear position transducers
Main characteristics:
50 → 900 mm strokes
Pull shaft, M6 threaded
Independent linearity: ±0.05%
Infinite resolution
Absence of electrical signal variation in output, outside the theoretical electrical stroke
Maximum displacement speed 5 m/s
Operating temperature: -30 → 100°C
Electrical connections:
Pull shaft, M6 threaded
Independent linearity: ±0.05%
Infinite resolution
Absence of electrical signal variation in output, outside the theoretical electrical stroke
Maximum displacement speed 5 m/s
Operating temperature: -30 → 100°C
Electrical connections:
3-pole LTH connector
4-pole LTM connector DIN43650-ISO4400
4-pole LTM connector DIN43650-ISO4400
Life duration: >25 ´ 106m strokes, or >100 ´ 106 manoeuvres, whichever is less (within C.E.U.)
Degree of protection IP60
Degree of protection IP60
사양
속성 | 값 |
|---|---|
| Encoder Technology | Linear Measuring |
| Stroke | 200mm |
| Supply Voltage | 60 V |
| IP Rating | IP60 |
| Overall Height | 34.5mm |
| Overall Width | 520mm |
| Overall Depth | 33mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +100°C |
