Wachendorff Incremental Incremental Encoder, 16384 ppr, HTL, TTL Signal, Solid shaft Type
- RS 제품 번호:
- 249-6511
- 제조사 부품 번호:
- 58B06XXBASSC8
- 제조업체:
- Wachendorff
- RS 제품 번호:
- 249-6511
- 제조사 부품 번호:
- 58B06XXBASSC8
- 제조업체:
- Wachendorff
제정법과 컴플라이언스
제외
- COO (Country of Origin):
- DE
제품 세부 사항

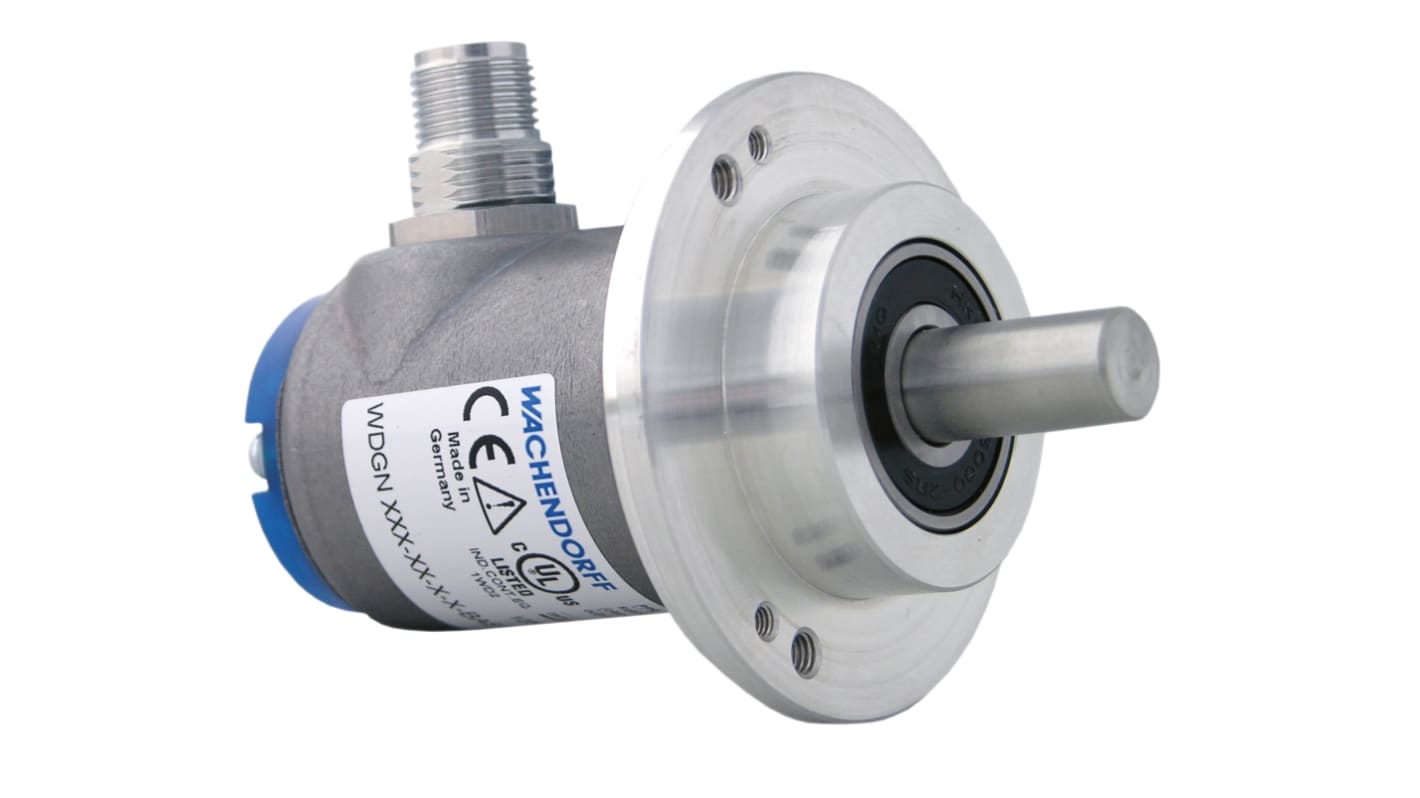

The Wachendorff WDGN 58B has high output frequency up to 1 MHz and Power supply up to 32 VDC. It has operating temperature of -40°C to 85°C and Protection class of IP65 and IP67.
WDGN incremental encoders, configurable via NFC, are based on patented magnetic sensor technology with the highest accuracy and resolution.
To Setup and to configurate the incremental encoder WDGN via NFC please download the cost free Wachendorff App via the QR Code at the top of the page next to the image.
To Setup and to configurate the incremental encoder WDGN via NFC please download the cost free Wachendorff App via the QR Code at the top of the page next to the image.
사양
속성 | 값 |
|---|---|
| Encoder Technology | Incremental |
| Pulses Per Revolution | 16384 |
| Maximum Revolutions | 8000rpm |
| Output Signal Type | HTL, TTL |
| Shaft Type | Solid shaft |
| Interface | NFC |
