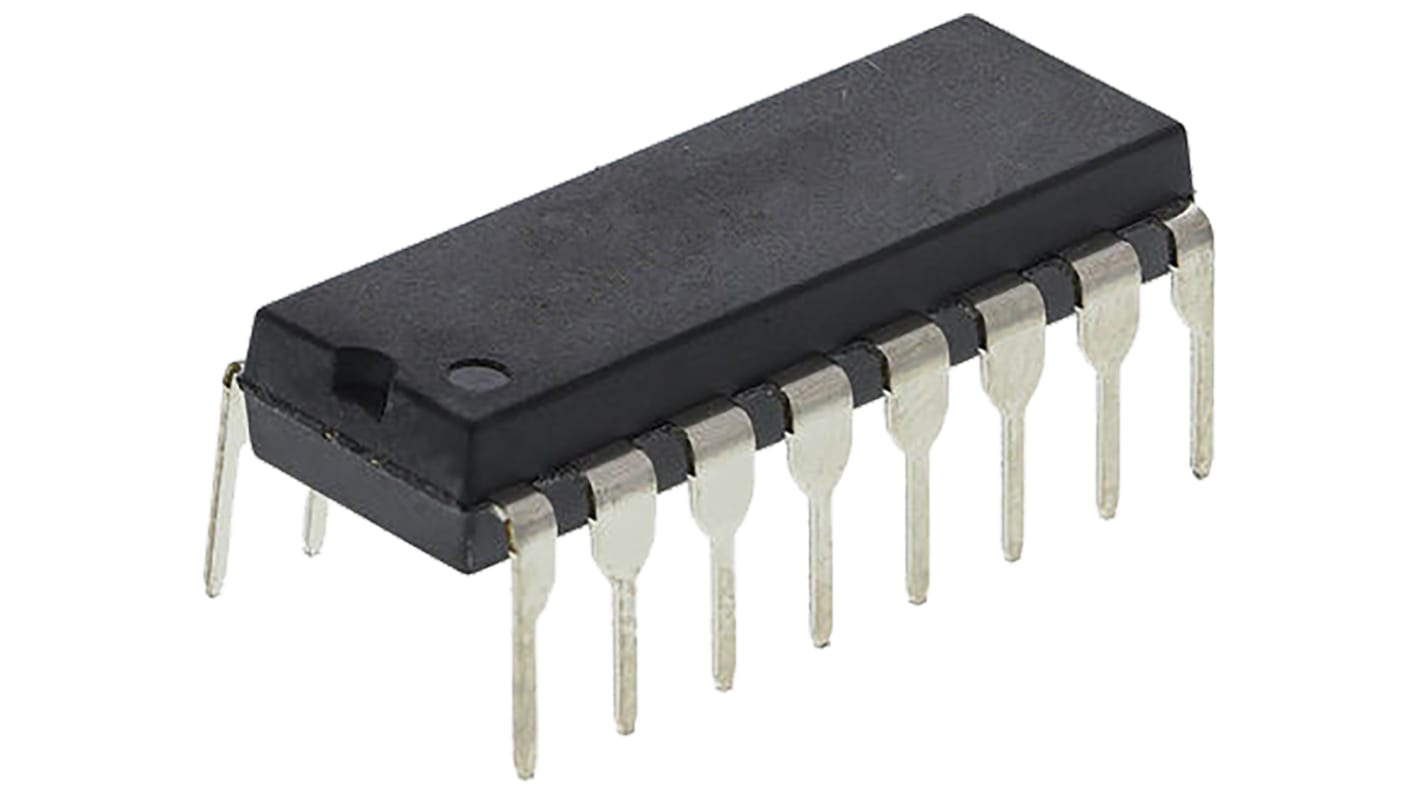

Toshiba TC74HC423AP(F), Dual Monostable Multivibrator 5.2mA, 16-Pin PDIP
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
45 <재고있음> 5-9영업일내 홍콩 발송
단가 Each (In a Pack of 5)
₩1,055.55
| 수량 | 한(1)개당 | 한(1)팩당* |
| 5 - 20 | ₩1,055.55 | ₩5,277.75 |
| 25 - 120 | ₩943.95 | ₩4,721.30 |
| 125 - 245 | ₩897.45 | ₩4,485.70 |
| 250 - 495 | ₩852.50 | ₩4,262.50 |
| 500 + | ₩799.80 | ₩3,997.45 |
| *다른 단위에 대한 가격 표시 | ||
추가완료!
- RS 제품 번호:
- 540-0001
- 제조사 부품 번호:
- TC74HC423AP(F)
- 제조업체:
- Toshiba
- COO (Country of Origin):
- JP
TC74HC Series, Toshiba
| 속성 | 값 |
| Logic Family | HC |
| Logic Function | Monostable Multivibrator |
| Number of Elements per Chip | 2 |
| Maximum High Level Output Current | -5.2mA |
| Maximum Low Level Output Current | 5.2mA |
| Minimum Pulse Width | 13 ns |
| Maximum Propagation Delay Time @ Maximum CL | 210 ns @ 2 V |
| Maximum Quiescent Current | 0.004mA |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Dimensions | 19.25 x 6.4 x 3.5mm |
| Height | 3.5mm |
| Length | 19.25mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
| Width | 6.4mm |
| Maximum Operating Supply Voltage | 6 V |
| Maximum Operating Temperature | +85 °C |
