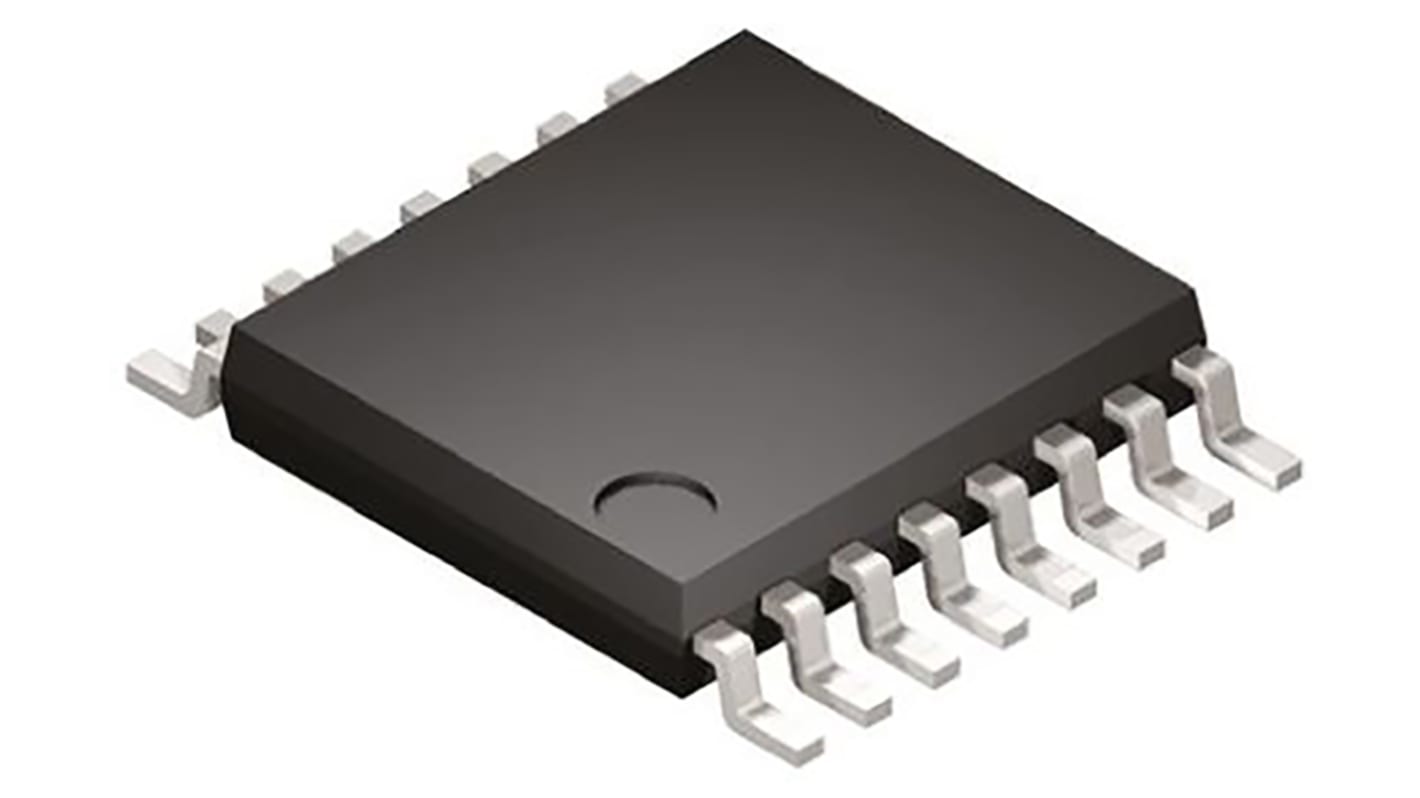

Texas Instruments SN74LV221APWR, Dual Monostable Multivibrator 12mA, 16-Pin TSSOP
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
일시 품절-문의: krenquiry@rs-components.com
단가 Each (On a Reel of 2000)
₩843.20
| 수량 | 한(1)개당 | Per Reel* |
| 2000 + | ₩843.20 | ₩1,686,090.00 |
| *다른 단위에 대한 가격 표시 | ||
추가완료!
- RS 제품 번호:
- 162-7430
- 제조사 부품 번호:
- SN74LV221APWR
- 제조업체:
- Texas Instruments
- COO (Country of Origin):
- MY
74LV Family, Texas Instruments
| 속성 | 값 |
| Logic Family | LV |
| Logic Function | Monostable Multivibrator |
| Number of Elements per Chip | 2 |
| Maximum High Level Output Current | -12mA |
| Maximum Low Level Output Current | 12mA |
| Minimum Pulse Width | 5 ns |
| Maximum Propagation Delay Time @ Maximum CL | 36 ns @ 2.5 V |
| Maximum Quiescent Current | 0.02mA |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 16 |
| Dimensions | 5 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Length | 5mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2 V |
| Width | 4.4mm |
| Minimum Operating Temperature | -40 °C |
