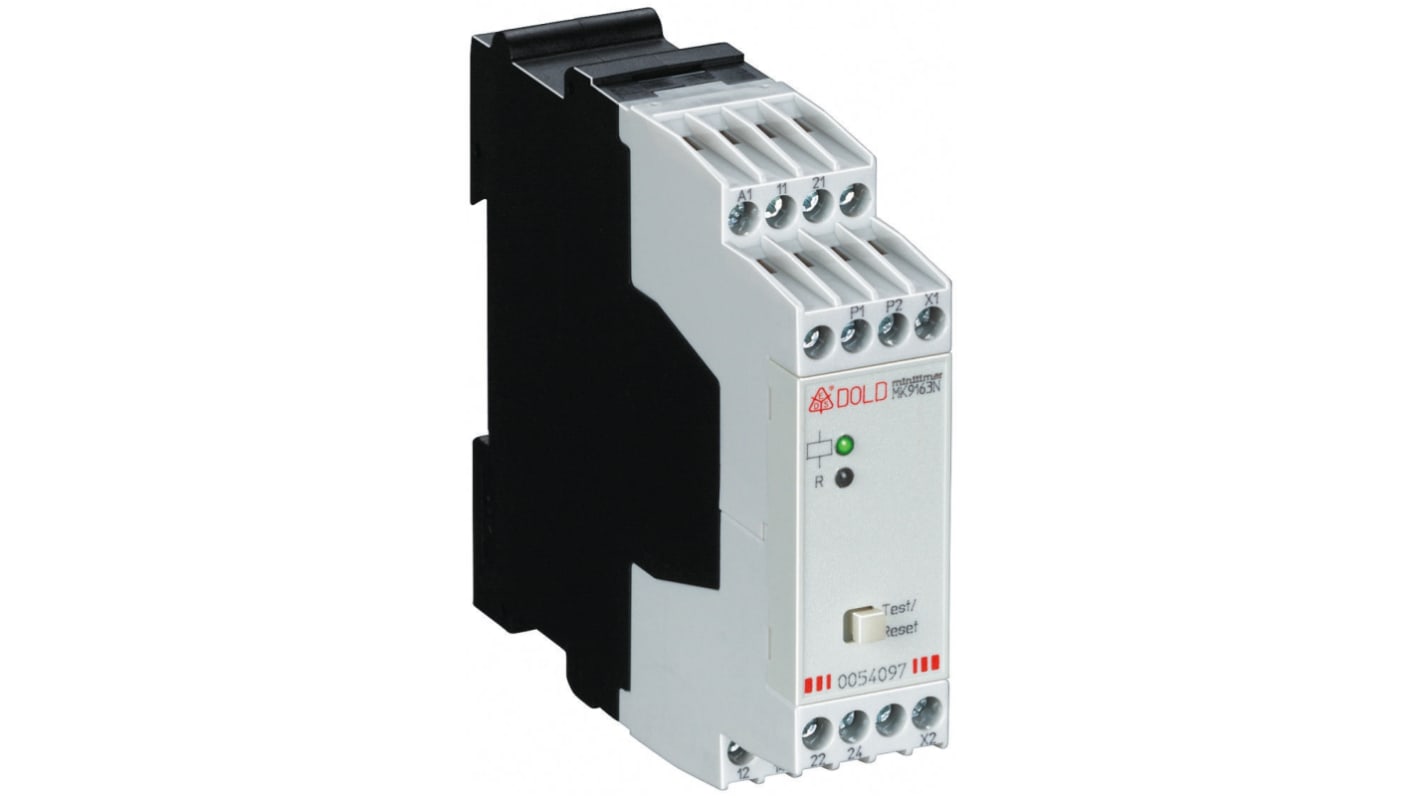

Dold Temperature Monitoring Relay, DPDT, DIN Rail
- RS 제품 번호:
- 500-3408
- 제조사 부품 번호:
- MK9163N.12/100 AC/DC24V
- 제조업체:
- Dold
- RS 제품 번호:
- 500-3408
- 제조사 부품 번호:
- MK9163N.12/100 AC/DC24V
- 제조업체:
- Dold
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
MK 9163N - thermistor motor protection relay
1 input for 1 → 6 thermistors
Closed circuit current principle (output relay not activated in the event of a fault)
LED indicator for auxiliary voltage and contact position
Output contact 2 changeovers
With error memory and reset function
22.5 mm overall width
Closed circuit current principle (output relay not activated in the event of a fault)
LED indicator for auxiliary voltage and contact position
Output contact 2 changeovers
With error memory and reset function
22.5 mm overall width
Thermistor motor protection relay with and without ATEX approval
For detection of
- Temperature limit exceedance
- Wire breakage in sensor circuit
- Short circuit in sensor circuit (ATEX version)
For detection of
- Temperature limit exceedance
- Wire breakage in sensor circuit
- Short circuit in sensor circuit (ATEX version)
Standards
EN 60947-8, EN 60079-14
Group and Category
PTB 03 ATEX 3117
Certificate No.
II (2) GD
Approvals
CE
사양
속성 | 값 |
|---|---|
| Monitoring Application | Temperature |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Time Delay | <40ms |
| Temperature Sensitivity | Overtemperature |
| Series | MK 9163N |
| Height | 90mm |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | +60°C |
| Length | 102mm |
| Dimensions | 102 x 22.5 x 90mm |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
