STMicroelectronics, 32bit ARM Cortex M4, STM32F3 Microcontroller, 72MHz, 128 kB Flash, 48-Pin LQFP
- RS 제품 번호:
- 919-6295
- 제조사 부품 번호:
- STM32F303CBT6TR
- 제조업체:
- STMicroelectronics

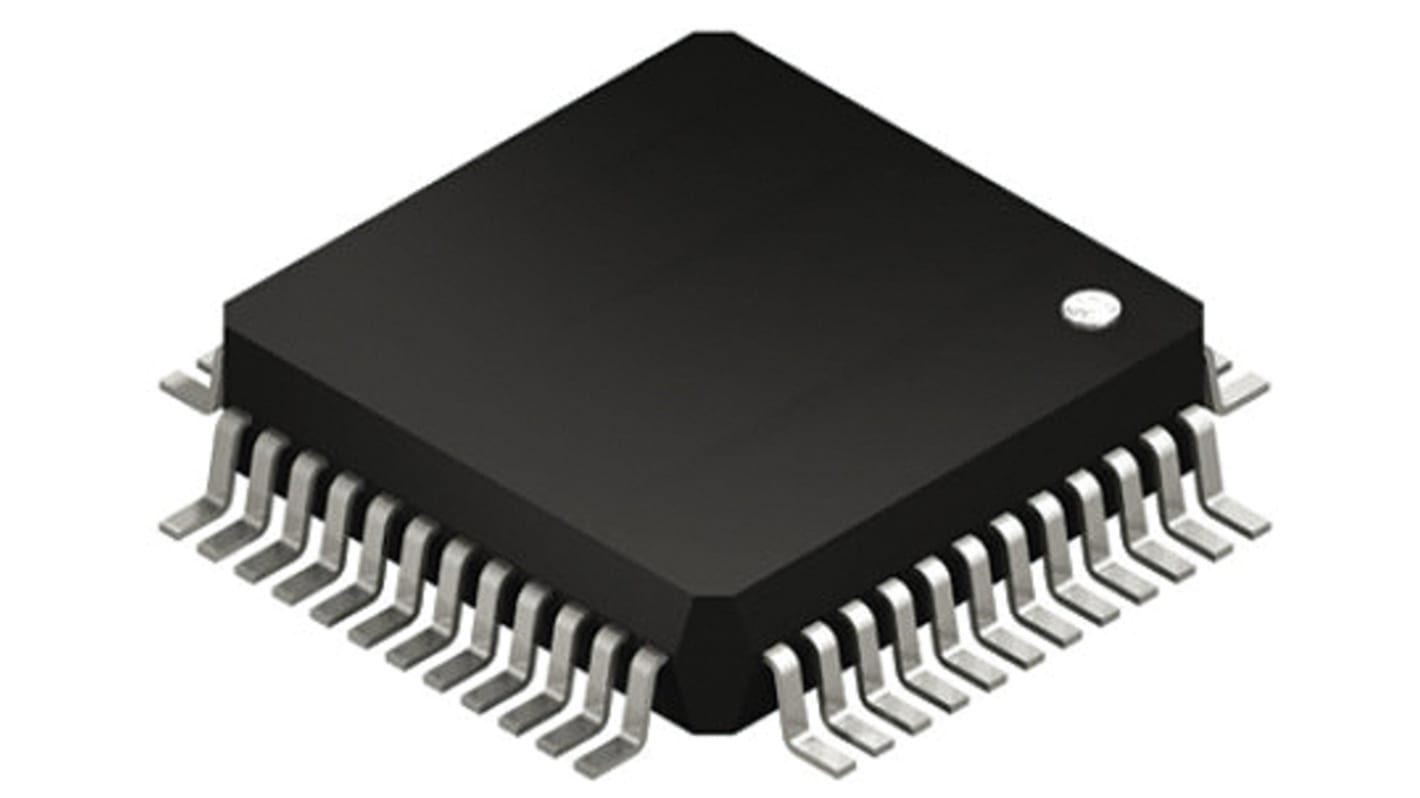

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 reel of 2400 units)*
₩17,971,296.00
- 2026년 3월 31일 부터 배송
수량 | 한팩당 | 릴당* |
|---|---|---|
| 2400 - 2400 | ₩7,488.04 | ₩17,969,942.40 |
| 4800 - 7200 | ₩7,337.64 | ₩17,610,787.20 |
| 9600 + | ₩7,191.00 | ₩17,258,400.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 919-6295
- 제조사 부품 번호:
- STM32F303CBT6TR
- 제조업체:
- STMicroelectronics
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Family Name | STM32F3 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | ARM Cortex M4 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 72MHz | |
| RAM Size | 32 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 5 x 16/32 bit | |
| Number of SPI Channels | 2 | |
| Number of I2C Channels | 2 | |
| Typical Operating Supply Voltage | 3.6 V | |
| Number of UART Channels | 0 | |
| Number of CAN Channels | 1 | |
| Number of USART Channels | 3 | |
| Dimensions | 7.2 x 7.2 x 1.45mm | |
| Pulse Width Modulation | 1 (4 x 32 bit), 2 (4 x 16 bit), 2 (6 x 16 bit) | |
| Number of Ethernet Channels | 0 | |
| Height | 1.45mm | |
| Number of LIN Channels | 1 | |
| Width | 7.2mm | |
| Number of PCI Channels | 0 | |
| Number of ADC Units | 4 | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Length | 7.2mm | |
| ADCs | 39 x 12 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Program Memory Type | Flash | |
| Instruction Set Architecture | DSP | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Family Name STM32F3 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core ARM Cortex M4 | ||
Data Bus Width 32bit | ||
Program Memory Size 128 kB | ||
Maximum Frequency 72MHz | ||
RAM Size 32 kB | ||
USB Channels 1 | ||
Number of PWM Units 5 x 16/32 bit | ||
Number of SPI Channels 2 | ||
Number of I2C Channels 2 | ||
Typical Operating Supply Voltage 3.6 V | ||
Number of UART Channels 0 | ||
Number of CAN Channels 1 | ||
Number of USART Channels 3 | ||
Dimensions 7.2 x 7.2 x 1.45mm | ||
Pulse Width Modulation 1 (4 x 32 bit), 2 (4 x 16 bit), 2 (6 x 16 bit) | ||
Number of Ethernet Channels 0 | ||
Height 1.45mm | ||
Number of LIN Channels 1 | ||
Width 7.2mm | ||
Number of PCI Channels 0 | ||
Number of ADC Units 4 | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Length 7.2mm | ||
ADCs 39 x 12 bit | ||
Maximum Number of Ethernet Channels 0 | ||
Program Memory Type Flash | ||
Instruction Set Architecture DSP | ||
STM32F303/313 Series Microcontrollers, STMicroelectronics
The STM32 F3 ARM® Cortex™ 32-bit RISC core devices operate in the 72MHz frequency range and come with many integrated peripherals including DACs, ADCs, CCM, comparators and motor control timers. The STM32F303/313 microcontroller offers a memory architecture which allows the user to carry out time critical routines in ultrafast RAM memory. The Cortex M4 MCU also features capacitive touch sensing, RTC and USART, SPI, I2C, USB 2.0 FS and CAN 2.0B communication interfaces.
SRAM: up to 40 kB
Voltage operating range: 1.8 V to 3 V
Ultrafast comparators (<30 ns)
Op amp with programmable gain (PGA)
12-bit DACs; 12-bit ADCs with 5 MSPS; 16-bit sigma-delta ADCs
CCM (Core Coupled Memory)
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Programmable gain amplifiers (4 gain ranges)
12-Bit DACs
Fast 12-Bit ADCs (5 MSPS per channel with up to 18MSPS in interleaved mode)
16-Bit sigma-delta ADCs
Fast 144MHz motor control timers, timing resolution better 7ns
