STMicroelectronics, 32bit ARM Cortex M3, STM32F2 Microcontroller, 120MHz, 512 kB Flash, 100-Pin LQFP

RS 제품 번호:: 919-6286
제조사 부품 번호:: STM32F205VET6
제조업체:: STMicroelectronics

STMicroelectronics, 32bit ARM Cortex M3, STM32F2 Microcontroller, 120MHz, 512 kB Flash, 100-Pin LQFP

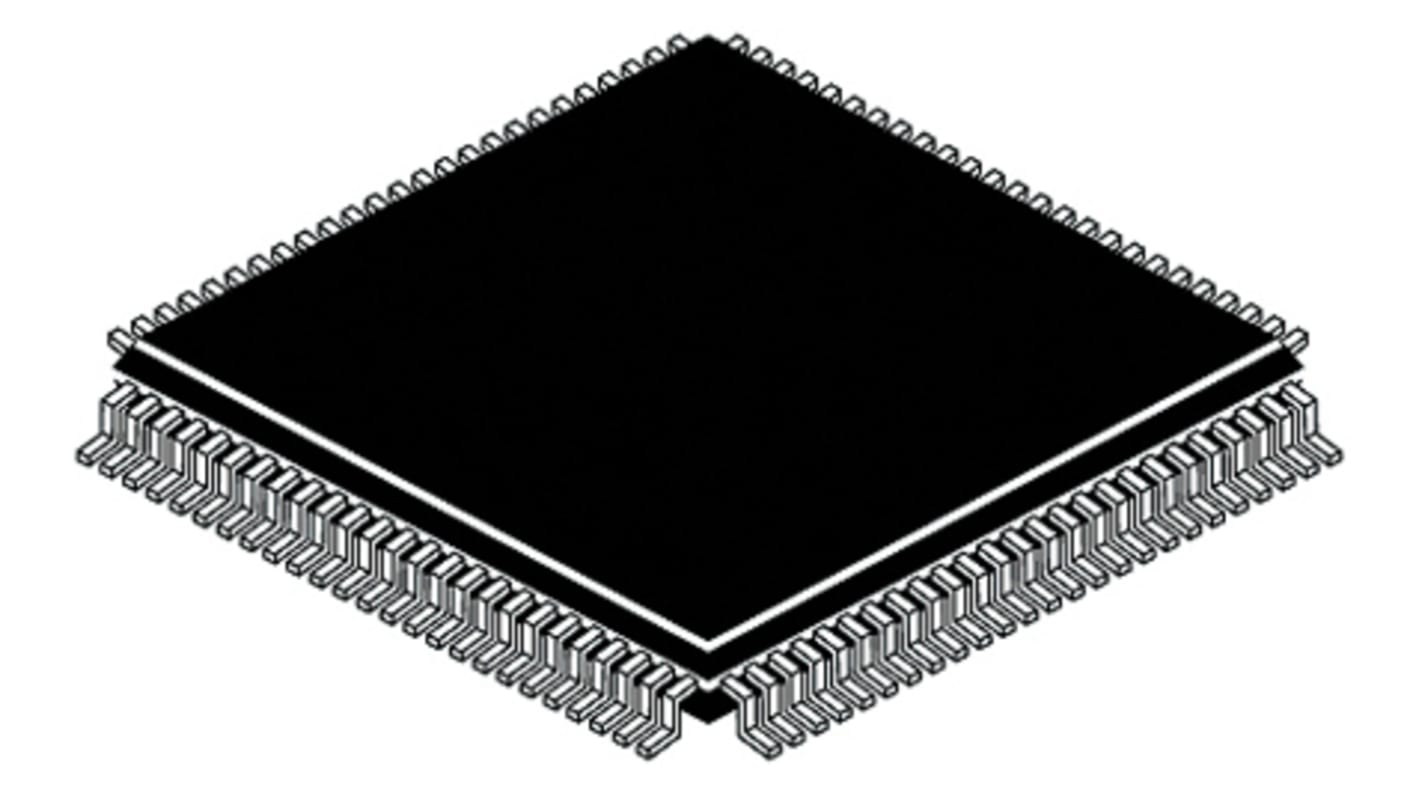

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 tray of 90 units)*

₩1,318,575.60

재고있음

450 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tray*
90 - 360	₩14,650.84	₩1,318,626.36
450 +	₩14,359.44	₩1,292,281.92

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 919-6286
제조사 부품 번호:: STM32F205VET6
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Family Name	STM32F2
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	ARM Cortex M3
	Data Bus Width	32bit
	Program Memory Size	512 kB
	Maximum Frequency	120MHz
	RAM Size	128 kB
	USB Channels	2
	Number of PWM Units	2 x 16 bit
	Number of SPI Channels	3
	Number of USART Channels	4
	Number of I2C Channels	3
	Typical Operating Supply Voltage	3.6 V
	Number of UART Channels	2
	Number of CAN Channels	2
	Number of ADC Units	3
	Pulse Width Modulation	2 (16 bit)
	Dimensions	14 x 14 x 1.45mm
	Height	1.45mm
	Number of LIN Channels	0
	Number of Ethernet Channels	0
	Number of PCI Channels	0
	Minimum Operating Temperature	-40 °C
	Program Memory Type	Flash
	Length	24.1mm
	ADCs	16 x 12 bit
	Maximum Number of Ethernet Channels	0
	Width	24.1mm
	Maximum Operating Temperature	+85 °C

	모두 선택
	브랜드 STMicroelectronics
	Family Name STM32F2
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core ARM Cortex M3
	Data Bus Width 32bit
	Program Memory Size 512 kB
	Maximum Frequency 120MHz
	RAM Size 128 kB
	USB Channels 2
	Number of PWM Units 2 x 16 bit
	Number of SPI Channels 3
	Number of USART Channels 4
	Number of I2C Channels 3
	Typical Operating Supply Voltage 3.6 V
	Number of UART Channels 2
	Number of CAN Channels 2
	Number of ADC Units 3
	Pulse Width Modulation 2 (16 bit)
	Dimensions 14 x 14 x 1.45mm
	Height 1.45mm
	Number of LIN Channels 0
	Number of Ethernet Channels 0
	Number of PCI Channels 0
	Minimum Operating Temperature -40 °C
	Program Memory Type Flash
	Length 24.1mm
	ADCs 16 x 12 bit
	Maximum Number of Ethernet Channels 0
	Width 24.1mm
	Maximum Operating Temperature +85 °C

STM32F205/215, ARM® 32-Bit Cortex™-M3 Microcontrollers

STMicroelectronics high performance ARM® Cortex M3 STM32F205/215 MCU ranges with CPU frequencies up to 120 MHz, up to 1 MB of Flash and advanced connectivity. Applications include motor drive/ application control; Medical equipment; Industrial applications; Alarm systems, video intercom, and HVAC and home audio appliances. The STM32F2x5 ARM processors incorporate 12-bit ADCs, DACs, a RTC, 16-bit timers including two PWM timers for motor control, 32-bit timers, true number random generator (RNG) and are offered in various package types.

Real time memory accelerator (ART Accelerator™)
Low power applications with a set of power saving modes
Different peripherals depending on the microcontroller
I²Cs, SPIs, I²Ss, USARTs, USB OTG high-speed, USB OTG, CANs
Temperature ranges: -40 to +105 °C

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

STM32F2 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex-M3 architectural enhancements.

120MHz Cortex™-M3 CPU
Excellent real-time behaviour
Oustanding power efficiency
Superior and innovative peripherals
Maximum integration
Cross family pin-to-pin, peripheral and software compatibility
