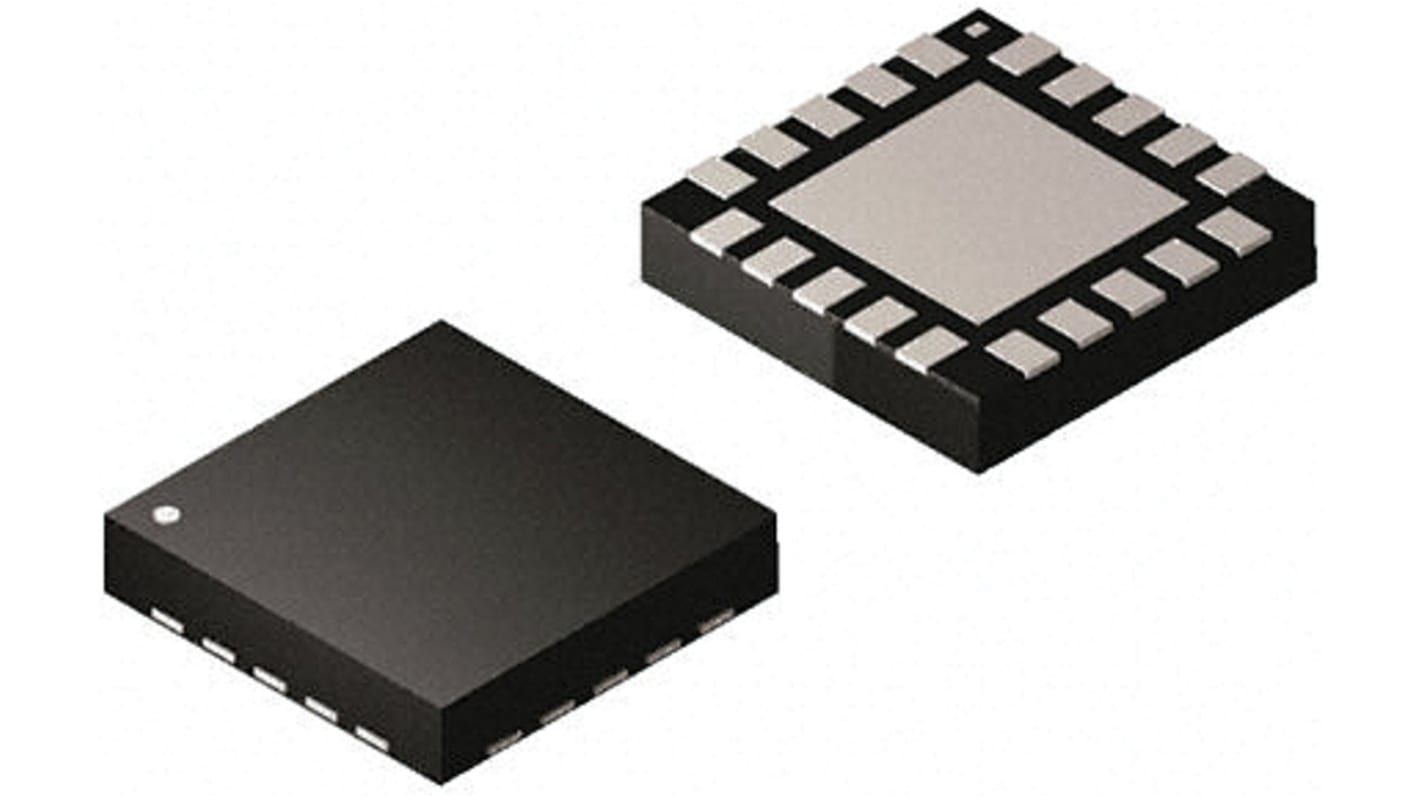

Silicon Labs, 8bit CIP-51, EFM8SB Microcontroller, 25MHz, 2 kB Flash, 20-Pin QFN
- RS 제품 번호:
- 865-6282
- 제조사 부품 번호:
- EFM8SB10F2G-A-QFN20
- 제조업체:
- Silicon Labs
단종
- RS 제품 번호:
- 865-6282
- 제조사 부품 번호:
- EFM8SB10F2G-A-QFN20
- 제조업체:
- Silicon Labs
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Silicon Labs | |
| Family Name | EFM8SB | |
| Package Type | QFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 20 | |
| Device Core | CIP-51 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 2 kB | |
| Maximum Frequency | 25MHz | |
| RAM Size | 256 B | |
| USB Channels | 0 | |
| Number of SPI Channels | 1 | |
| Typical Operating Supply Voltage | 2.4 V | |
| Number of I2C Channels | 1 | |
| Number of UART Channels | 1 | |
| Number of USART Channels | 0 | |
| Number of CAN Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| ADCs | 1 (9 x 12 bit) | |
| Length | 3mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Instruction Set Architecture | MCU | |
| Width | 3mm | |
| Height | 0.55mm | |
| Number of LIN Channels | 0 | |
| Pulse Width Modulation | 1 | |
| Dimensions | 3 x 3 x 0.55mm | |
| Number of PCI Channels | 0 | |
| Program Memory Type | Flash | |
| Number of Ethernet Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
