Texas Instruments TMS320F28027DAS, 32 bit C28x Microcontroller, 60 MHz, 16kB FLASH, 38-Pin TSSOP
- RS 제품 번호:
- 268-3640P
- 제조사 부품 번호:
- TMS320F28027DAS
- 제조업체:
- Texas Instruments

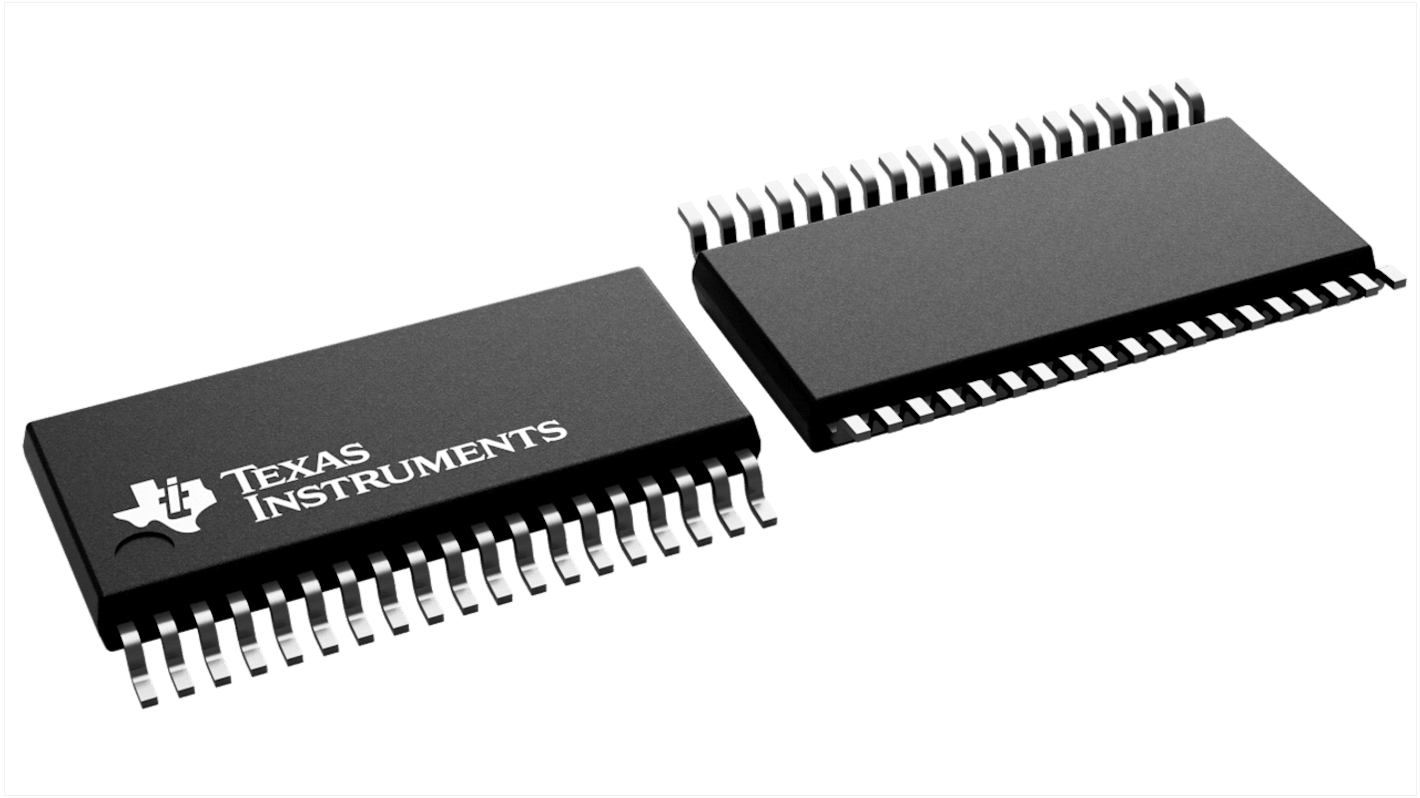

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal 5 units (supplied in a tray)*
₩70,218.00
재고있음
- 80 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 5 - 9 | ₩14,043.60 |
| 10 + | ₩12,953.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 268-3640P
- 제조사 부품 번호:
- TMS320F28027DAS
- 제조업체:
- Texas Instruments
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Texas Instruments | |
| Product Type | Microcontroller | |
| Package Type | TSSOP | |
| Mount Type | Surface | |
| Pin Count | 38 | |
| Device Core | C28x | |
| Data Bus Width | 32bit | |
| Program Memory Size | 16kB | |
| Maximum Clock Frequency | 60MHz | |
| RAM Size | 12kB | |
| Maximum Supply Voltage | 1.89V | |
| Minimum Operating Temperature | -40°C | |
| Number of Programmable I/Os | 20 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS Compliant | |
| Length | 12.5mm | |
| Width | 6.2 mm | |
| Height | 1.15mm | |
| Minimum Supply Voltage | 1.71V | |
| Program Memory Type | FLASH | |
| Number of Timers | 3 | |
| ADCs | 13 bit | |
| Instruction Set Architecture | Harvard | |
| Automotive Standard | AEC-Q100 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Texas Instruments | ||
Product Type Microcontroller | ||
Package Type TSSOP | ||
Mount Type Surface | ||
Pin Count 38 | ||
Device Core C28x | ||
Data Bus Width 32bit | ||
Program Memory Size 16kB | ||
Maximum Clock Frequency 60MHz | ||
RAM Size 12kB | ||
Maximum Supply Voltage 1.89V | ||
Minimum Operating Temperature -40°C | ||
Number of Programmable I/Os 20 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS Compliant | ||
Length 12.5mm | ||
Width 6.2 mm | ||
Height 1.15mm | ||
Minimum Supply Voltage 1.71V | ||
Program Memory Type FLASH | ||
Number of Timers 3 | ||
ADCs 13 bit | ||
Instruction Set Architecture Harvard | ||
Automotive Standard AEC-Q100 | ||
The Texas Instruments microcontroller of F2802x family provides the power of the C28x core coupled with highly integrated control peripherals in low pin count devices. This family is code compatible with previous C28x based code and also provides a high level of analog integration. An internal voltage regulator allows for single rail operation. Enhancements have been made to the HRPWM to allow for dual edge control.
High efficiency 32 bit CPU
Low cost for both device and system
Peripheral interrupt expansion
Code security module
Advanced emulation features
Serial port peripherals
