STMicroelectronics ARM Cortex A7, STM32MP1 Microcontroller, 1 GHz, 168kB SRAM, 289-Pin TFBGA
- RS 제품 번호:
- 261-5585
- 제조사 부품 번호:
- STM32MP135AAG3
- 제조업체:
- STMicroelectronics

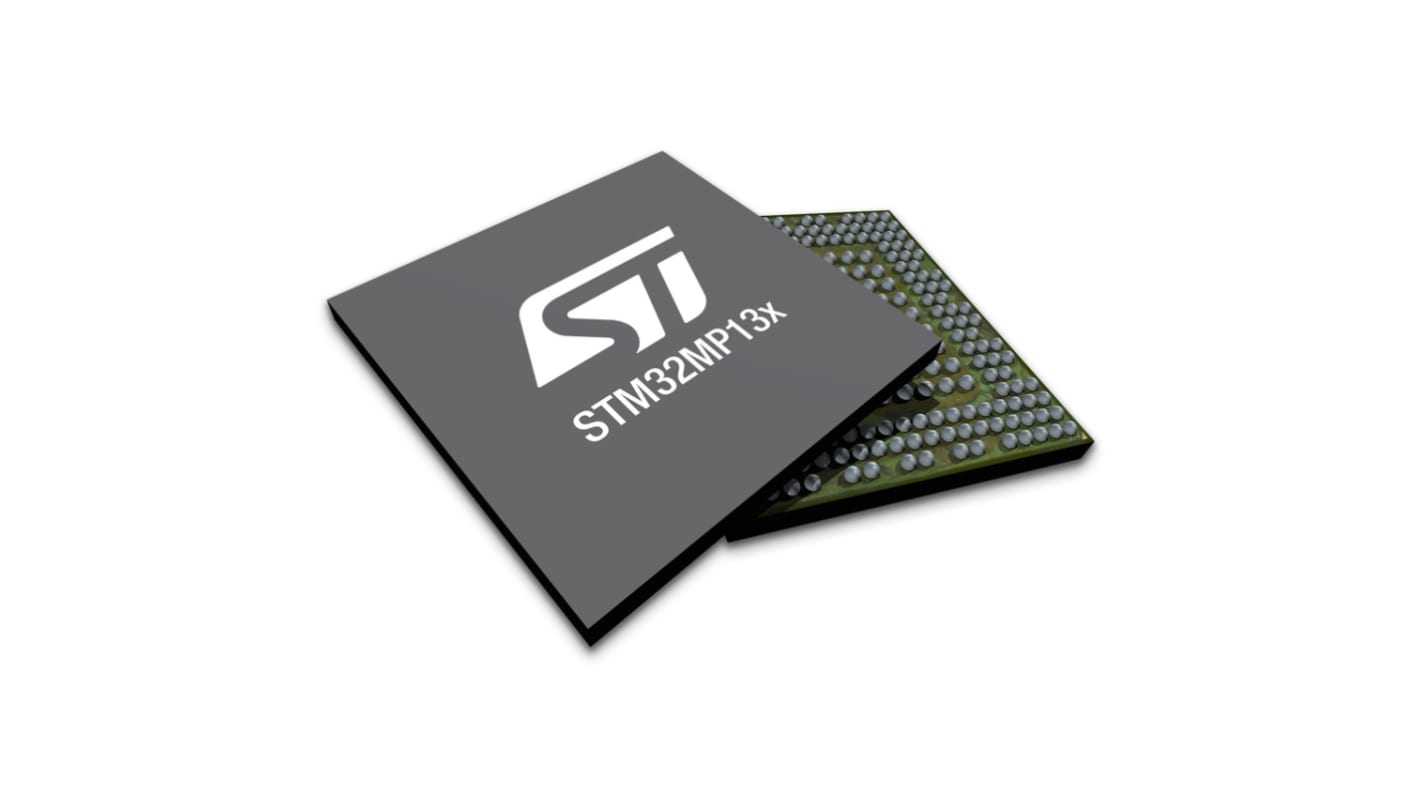

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tray of 260 units)*
₩2,534,916.80
일시적 품절
- 2026년 12월 21일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 260 - 260 | ₩9,749.68 | ₩2,535,112.32 |
| 520 - 520 | ₩9,556.04 | ₩2,484,423.76 |
| 780 + | ₩9,364.28 | ₩2,434,712.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 261-5585
- 제조사 부품 번호:
- STM32MP135AAG3
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Microcontroller | |
| Series | STM32MP1 | |
| Package Type | TFBGA | |
| Mount Type | Surface | |
| Pin Count | 289 | |
| Device Core | ARM Cortex A7 | |
| Interface Type | Ethernet, CAN, USB, IIC, SPI, IIS, SDM, SAI | |
| Program Memory Size | 168kB | |
| Maximum Clock Frequency | 1GHz | |
| RAM Size | 168kB | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 9mm | |
| Width | 9 mm | |
| Number of Programmable I/Os | 135 | |
| Height | 1.7mm | |
| Standards/Approvals | RoHS | |
| Minimum Supply Voltage | 1.7V | |
| Number of Timers | 5 | |
| Program Memory Type | SRAM | |
| Automotive Standard | No | |
| Instruction Set Architecture | ARM | |
| ADCs | 2 x 12 Bit | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Microcontroller | ||
Series STM32MP1 | ||
Package Type TFBGA | ||
Mount Type Surface | ||
Pin Count 289 | ||
Device Core ARM Cortex A7 | ||
Interface Type Ethernet, CAN, USB, IIC, SPI, IIS, SDM, SAI | ||
Program Memory Size 168kB | ||
Maximum Clock Frequency 1GHz | ||
RAM Size 168kB | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 9mm | ||
Width 9 mm | ||
Number of Programmable I/Os 135 | ||
Height 1.7mm | ||
Standards/Approvals RoHS | ||
Minimum Supply Voltage 1.7V | ||
Number of Timers 5 | ||
Program Memory Type SRAM | ||
Automotive Standard No | ||
Instruction Set Architecture ARM | ||
ADCs 2 x 12 Bit | ||
- COO (Country of Origin):
- TW
The STMicroelectronics microcontroller devices are based on the high-performance Arm Cortex-A7 32-bit RISC core operating at up to 1 GHz. It Includes ST state-of-the-art patented technology.
External DDR memory up to 1 Gbyte
Internal temperature sensors
Dual Quad SPI memory interface
