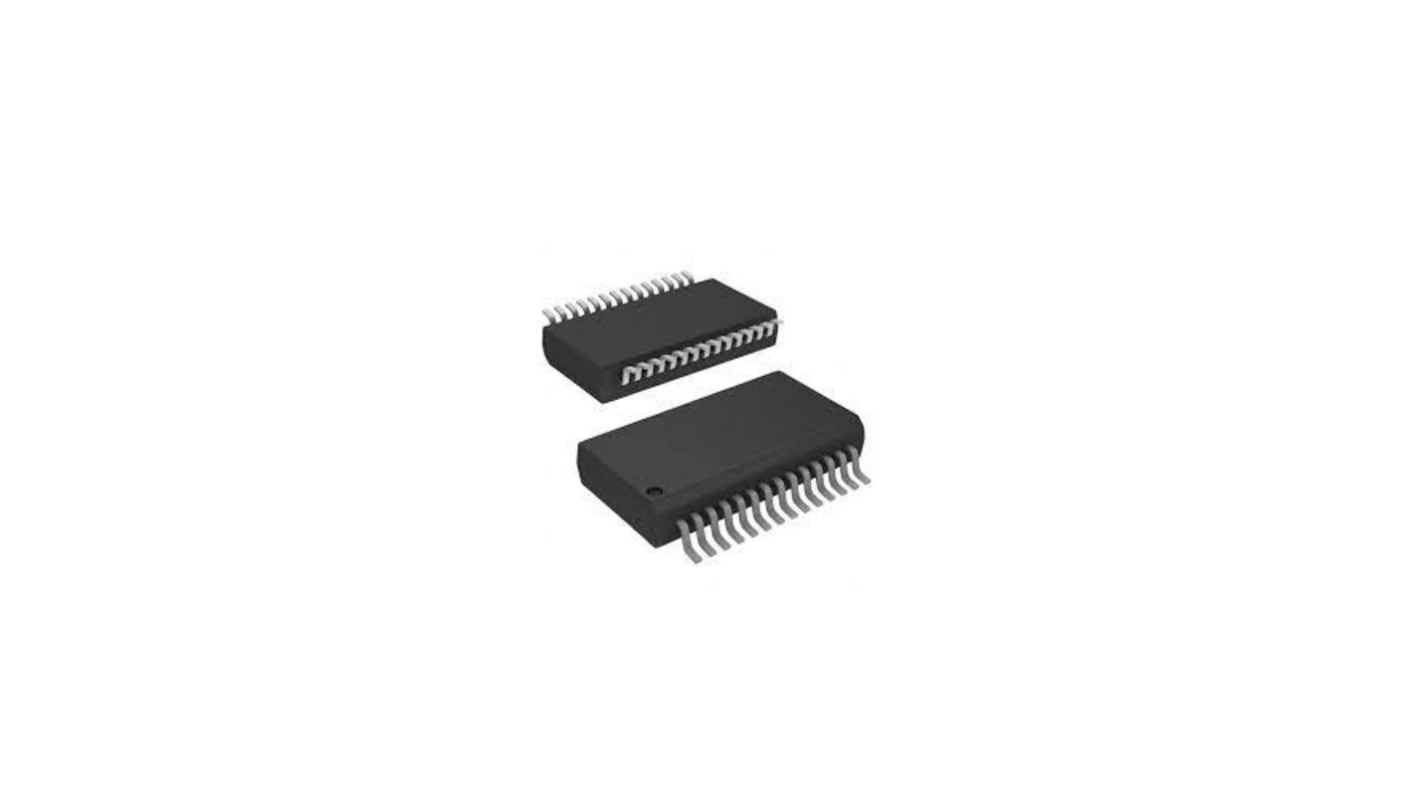

Microchip PIC18F26K42-I/SS PIC, PIC XLP 18K Microcontroller, 64 MHz, 64kB FLASH, 28-Pin SOP
- RS 제품 번호:
- 236-8924
- 제조사 부품 번호:
- PIC18F26K42-I/SS
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩15,980.00
재고있음
- 추가로 2025년 12월 22일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 5 | ₩3,196.00 | ₩15,980.00 |
| 10 - 20 | ₩3,132.08 | ₩15,660.40 |
| 25 - 90 | ₩3,068.16 | ₩15,340.80 |
| 95 + | ₩3,008.00 | ₩15,040.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 236-8924
- 제조사 부품 번호:
- PIC18F26K42-I/SS
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | Microcontroller | |
| Series | PIC XLP 18K | |
| Package Type | SOP | |
| Mount Type | Surface | |
| Pin Count | 28 | |
| Device Core | PIC | |
| Program Memory Size | 64kB | |
| Maximum Clock Frequency | 64MHz | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Number of Programmable I/Os | 25 | |
| DACs | 1 x 5 Bit | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | REACH, RoHS3 | |
| Minimum Supply Voltage | 2.3V | |
| Automotive Standard | No | |
| ADCs | 24 x 12 Bit | |
| Program Memory Type | FLASH | |
| Instruction Set Architecture | RISC | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type Microcontroller | ||
Series PIC XLP 18K | ||
Package Type SOP | ||
Mount Type Surface | ||
Pin Count 28 | ||
Device Core PIC | ||
Program Memory Size 64kB | ||
Maximum Clock Frequency 64MHz | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Number of Programmable I/Os 25 | ||
DACs 1 x 5 Bit | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals REACH, RoHS3 | ||
Minimum Supply Voltage 2.3V | ||
Automotive Standard No | ||
ADCs 24 x 12 Bit | ||
Program Memory Type FLASH | ||
Instruction Set Architecture RISC | ||
The Microchip microcontroller feature a 12-bit ADC with Computation (ADC2) automating Capacitive Voltage Divider (CVD) techniques for Advanced touch sensing, averaging, filtering, oversampling and threshold comparison, Temperature Sensor, Vectored Interrupt Controller with fixed latency for handling interrupts, System Bus Arbiter, Direct Memory Access capabilities, UART with support for Asynchronous, DMX, DALI and LIN transmissions, SPI, I2C, memory features like Memory Access Partition (MAP) to support customers in data protection and bootloader applications, and Device Information Area (DIA) which stores factory calibration values to help improve temperature sensor accuracy.
C Compiler optimized RISC architecture
Up to 64 MHz clock input
62.5 ns minimum instruction cycle
Two direct memory access (DMA) controllers
User-programmable source and destination sizes
Hardware and software-triggered data transfers
Vectored interrupt capability
Selectable high/low priority
Fixed interrupt latency
Programmable Vector table base address
31-Level deep hardware stack
Low current power on reset (POR)
Configurable power up timer (PWRT)
Brown out reset (BOR)
low power BOR (LPBOR) Option
Windowed watchdog timer (WWDT)
