Renesas Electronics, 32 bit RX, RX23W Microcontroller, 54 MHz, 64kB FLASH, 83-Pin LGA

RS 제품 번호:: 217-7027
제조사 부품 번호:: R5F523W8CDLN#U0
제조업체:: Renesas Electronics

Renesas Electronics, 32 bit RX, RX23W Microcontroller, 54 MHz, 64kB FLASH, 83-Pin LGA

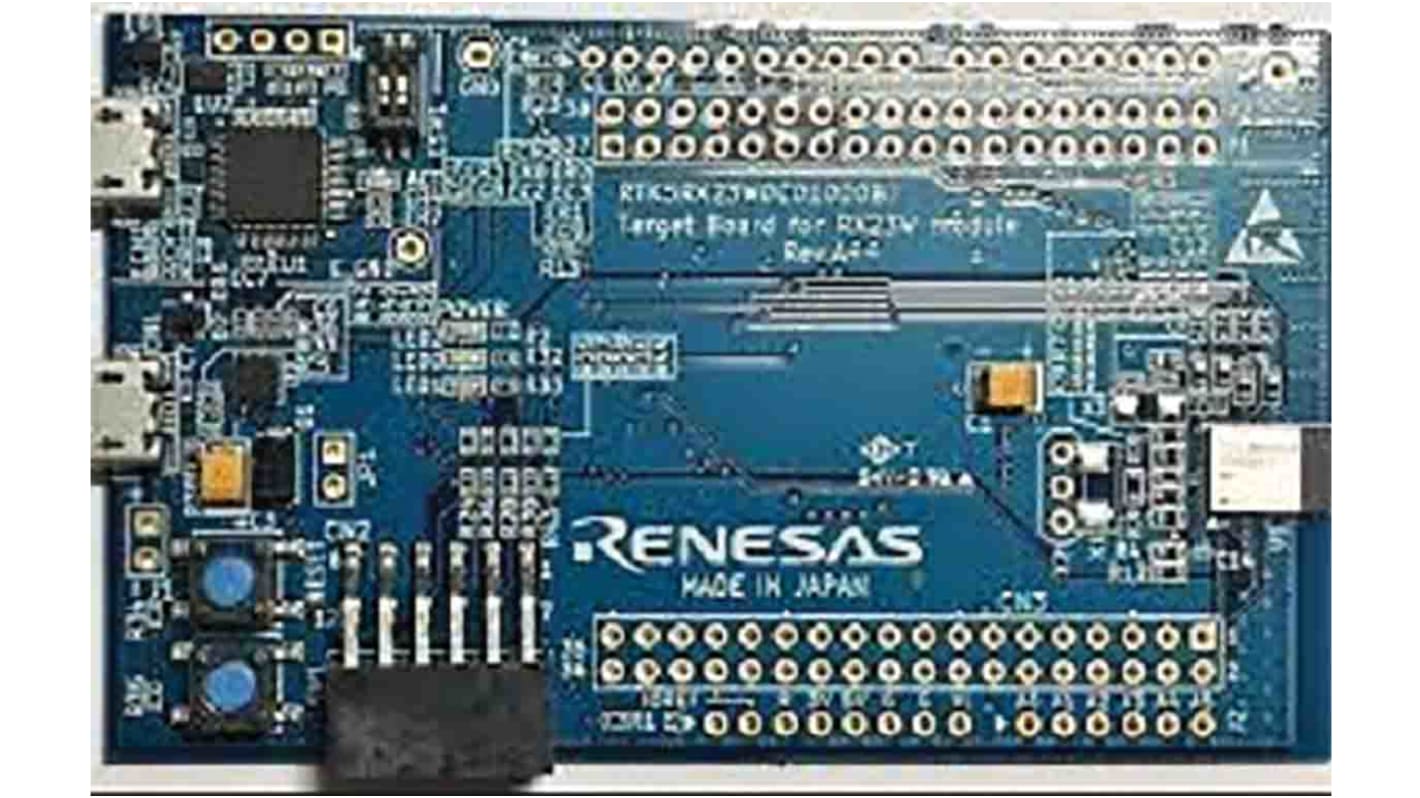

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 tray of 260 units)*

₩4,629,424.80

마지막 RS 재고

최종적인 260 개 unit(s)이 배송 준비 됨

수량	한팩당	Per Tray*
260 - 260	₩17,805.48	₩4,629,375.92
520 - 780	₩17,450.16	₩4,536,797.20
1040 +	₩17,100.48	₩4,446,027.04

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 217-7027
제조사 부품 번호:: R5F523W8CDLN#U0
제조업체:: Renesas Electronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Renesas Electronics
	Product Type	Microcontroller
	Series	RX23W
	Package Type	LGA
	Mount Type	Surface
	Pin Count	83
	Device Core	RX
	Data Bus Width	32bit
	Program Memory Size	64kB
	Maximum Clock Frequency	54MHz
	RAM Size	64kB
	Maximum Supply Voltage	3.6V
	Analogue Comparators	2
	Maximum Power Dissipation Pd	350mW
	DACs	1 x 8 Bit
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Length	9.5mm
	Width	6.1 mm
	Height	1.009mm
	Minimum Supply Voltage	1.8V
	Number of Timers	1
	Automotive Standard	No
	ADCs	1 x 12 Bit
	Program Memory Type	FLASH
	Instruction Set Architecture	CISC

	모두 선택
	브랜드 Renesas Electronics
	Product Type Microcontroller
	Series RX23W
	Package Type LGA
	Mount Type Surface
	Pin Count 83
	Device Core RX
	Data Bus Width 32bit
	Program Memory Size 64kB
	Maximum Clock Frequency 54MHz
	RAM Size 64kB
	Maximum Supply Voltage 3.6V
	Analogue Comparators 2
	Maximum Power Dissipation Pd 350mW
	DACs 1 x 8 Bit
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Length 9.5mm
	Width 6.1 mm
	Height 1.009mm
	Minimum Supply Voltage 1.8V
	Number of Timers 1
	Automotive Standard No
	ADCs 1 x 12 Bit
	Program Memory Type FLASH
	Instruction Set Architecture CISC

R5F523W8CDLN#U0 - Datasheet

The Renesas Electronics RX23W microcontrollers incorporate security functions that are vital for Bluetooth 5.0 Low Energy (BLE) and IoT devices, as well as a wealth of peripheral functions such as touch keys, USB and CAN, enabling system control and wireless communication with devices using a single chip. RX23W MCUs have full function support for Bluetooth 5.0 Low Energy long range and mesh networking, and provide excellent reception performance.

USB 2.0 Host/Function/OTG x1ch

Full speed (12Mbps), low speed (1.5Mbps), isochronous transfer

BC (battery charger) support

CAN x1ch

ISO11898-1 compliant CAN, Max. 1Mbps transfer

SD Host I/F x1ch

SD memory/SDIO 1- or 4-bit SD bus support

Renesas Electronics, 32 bit RX, RX23W Microcontroller, 54 MHz, 64kB FLASH, 83-Pin LGA
