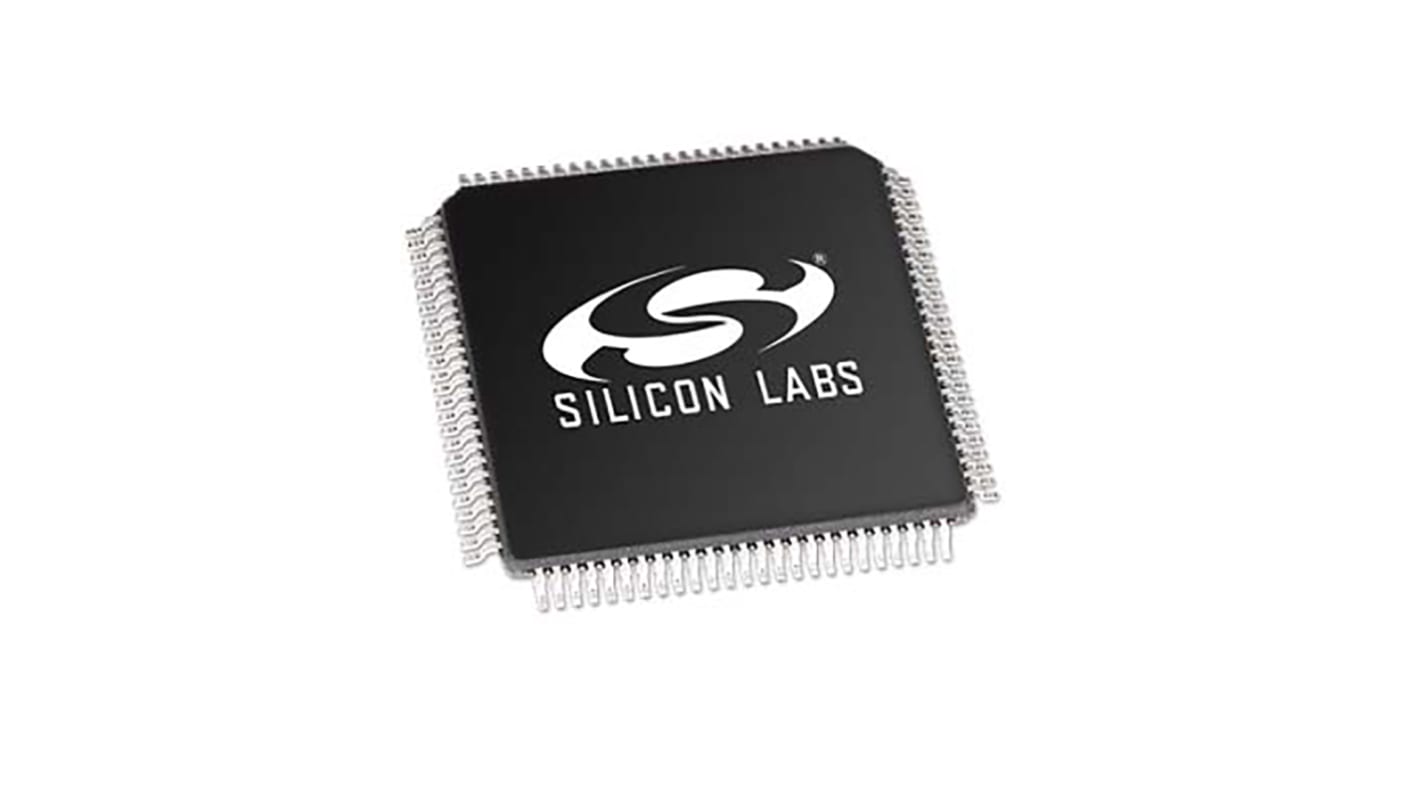

Silicon Labs EFM32WG280F256-B-QFP100, 32bit ARM Cortex M4 Microcontroller, EFM32, 48MHz, 256 kB Flash, 100-Pin LQFP
- RS 제품 번호:
- 198-4588
- 제조사 부품 번호:
- EFM32WG280F256-B-QFP100
- 제조업체:
- Silicon Labs
일시 품절-다음 입고 날짜는 04/03/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(90개가 1트레이안에)
₩12,969.523
| 수량 | 한팩당 | Per Tray* |
| 90 - 90 | ₩12,969.523 | ₩1,167,241.555 |
| 180 - 270 | ₩12,645.242 | ₩1,138,056.247 |
| 360 + | ₩12,450.328 | ₩1,120,545.062 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 198-4588
- 제조사 부품 번호:
- EFM32WG280F256-B-QFP100
- 제조업체:
- Silicon Labs
참조 문서
제정법과 컴플라이언스
제품 세부 사항
The Silicon Labs EFM32WG series 100 pin microcontroller offers unmatched performance and ultra-low power consumption in both active and sleep modes. ARM Cortex-M4 processor making it perfect for battery-powered systems and systems with high-performance, low-energy requirements.
It performs ultra-low power operation
0.65 μA current in Stop (EM3), with brown-out detection and RAM retention
63 μA/MHz in EM1
211 μA/MHz in Run mode (EM0)
It has fast wake-up time of 2 μs
Hardware cryptography (AES)
32 kB of RAM used
0.65 μA current in Stop (EM3), with brown-out detection and RAM retention
63 μA/MHz in EM1
211 μA/MHz in Run mode (EM0)
It has fast wake-up time of 2 μs
Hardware cryptography (AES)
32 kB of RAM used
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Family Name | EFM32 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 48MHz |
| Program Memory Type | Flash |
