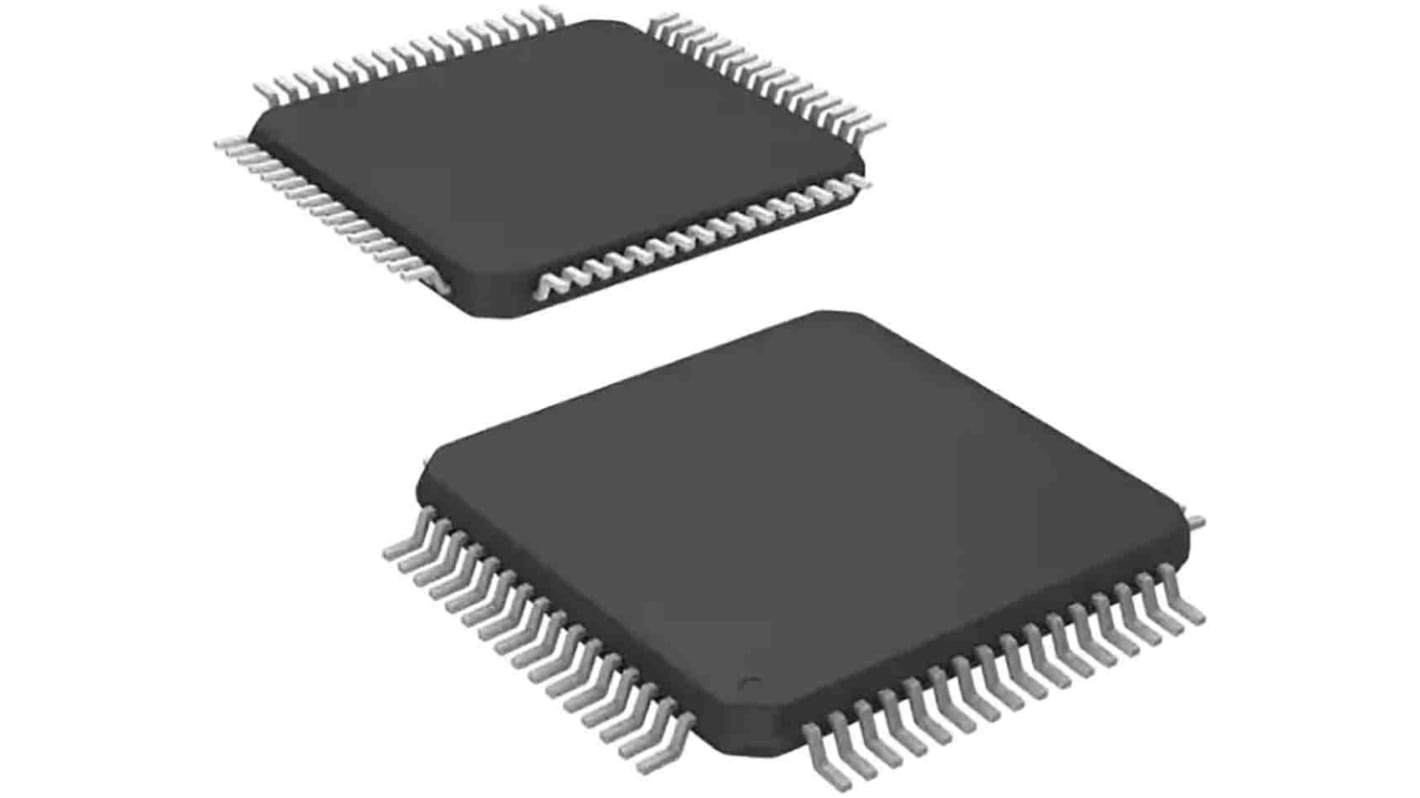

Renesas Electronics, 32bit RX, RX231 Microcontroller, 54MHz, 256 kB Flash, 64-Pin LFQFP

모든 Microcontrollers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 2 units)*

₩15,886.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 08일 부터 546 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
2 - 38₩7,943.00₩15,886.00
40 - 78₩7,764.40₩15,528.80
80 +₩7,604.60₩15,209.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
192-8105
제조사 부품 번호:
R5F52316ADFM#30
제조업체:
Renesas Electronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Renesas Electronics

Family Name

RX231

Package Type

LFQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

RX

Data Bus Width

32bit

Program Memory Size

256 kB

Maximum Frequency

54MHz

RAM Size

32 kB

USB Channels

1

Number of SPI Channels

7

Typical Operating Supply Voltage

1.8 → 5.5 V

Number of USART Channels

0

Number of I2C Channels

7

Number of CAN Channels

1

Number of UART Channels

6

Width

10.1mm

Program Memory Type

Flash

Maximum Number of Ethernet Channels

0

Dimensions

10.1 x 10.1 x 1.4mm

Minimum Operating Temperature

-40 °C

ADCs

12 x 12 bit

Maximum Operating Temperature

+85 °C

Pulse Width Modulation

1 (4 x 8 bit), 1 (4 x 16 bit), 2 (6 x 16 bit)

Number of ADC Units

1

Instruction Set Architecture

CISC Harvard

Height

1.4mm

Number of Ethernet Channels

0

Length

10.1mm

The RX231 Group of devices leverages an optimal combination of a 32bit RXv2 CPU core with improved DSP/FPU and low-power consumption technology to realize extreme power efficiency. High-performance digital filtering, floating-point operations and other processing can be performed even in environments with low current supply capacity. The RX231 Group implements the industry's top level communication security and encryption functions. It is equipped with as capacitive touch sensor capabilities that combine high sensitivity with a high level of noise tolerance, as well as SD host interface, USB and CAN communication functionality. These products are suitable for applications in industrial, home appliance, healthcare, smart meter, IoT and other fields.
The RX230 Group has more simplified configuration of RX231 by removing SD host interface,　USB and CAN, which is optimized for general purpose market equipment requiring 5v power supply support, external bus, or high DSP/EPU operational performance at low power consumption.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
