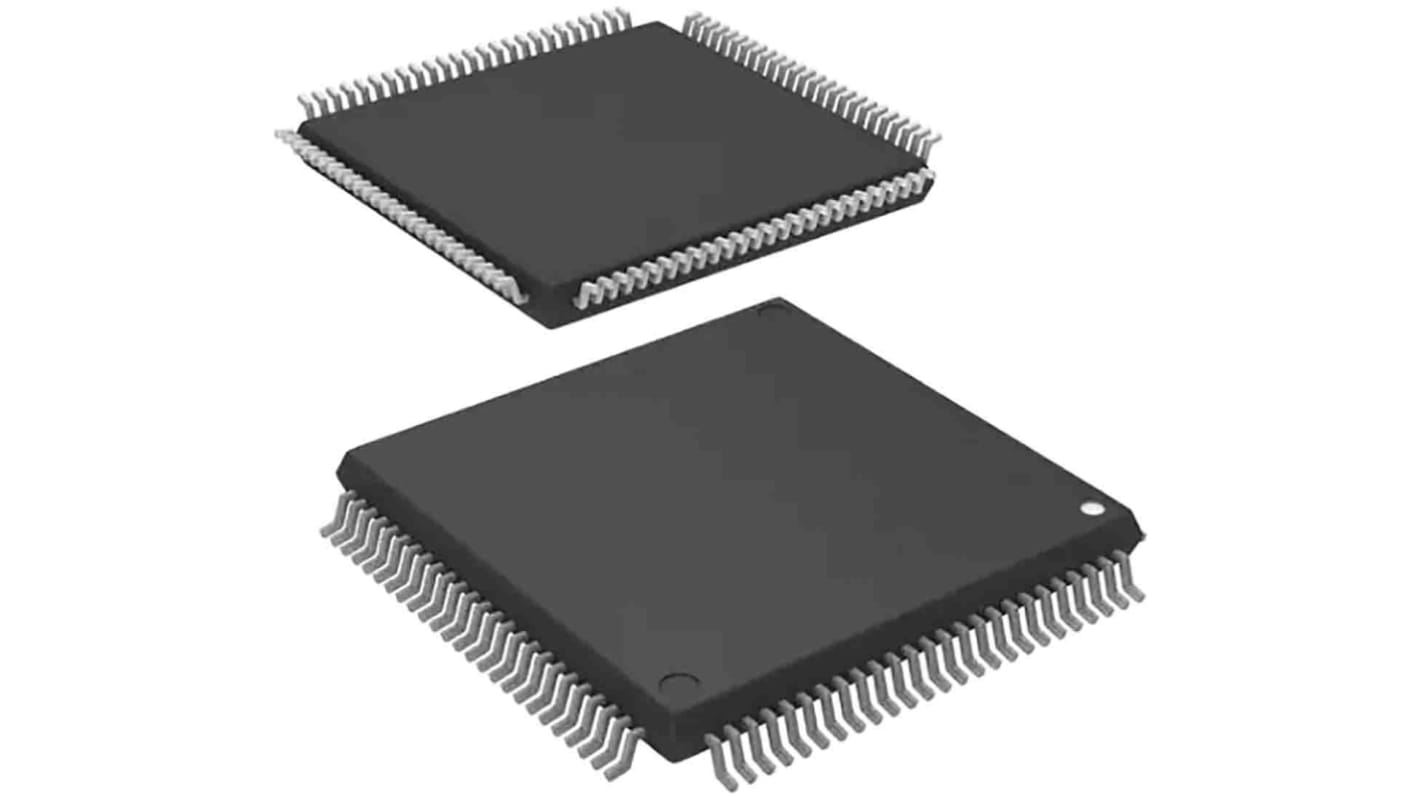

Renesas Electronics, 32bit RX, RX113 Microcontroller, 32MHz, 512 kB Flash, 100-Pin LFQFP
- RS 제품 번호:
- 192-8086P
- 제조사 부품 번호:
- R5F51138ADFP#3A
- 제조업체:
- Renesas Electronics
가격 개당(트레이에 담겨 공급됨)**
₩9,653.80
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 10 - 18 | ₩9,653.80 |
| 20 - 48 | ₩9,371.80 |
| 50 - 98 | ₩9,089.80 |
| 100 + | ₩8,817.20 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 192-8086P
- 제조사 부품 번호:
- R5F51138ADFP#3A
- 제조업체:
- Renesas Electronics
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Renesas Electronics | |
| Family Name | RX113 | |
| Package Type | LFQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | RX | |
| Data Bus Width | 32bit | |
| Program Memory Size | 512 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 64 kB | |
| USB Channels | 1 | |
| Number of SPI Channels | 9 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 0 | |
| Number of I2C Channels | 9 | |
| Typical Operating Supply Voltage | 1.8 → 3.6 V | |
| Number of UART Channels | 8 | |
| Length | 14.1mm | |
| Number of Ethernet Channels | 0 | |
| Height | 1.4mm | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Program Memory Type | Flash | |
| Instruction Set Architecture | CISC Harvard | |
| Dimensions | 14.1 x 14.1 x 1.4mm | |
| ADCs | 17 x 12 bit | |
| Width | 14.1mm | |
| Maximum Number of Ethernet Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Pulse Width Modulation | 1 (4 x 8 bit), 1 (4 x 16 bit), 1 (6 x 16 bit) | |
